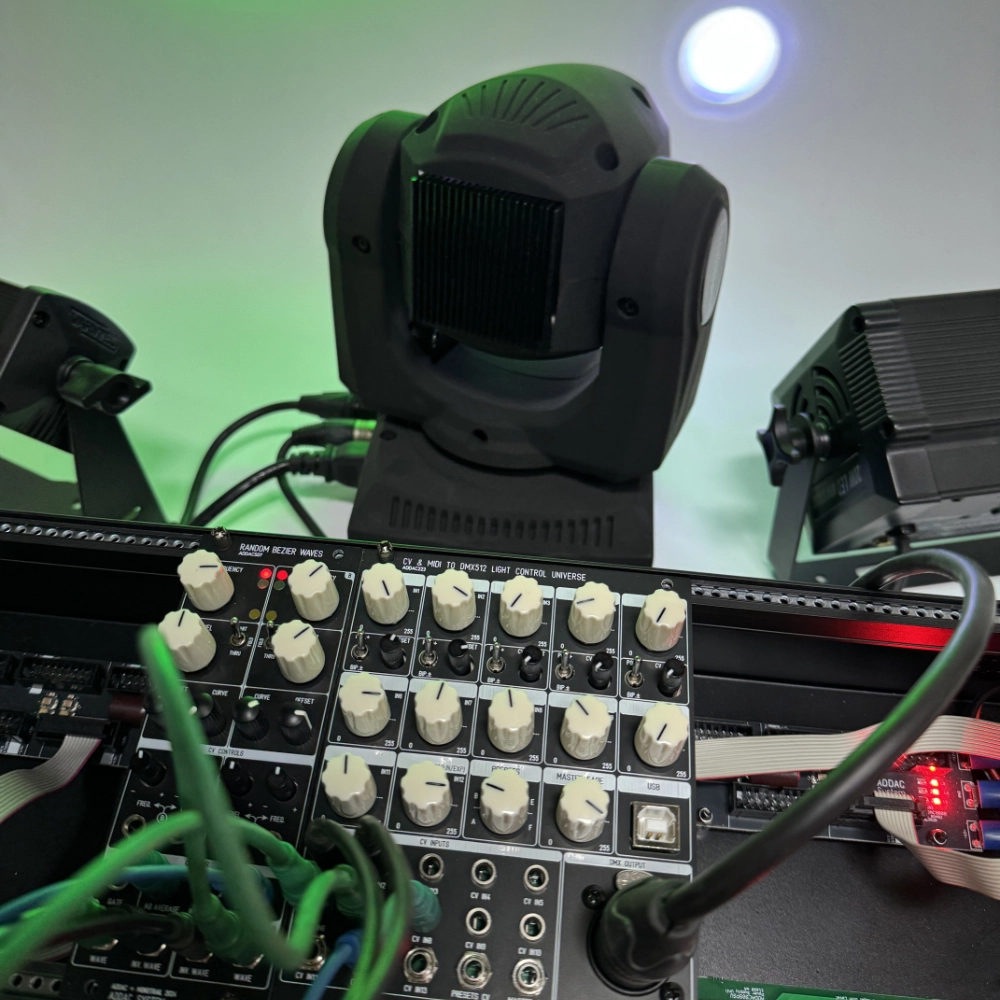

Here’s ADDAC’s updated solution to cover all DMX needs straight from your Eurorack frame in a simple fully configurable and versatile system.
Together with the ADDAC220 Dual Envelope Follower+ and ADDAC607 Crossover, it becomes quite easy to create a system for sound to light reaction using both audio amplitude and spectrum translation. Such a system features “no” latency when compared to a digital implementation as all amplitude detection and spectrum separation is done in the analog realm.
The 13 CV inputs can be assigned to any of the 512 DMX channels using the configuration webpage using Google Chrome.
There are 30 Slots for 30 different assigns each assigns defines a CV Input and a DMX channel. CV inputs can be assigned to different DMX channels
Features
- 13 CV INPUTS routable to any DMX Channel
- 5 with Attenuator & Offset knobs + positive/bipolar switch
- 7 with Attenuator knob
- 1 CV input only
- LOG/LIN/EXP control over the DMX output curve
- MASTER FADE control knob for full blackouts
- PRESETS control knob
- USB for configuration and MIDI to DMX
- XLR 3Pin for DMX output
- Browser configurable
- White areas in panel for user notation
Specifications
- Width: 20hp
- Depth: 45mm
- Power: +12V 80mA / -12V 80mA
