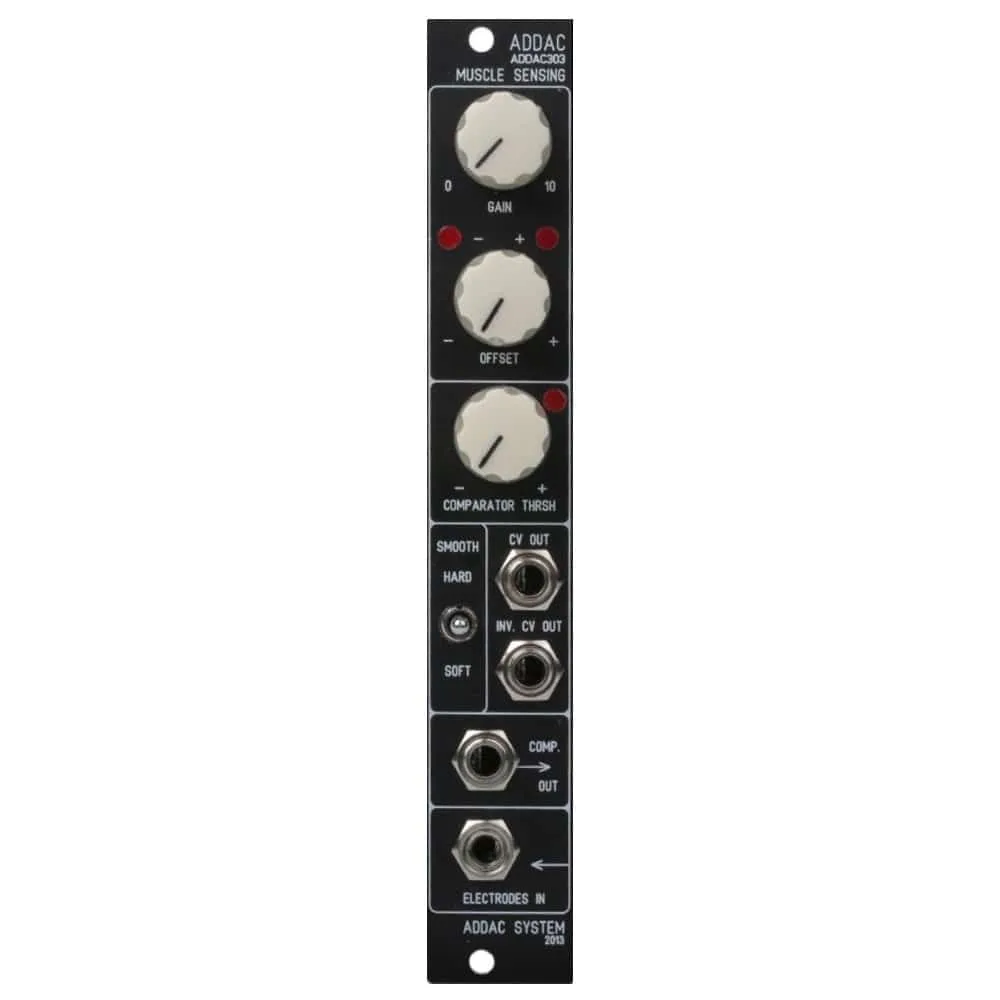

This module introduces a totally new interaction principle for the Eurorack format, using electrodes to sense body muscles tension.
You can stick them to your arm and clench your fist, to your leg and tap your tempo, to your band bass player or drummer… you name it. Please note colour may vary between red & black.
Features
- Gain knob adjusts the output’s voltage range (±10V)
- Offset adjusts initial range position (±10V)
- Smooth switch allows hard and soft smoothing of the raw sensor output.
- Positive and inverted CV Outputs
- Comparator Gate out with Threshold knob
- Module ships with electrodes. Pads are reusable and replaceable.
Specifications
Width: 4hp
Depth: 40mm
Power: 60 mA +12V, 60 mA -12V
Manufacturer product page here.
