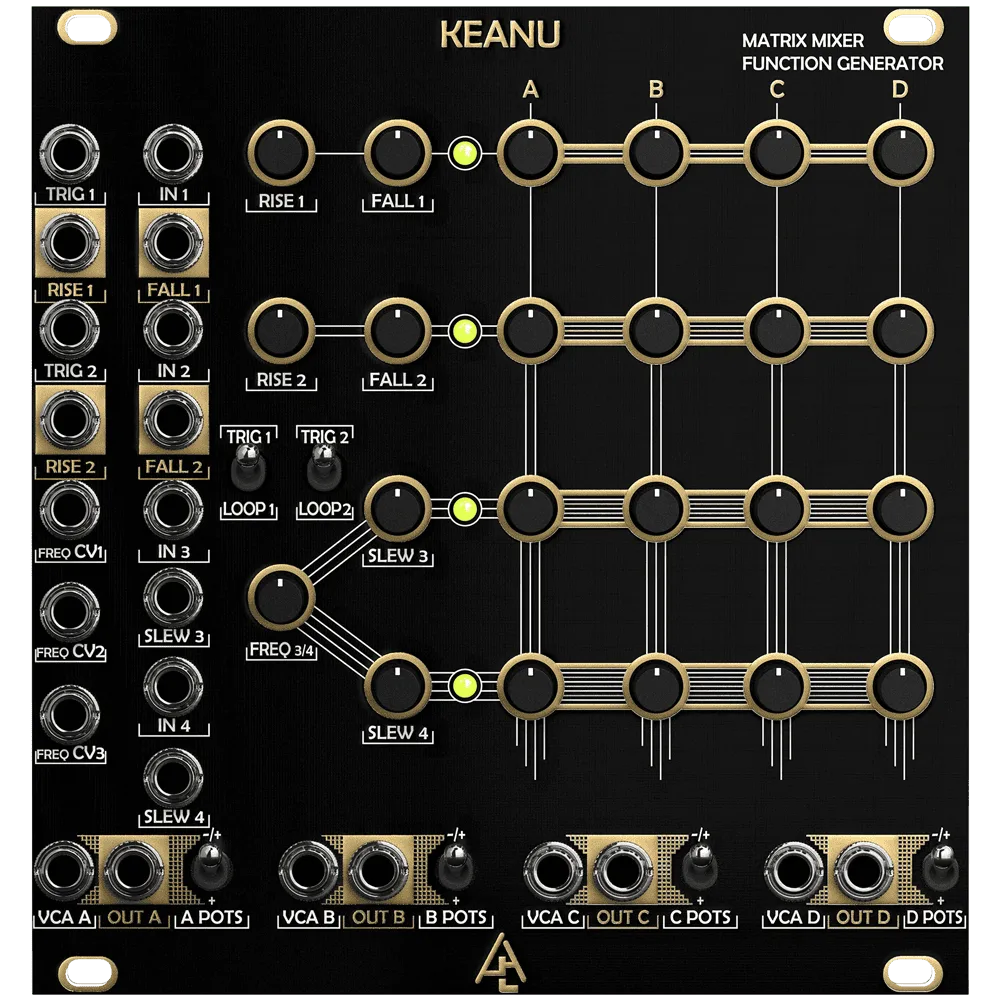

Keanu is a partnership with Tim Held and Podular Modcast. At its core, Keanu is a standard 4×4 matrix mixer and VCAs on each output and switch to choose between unipolar or bipolar controls. We have also added modulation sources normalled into each channel. So you get some great modulation variety, but can also mix in your external sources.
Channels 1 & 2 CVs are clockable looping function generators with controls for rise/fall lengths, and equipped with end of rise/fall trigger outputs.
Channels 3 & 4 are each a “meandering” voltage source, created by 3 LFOs that are all at different frequencies. There are 3 CV inputs (total) to control their individual rates. You can also add slew to each channel individually to change the oscillators from square to triangle, and this slew also applies to external voltages sent into their channel.
Specifications
- Width: 24hp
- Depth: 35mm
- Power: +12V 190mA / -12V 170mA
