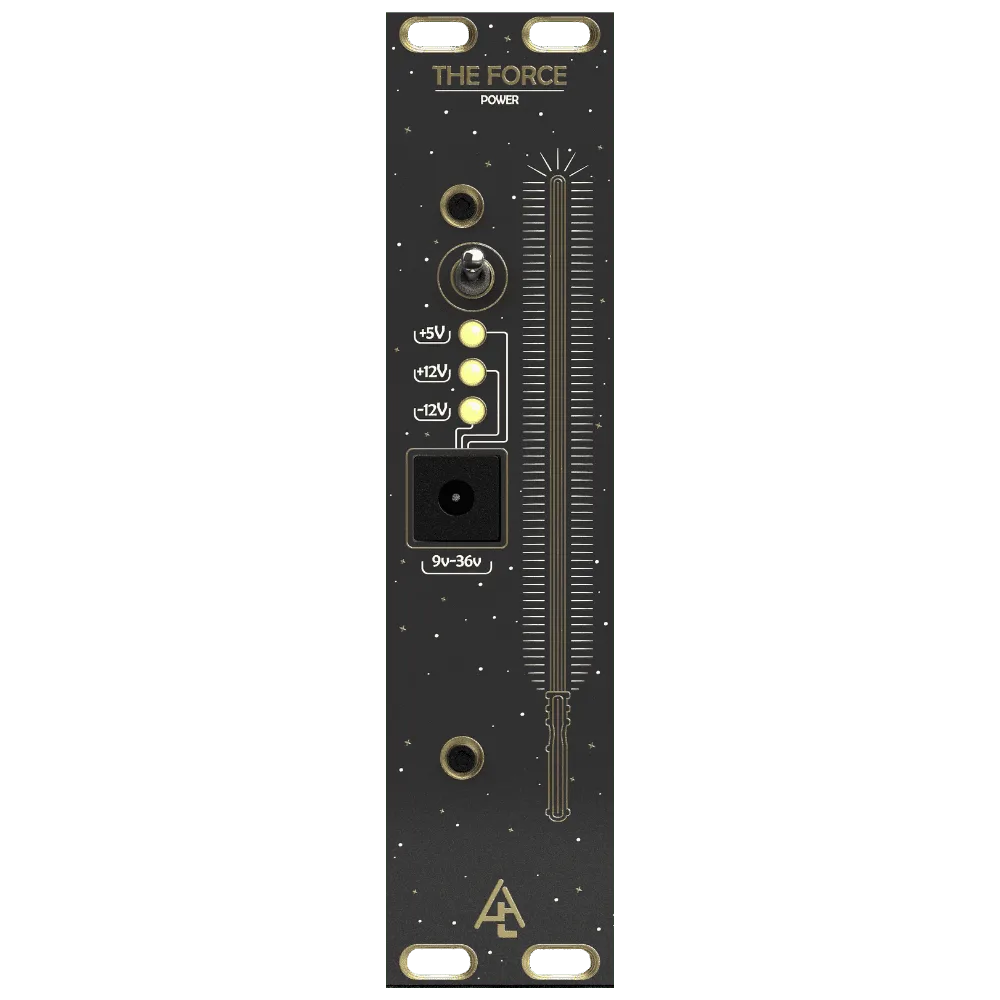

Rack power bringing 2.5A (2500mA) on both the +12V and -12V rails. There is a 5V rail, but it pulls from the +12V rail, up to 750mA. So only use the +5V rail if you have to.

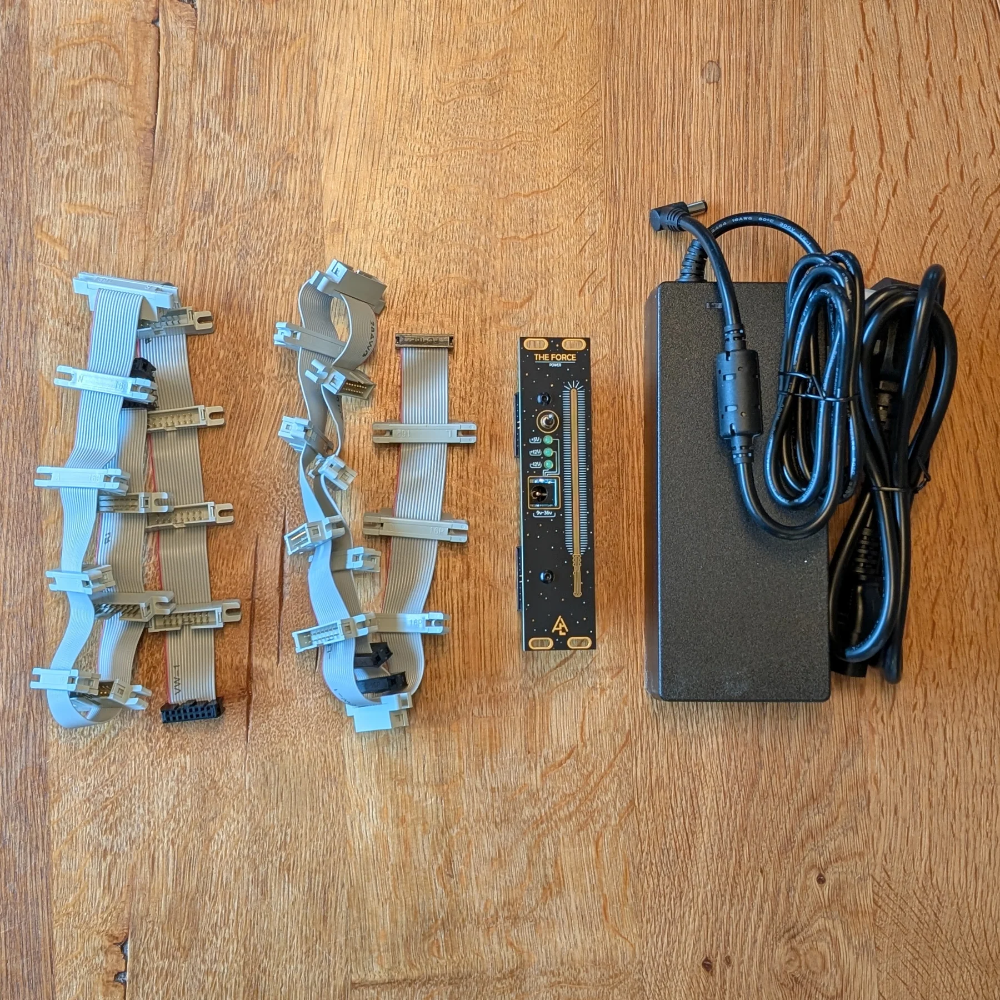

Comes with 12-position flying bus cable and wall power supply. The wall power supply is the same unit as we use on our cases, so there’s plenty of headroom and you don’t have to worry about memorising which amperage is for which.
This should be roughly enough for 2 rows of modules in a 104hp case. If you just need power for 1 row, check out our Warp Drive module.
Specifications
- Width: 6hp
- Depth: 35mm
