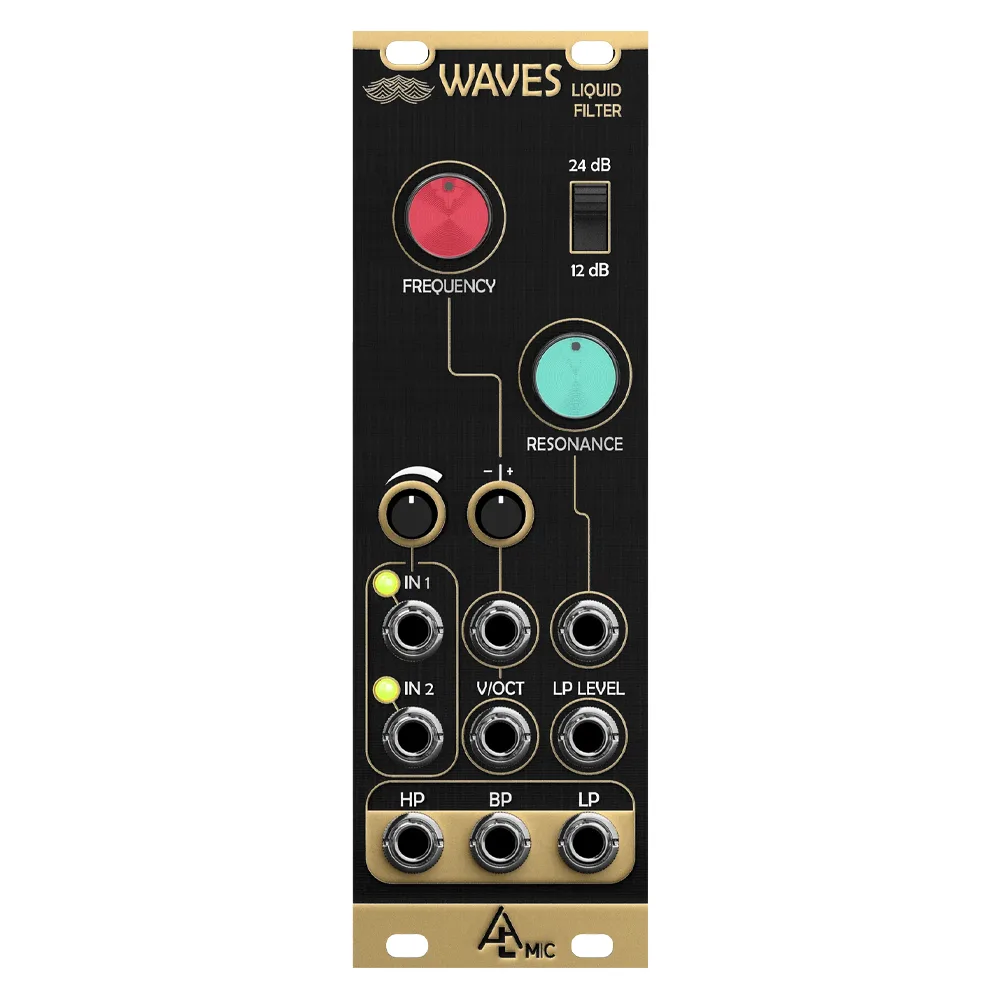

This is an exact hardware replica of the Mutable Instruments Ripples module. Heres the bio from the original design:
A multimode filter with high-pass, band-pass, and low-pass outputs, plus switchable slope control for the band-pass and low-pass outputs. The slope of the high-pass output varies with resonance. The low-pass output goes through an internal VCA – the perfect “end of subtractive chain” output!
All the CV inputs you need including un-attenuated frequency CV, calibrated for 1V/Oct tracking of the self-oscillation tone over 4 octaves, frequency CV with attenuverter and resonance CV.
Self oscillation starts at 4V. Control voltages above 5V are non-linearly compressed, for fine control of resonance overdrive.
VCA level for the low-pass output.
Specifications
- Width: 8hp
- Depth: 25mm
- Power: +12V 35mA / -12V 35mA
