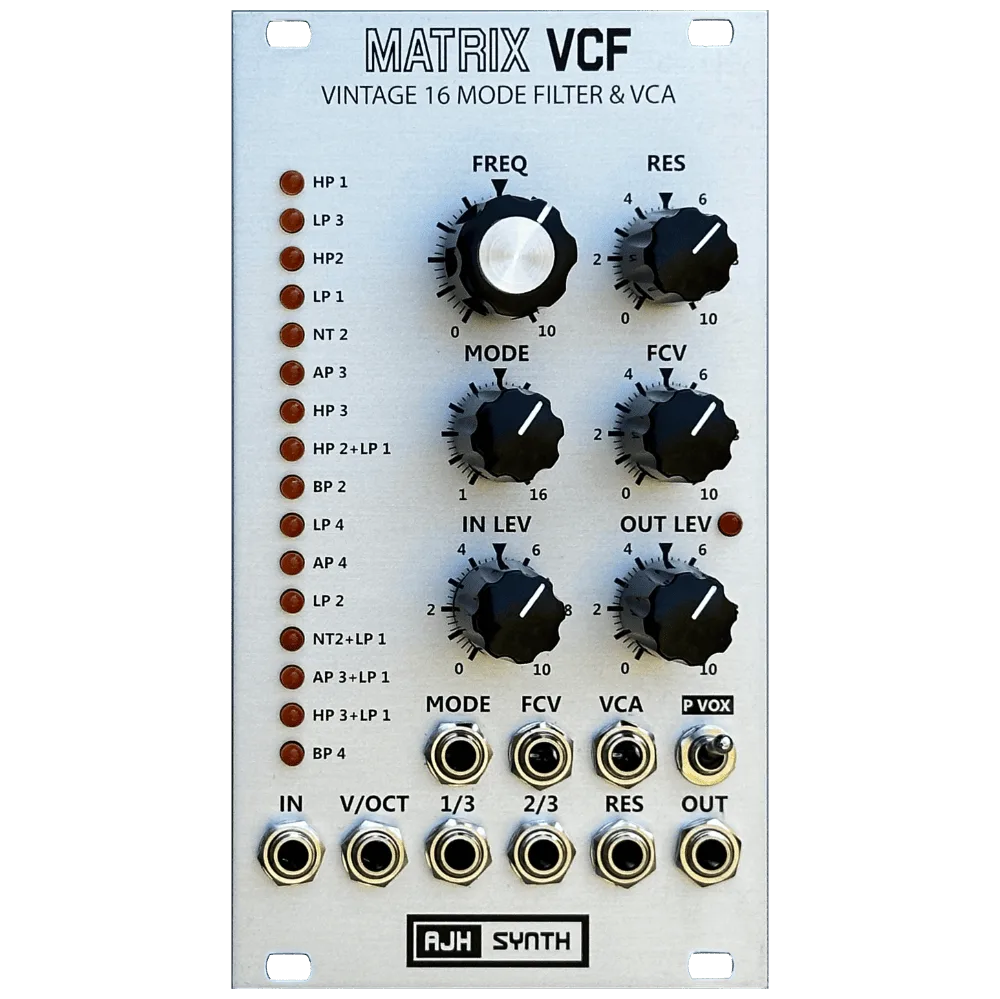

Presenting the new AJHSynth Matrix VCF – this may well be the most versatile Eurorack VCF ever.
This amazing multimode filter and VCA offers sixteen different filter types, and two different resonance models on each, totalling an incredible thirty two assorted resonant filters to choose from. We’ve also included manual and CV control of filter type selection, along with 16 LED’s that give a clear visual indication of which filter type is currently selected.
The filter core circuitry is based on that of the rare and highly sought after Oberheim Matrix 12 synthesiser, and of course has an all analogue signal path. The Matrix 12 VCF originally offered fifteen filter types, however we have expanded this to 16 with the addition of AP4, a full four pole all pass phaser mode.
We have added a unique P-Vox resonance distortion and overdrive circuit that changes the character of the resonance completely, and can force all of the filter modes into self oscillation. This effectively doubles the filter variants and hugely broadens what is already a very impressive sound pallet.
Other features include an inbuilt VCA with Input and Output Level controls, a Peak level LED, CV control of resonance, and of course the legendary AJHSynth build quality.
Specifications
- Width: 14hp
- Depth: 29mm
- Power: +12V 56mA / -12V 36mA
