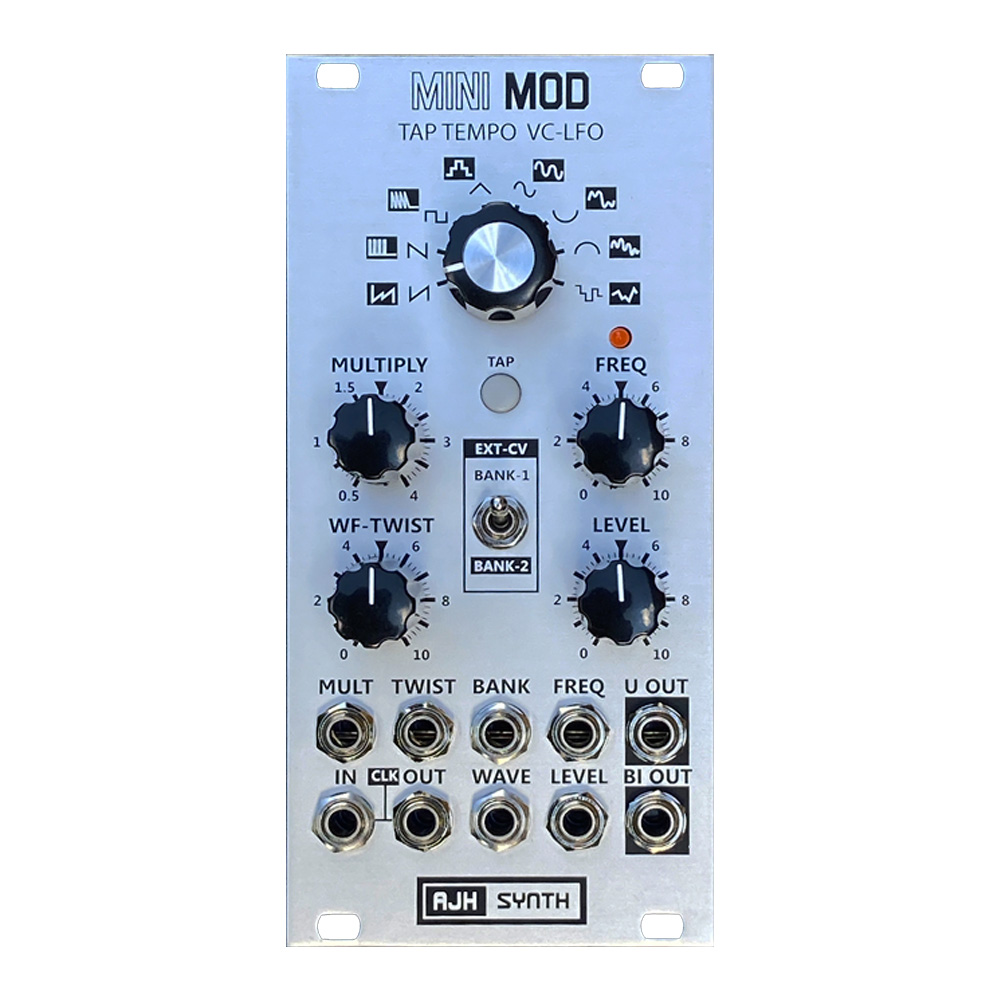

AJH Synth Tap Tempo VC-LFO Eurorack Module (Silver)

£239.00 inc. UK VAT

£199.17 ex. VAT

Available on back-order

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)





Product Info


The MiniMod Tap Tempo VC-LFO is a 12HP wide LFO with a huge range of useful features including Tap Tempo and internal/external control. Sixteen different waveforms are available over two banks and an eight rotary switch and Bank switch allow easy waveform selection. The unique Waveform Twist function allows PWM like duty cycle variation to be applied to fourteen of the waveforms.

CV controllable multiple function – with this we can double, rebel or quadruple or half the LFO rate, so that we can vary the modulation frequency but still keep it relative to the tempo of the track. Large modulation range from 0.05Hz (one cycle every 20 seconds) to 50Hz. Random stepped voltages (similar to S&H) and ask a very useful random sloped voltage outputs are also available.

Voltage control is implemented for all functions, including waveform selection and exponential control of modulation frequency. Bipolar and Unipolar outputs are available simultaneously and the built in VCA allows easy control of the modulation level of both outputs.

Specifications
Width: 12hp
Depth: 26mm
Power: 35mA @ +12V, 25mA @ -12V
Manufacturer product page here.
