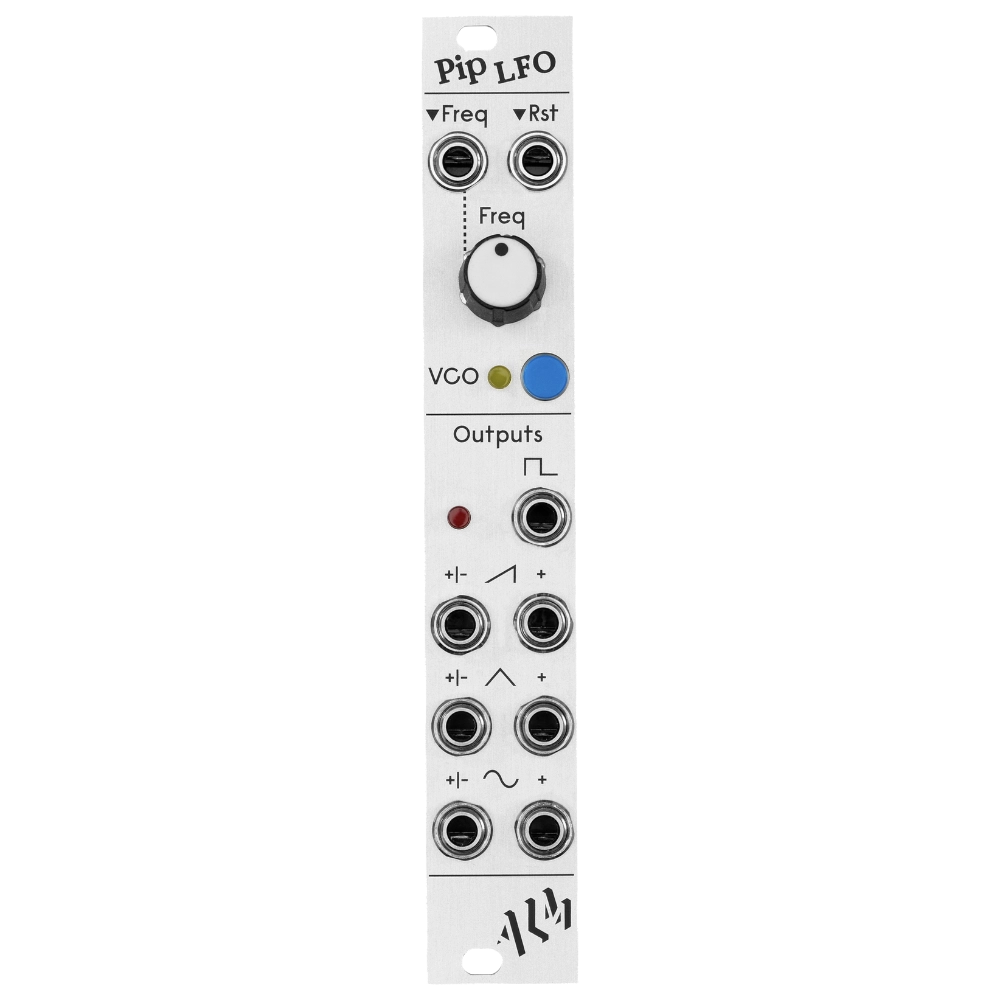

The Pip LFO is a compact 4HP all analogue low frequency oscillator with a wide frequency range, voltage control, numerous outputs, reset input and a VCO mode.
LFO speed is set via a manual control and voltage control input. There is a unipolar square wave output along with both bipolar and uni-polar triangle, saw and sine waveform outputs. When VCO mode is activated, the frequency jumps to audio range and will track V/Oct for approximately 5 octaves. A reset input allows the LFO waveform cycle to be reset and produces hard sync functionality in VCO mode.
Features
- Manual and CV control over LFO frequency
- Frequency range from approx 0.01Hz to 20Khz+
- Square, Triangle, Saw and Sine simultaneous waveform outputs
- Uni and Bipolar outputs
- Audible frequency ’VCO’ mode with V/Octave tracking
- LED frequency indication
- External reset/sync input
Specifications
- Width: 4hp
- Depth: 32mm
- Power: +12V 40mA / -12V 20mA
