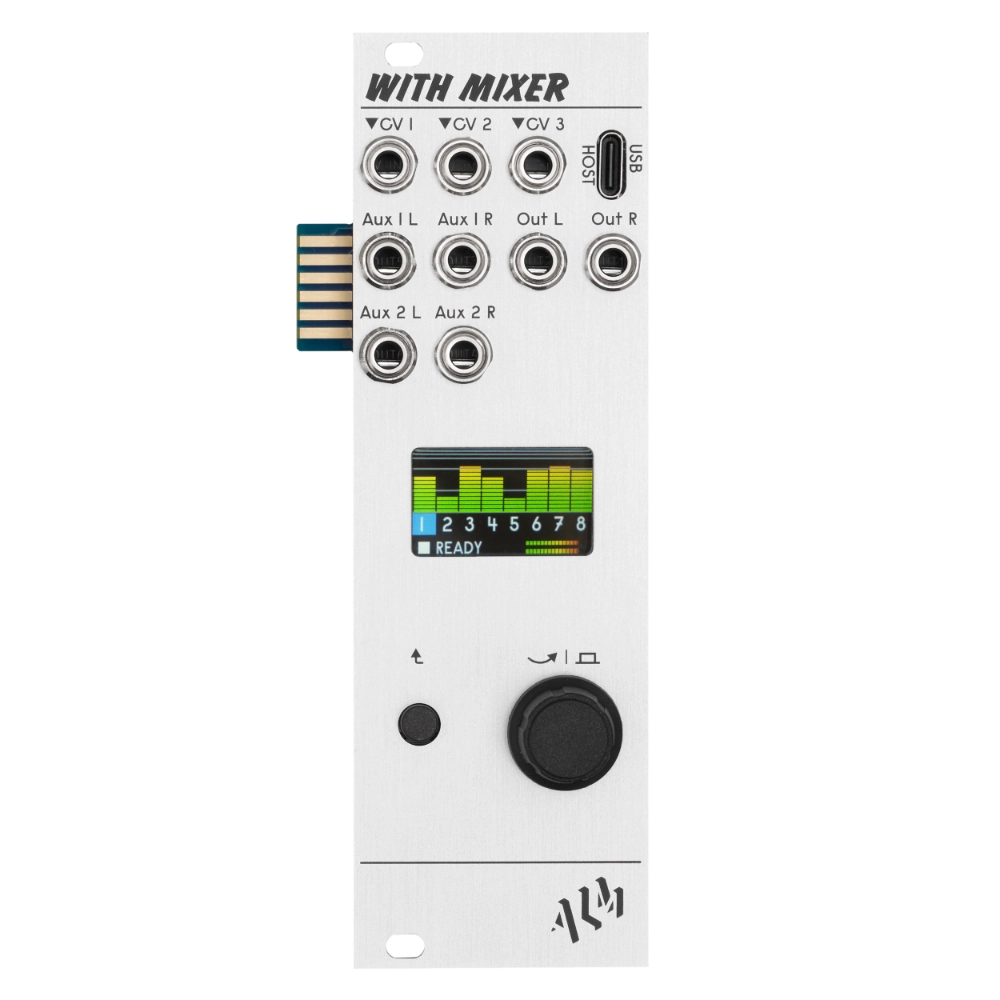

The With Mixer is a companion expander for the ALM Stem Ripper, adding a full-featured 8- channel stereo mixer with per-channel level and gain control, stereo panning, dual stereo aux sends, and mute and solo controls.
An easy-to-use graphical interface provides visual monitoring of all eight input channels and the stereo mix output, along with precise control of all mix parameters. Mix parameters can also be controlled via CV or an external MIDI controller connected to the powered USB host port, providing hands-on control and making the With Mixer well suited to live performance.

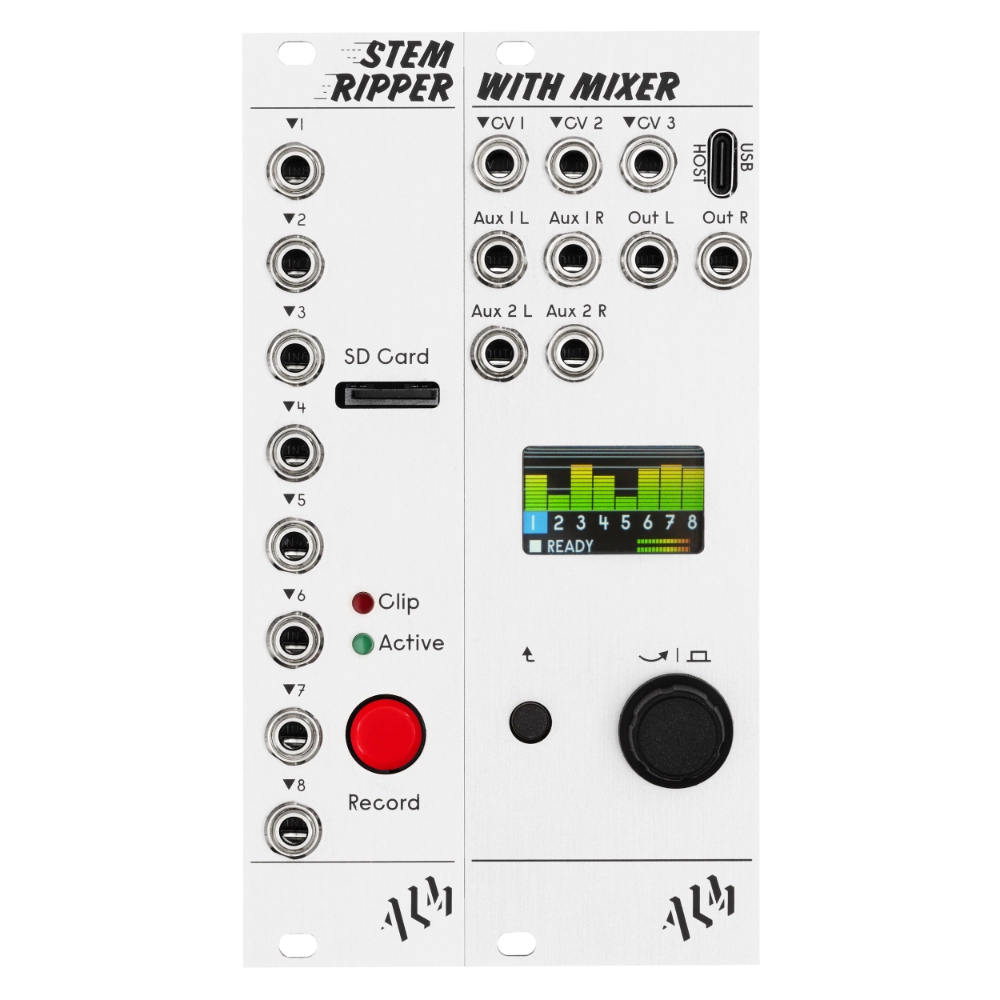

Complete mixer setups can be saved and recalled, while the display also shows the Stem Ripper’s recording status and elapsed time. The final stereo mix is available from the stereo output jacks and is simultaneously recorded to the Stem Ripper’s SD card alongside the individual, unprocessed input stems. Together, the Stem-Ripper-With-Mixer pair provides a modern multitrack stereo mixing and
recording setup for your Eurorack system in just 16HP.
Features
- Enhances the Stem Ripper adding 8 channel stereo mixing with aux sends, mix output and recording
- Full colour High res easy to use GUI
- USB Host MIDI controller support for more hands-on mixing
- Visual Stem Ripper status monitoring
- 3 assignable CV inputs with AXON expander support for up to 7 CV inputs
- Save and recall up to 8 full mixes
- All setting stored across power cycles
Power: +12V 45mA / -12V 35mA
