The Beepboop Envelope follower generates a level-dependent control voltage, which is useful for modulation and dynamic processes. The envelope follower makes it possible to patch your own compressors, auto-panning/filter and many other dynamic processes from any VCA or filter etc.

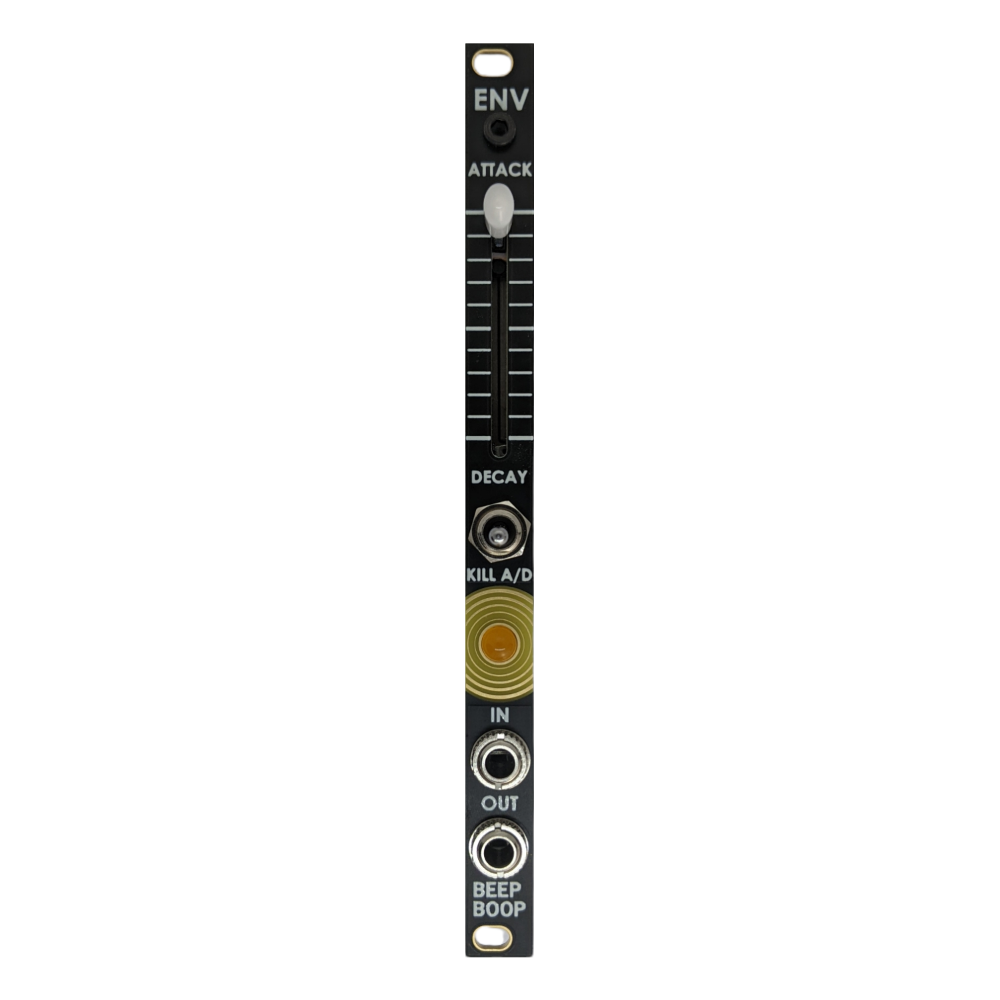

The module fits into a tiny 2hp package but in spite of its size is very flexible.
The slider simultaneously controls both the attack and decay of the envelope generated. When the slider is at the top position the attack is at full and the decay is at zero and vice versa.
The switch is used to “kill” either the Attack or decay. This makes it possible to just control either the Attack or decay.
As well as tracking audio and CV the module also works really well as a function generator when used with triggers and gates.
Lovingly designed and built at BeepBoop Electronics workshop here in Bristol, UK. Includes a power ribbon, mounting screws and 1 year guarantee.
Specifications
Width: 2hp
Depth: 50mm
Power: +10mA / -10mA
