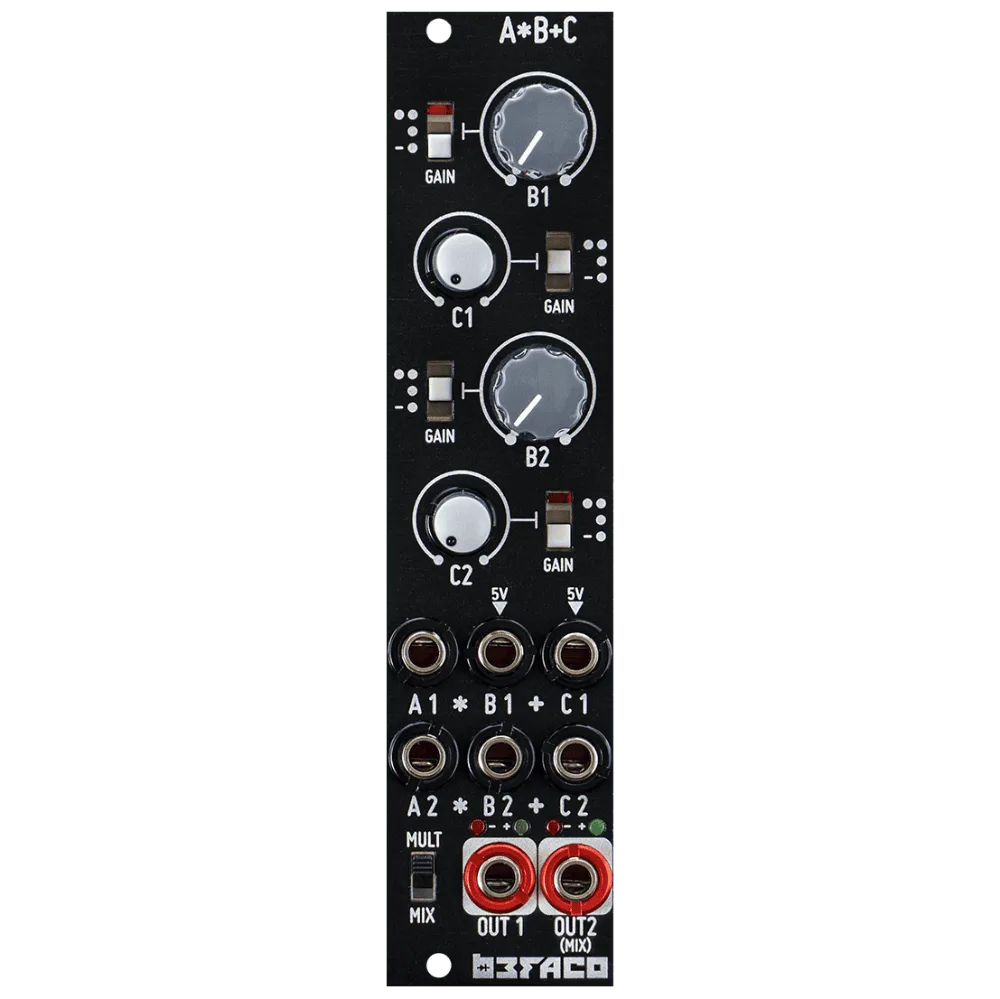

A*B+C is the ultimate utility for audio and control voltage. It performs multiplication, addition, and attenuation, providing a simple way to create complex signal interactions and timbres.
It is formed by two channels, each of which takes two input signals (A and B), multiplies them (A × B), and then adds a third signal (C) to the result.
Features
- DC Coupled
- Signal LED Indicators
- B and C INs normalled to 5V
Specifications
- Width: 6hp
- Depth: 25mm
- Power: +12V 50mA / -12V 50mA
