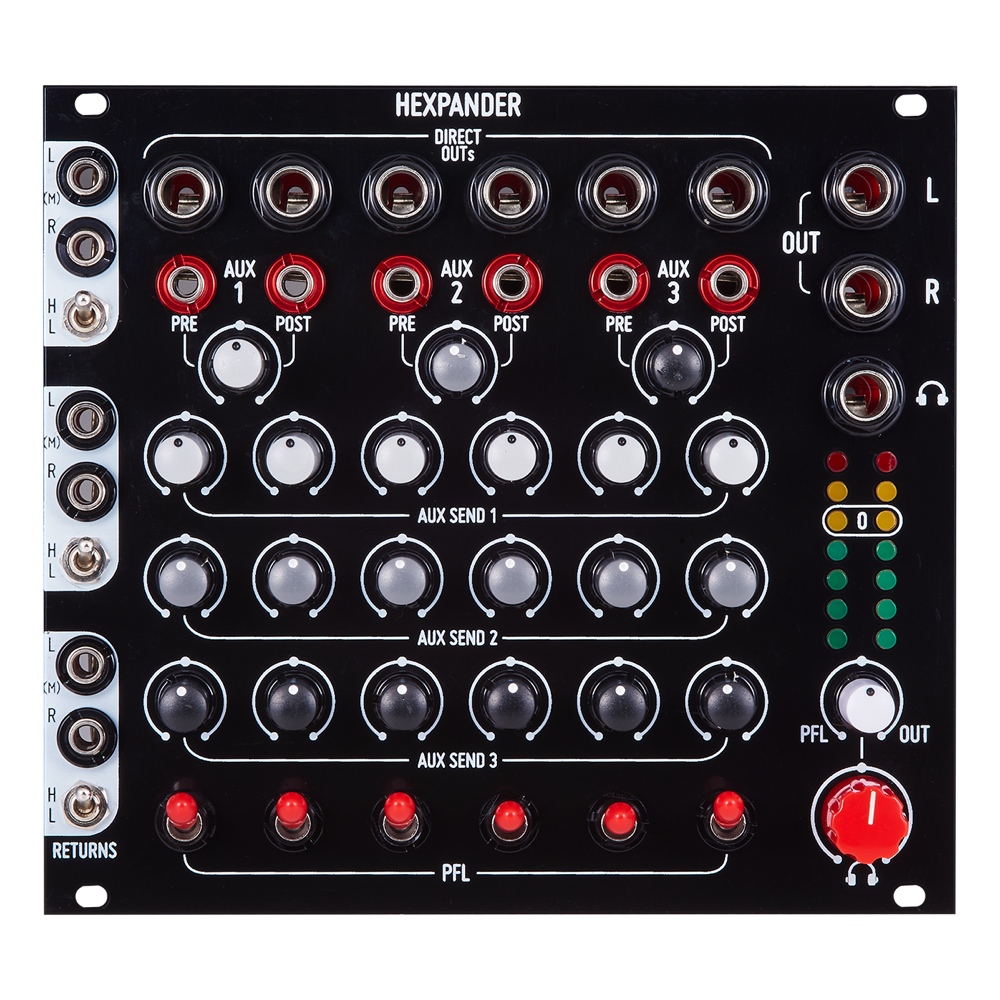

Hexpander adds great functionality to Hexmix module. Featuring Three aux send with stereo returns, individual outputs for each channel, complete PFL system and balanced output.
Hexpander is designed to be placed on top of Hexmix. Expanding Eurorack concept to 6U, allows every channel to be aligned as in traditional tabletop mixers.
Features
- Three auxiliar sends with stereo returns and individual controls per channel.
- Pre and Post Fader/EQ outputs.
- Selectable Line/Modular level at return inputs.
- Monitor section with PFL per channel.
- Individual PostEq output per channel.
- Master section with Headphones amp and balanced line outputs.
Specifications
Width: 28hp
Depth: 30mm
Power +90mA, -85mA
