* SOLD AS A PAIR *

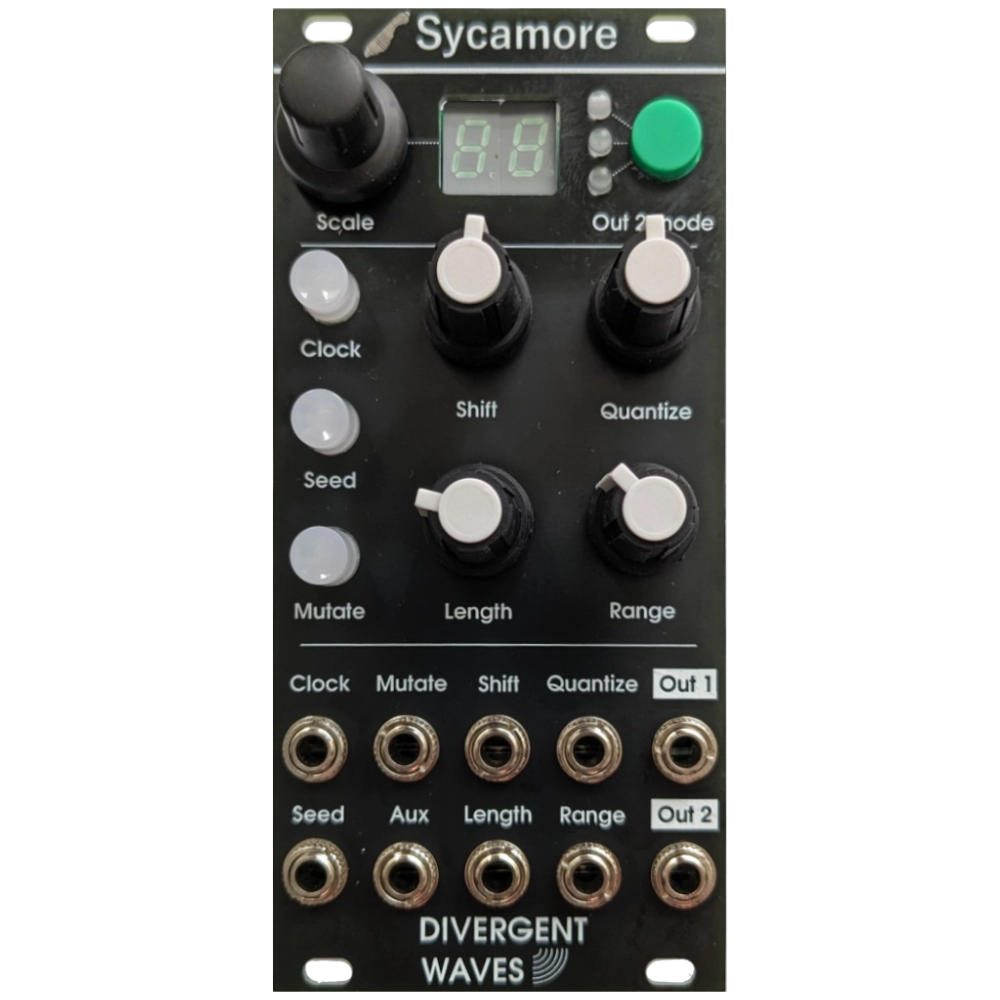

Sycamore is a random looping sequencer with quantisation and a wide range of scales. The quantised loop can be shifted, mutated, tweaked and otherwise fiddled with in a number of interesting ways.
With CV over almost all the internal parameters, Sycamore allows for tight control over the loop, while maintaining performability with comfortably spaced knobs.
Some advanced features are accessible through a one-layer menu to allow for more deep tweaking of harmonies, delay, and scale quantisation – however, Sycamore is perfectly usable without touching these at all!
Sycamore makes use of CircuitPython for its program code, allowing for easy modification and tweaking should you wish to do so. The module also features an i2c expansion port reserved for future use, or for you own hacking.
. . . .

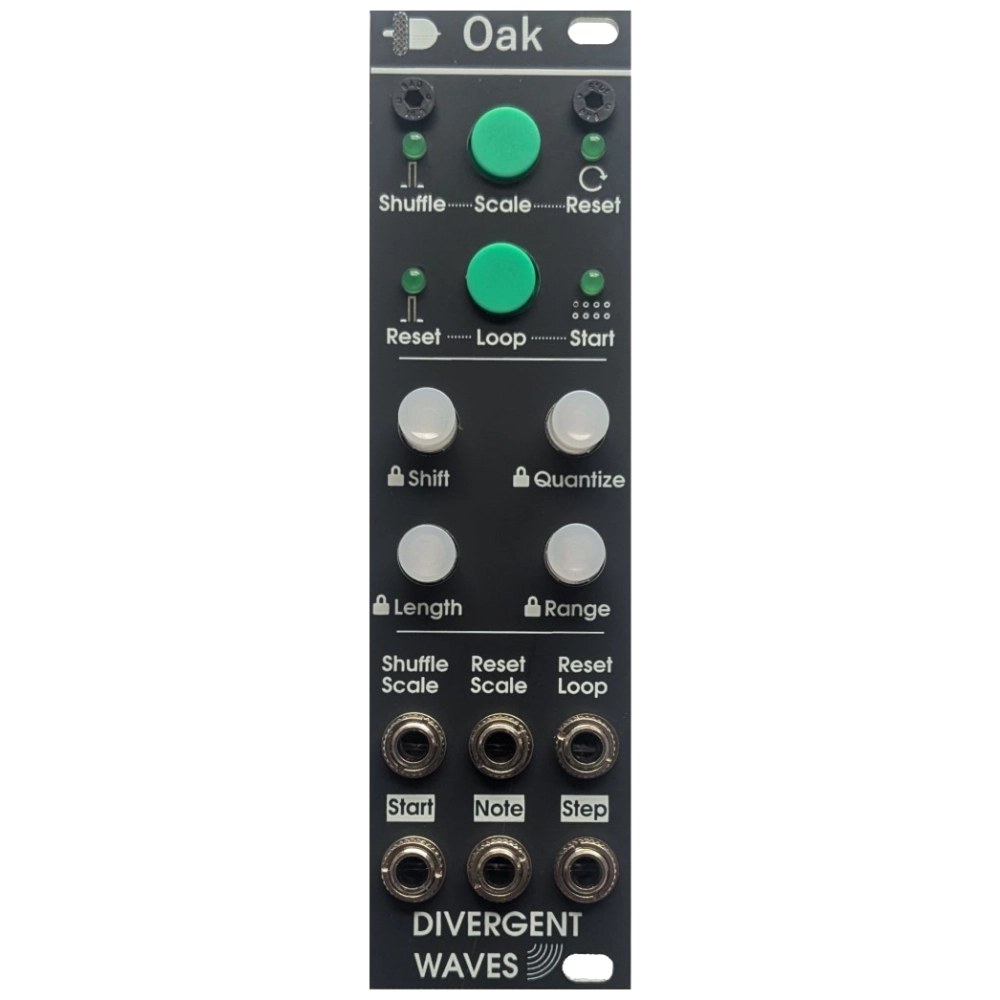

Oak is an expander to Sycamore which adds some useful features to the original module.
Trigger outputs on every step, every note change, and at the start of each loop allow for creative patches that stay in time with the melody. Scale shuffle, previously only accessible via a long press on Sycamore, expands Sycamore with interesting patch-programmable quantisation options.
The loop can be reset back to the first step after a trigger input or button press.
Sycamore’s four main parameters that control the loop – Shift, Quantize, Length, and Range – may also be locked at the press of a button.
Sycamore Specifications
- Width: 12hp
- Depth: 30mm
- Power: +12V 60mA / -12V 10mA
Oak Specifications
- Width: 7hp
- Depth: 30mm
- Power: +12V 45mA / -12V 0mA
