The A-100 Basic System 2 A-100BS2 is nearly identical with to the Basic System 1 but includes a MIDI-Interface. The modules A-150 (VC Switch) and A-162 (Trigger Delay) are replaced by the USB/Midi-to-CV/Gate/Sync interface A-190-4 and a 2HP blind plate. In addition one of the two standard LFOs A-145 is replaced by the variable waveform LFO A-146.
These modules are included in the Basic System 2:
- 2x Standard VCO A-110
- 2x ADSR A-140
- 1 x LFO A-145
- 1 x LFO A-146
- 1x Ring Modulator A-114
- 1 x Audio Divider A-115
- 1 x VC Waveform Processor A-116
- 1 x Noise/Random A-118
- 1 x VCF1 A-120 (24dB low pass 1)
- 1 x XP VCF A-106-6
- 1 x linear VCA A-130
- 1 x exponential VCA A-131
- 1 x linear Mixer A-138a
- 1 x exponential Mixer A-138b
- 1 x Dual S&H A-148
- 1 x Trigger Divider A-160
- 1 x Trigger Sequencer A-161
- 1 x Dual Slew Limiter A-170
- 1 x Multiple I A-180
- 1 x USB/Midi-to-CV/Gate/Sync-Interface A-190-4
- 30 patch cables (mixed)

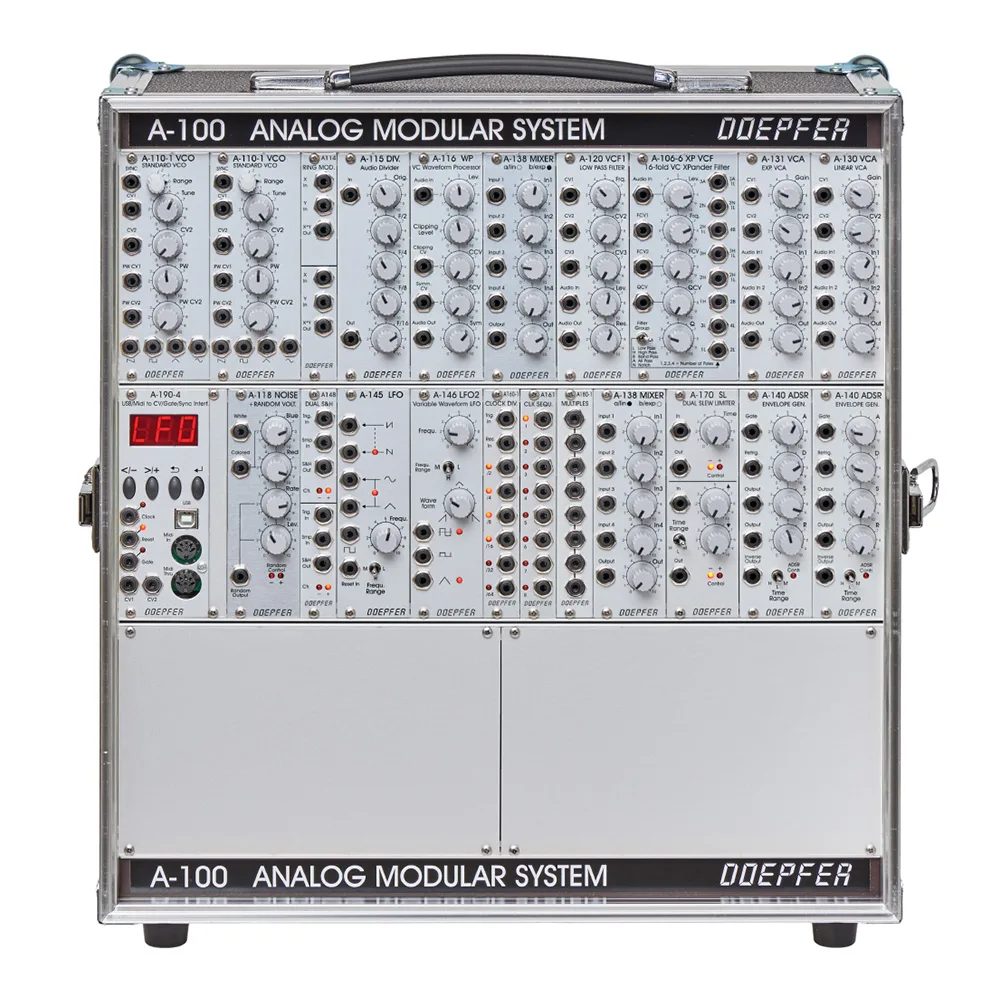

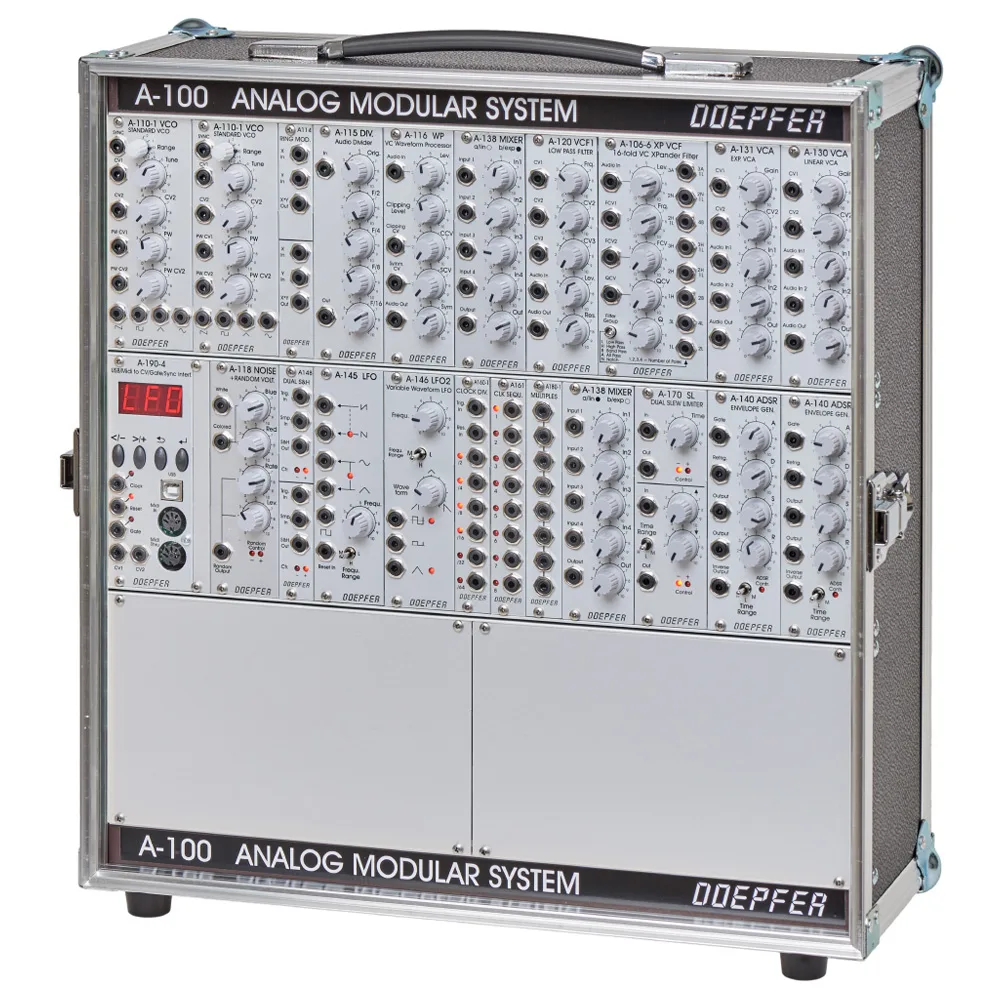

This comes mounted in a P9 (84hp x 9U) travel case with the latest Doepfer PSU3 and 2x42hp blank panels.
