Doepfer A-100 DIY Kit 1 Eurorack Case (6U – 84hp – Powered)

£172.00 inc. UK VAT

£143.33 ex. VAT

In stock (can be backordered)

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)





Product Info

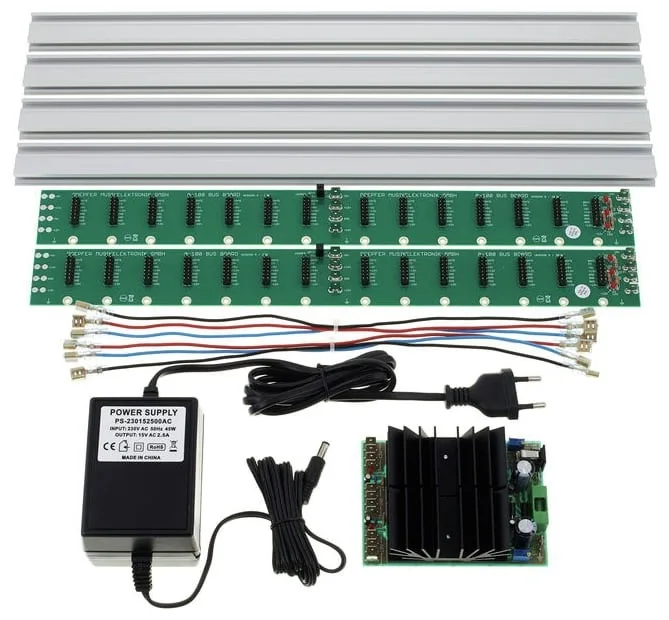

The Doepfer A-100DIY1 Do-it-yourself Kit 1 is a kit that comprises of various components, allowing you to create a case for the A-100. The Doepfer A-100 DIY kit is ideal for the crafter and modular user who enjoys building up a case from scratch. Included in the A-100 Doepfer kit is a power supply, external capsuled transformer, 2 bus boards, 4 84HP front rails, 160 M3 nuts, and cable for connections between the power supply and bus boards. Additionally, the Doepfer A-100DIY1 provides you with helpful sketches with measures for accurately drilling holes, as well as a building suggestion.

Features

Do-it-yourself construction of a case for the A-100
Power supply with external transformer (AC output)
Because of safety reasons, no dangerous voltages accessible inside the case
Output voltages / currents: +12V (max 1200 mA), -12V (max. 1200 mA)
External capsuled transformer
2 bus boards
Four 84HP front rails (427mm length) for mounting of the modules, incl. 8 mounting screws
About 160 M3 nuts which have to be inserted into the front rails (as the nuts can be slid to any position, even modules of other manufacturers with different position of the mounting holes can be assembled without gaps)
Cable for connections between power supply and bus boards
Sketches with measures (for drilling the holes at the right positions for PSU and bus board mounting)
Building suggestion for wooden case (sketch + list of all required wooden case parts)
Additional installation material like screws, nuts or distant bolts (e.g. for bus boards, power supply board, rails) are not included as these parts depend upon the type of case built by the customer
To operate the kit, an external transformer with 14-18V/2.4A AC is required, the current of the transformer has to be twice the value of the +/-12V DC current, the max. value is 2.4A (corresponding to 1200mA for +/-12V DC). Even smaller current output is possible; the current output of the power supply is half the current of the external transformer as the currents for both voltages +/-12V are required (if e.g. the transformer outputs max. 1000mA, the max. power supply current is 500mA for +/-12V)
If +5V is required (e.g. for some modules from other manufacturers) the +5V adapter A-100AD5 may be used
