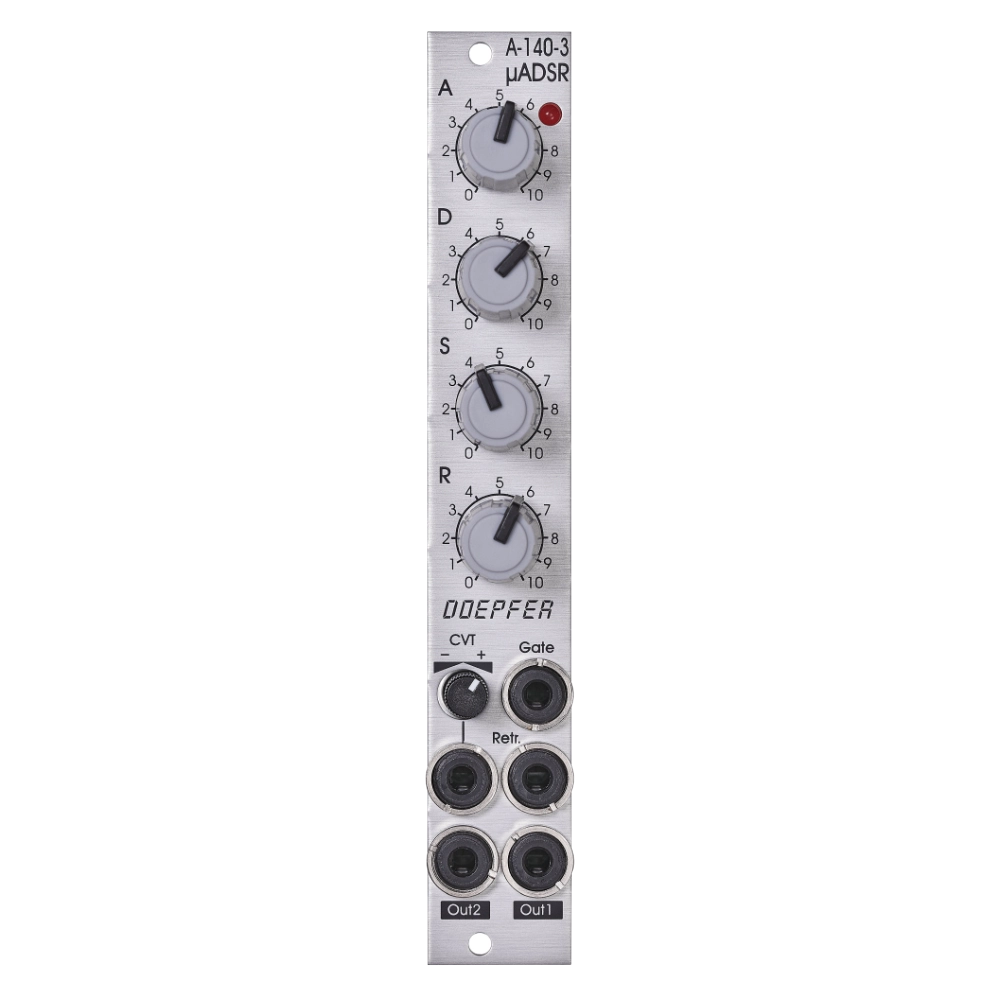

Module A-140-3 is the single version of module A-140-2 – just a single ADSR type envelope generator behind a front panel with 4 HP only.
The following controls and inputs/outputs are available:
- LED (displays the envelope output)
- A: manual Attack control
- D: manual Decay control
- S: manual Sustain control
- R: manual Release control
- Gate Input
- Retrigger Input
- CVT Input with attenuator (CVT = CV Time)
- 2 Envelope Outputs
The output voltage of the envelopes is 0 – 10V.
The attack/decay/release times are approximately between 1ms and 30s.
Power: +12V 30mA / -12V 20mA
