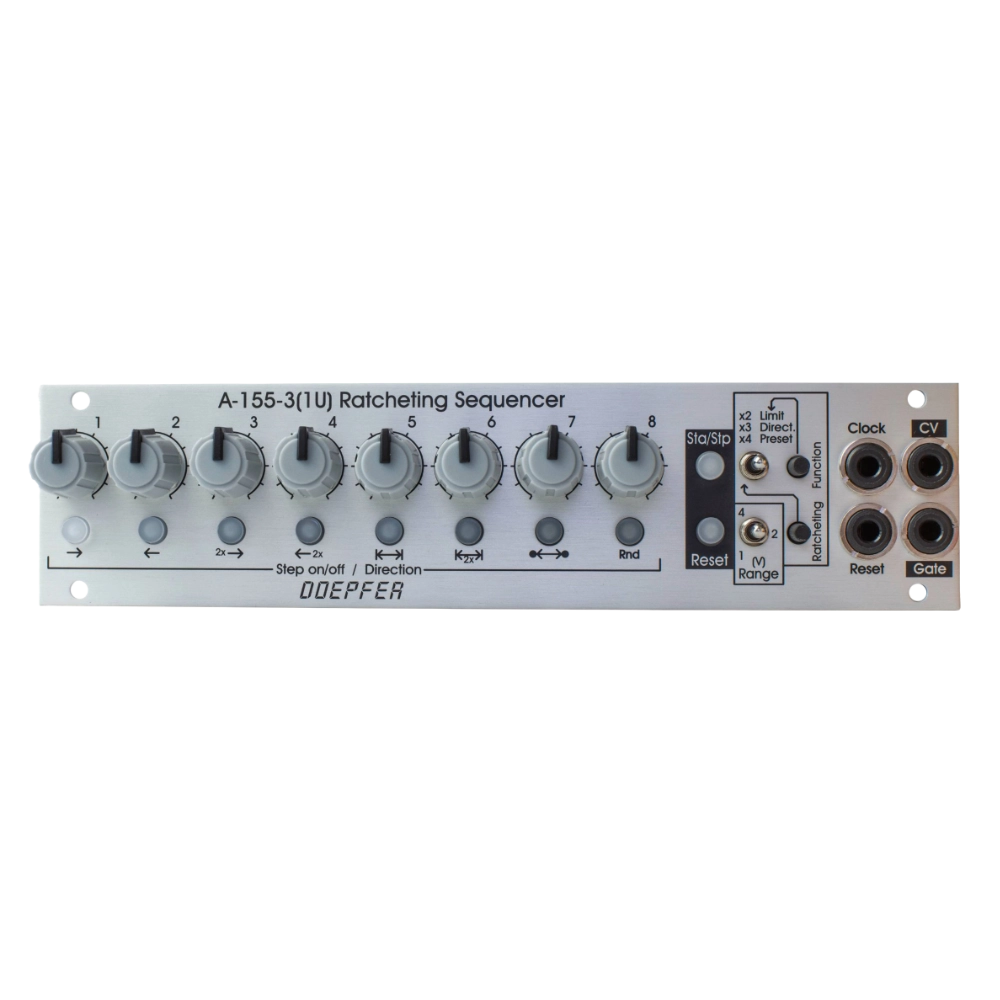

Doepfer A-155-3 Eurorack 1U Mini Analogue Sequencer Module

The A-155-3 (1U) is a compact but powerful 8-step CV/Gate sequencer for the 1U format.

Features

• Analog 8-step sequencer with per-step CV knobs and gate switches
• Selectable CV output ranges via toggle switch: 0…+1V, 0…+2V, or 0…+4V
• Multiple sequencer direction modes: Up / Down / Pendulum / Random / Repeating
• Programmable sequence length (including limit function)
• Per-step ratcheting programming (x2, x3, x4)
• Preset management: Store and recall up to 8 presets (active steps, sequence length, ratcheting)
• Inputs for external Clocking and Sequencer Reset
• Outputs for Gate and CV
• Internal pin header for direct connection to the A-190-9 or A-190-7 (1U) MIDI interfaces, providing quantized output

Power: +12V 50mA / -12V 20mA
