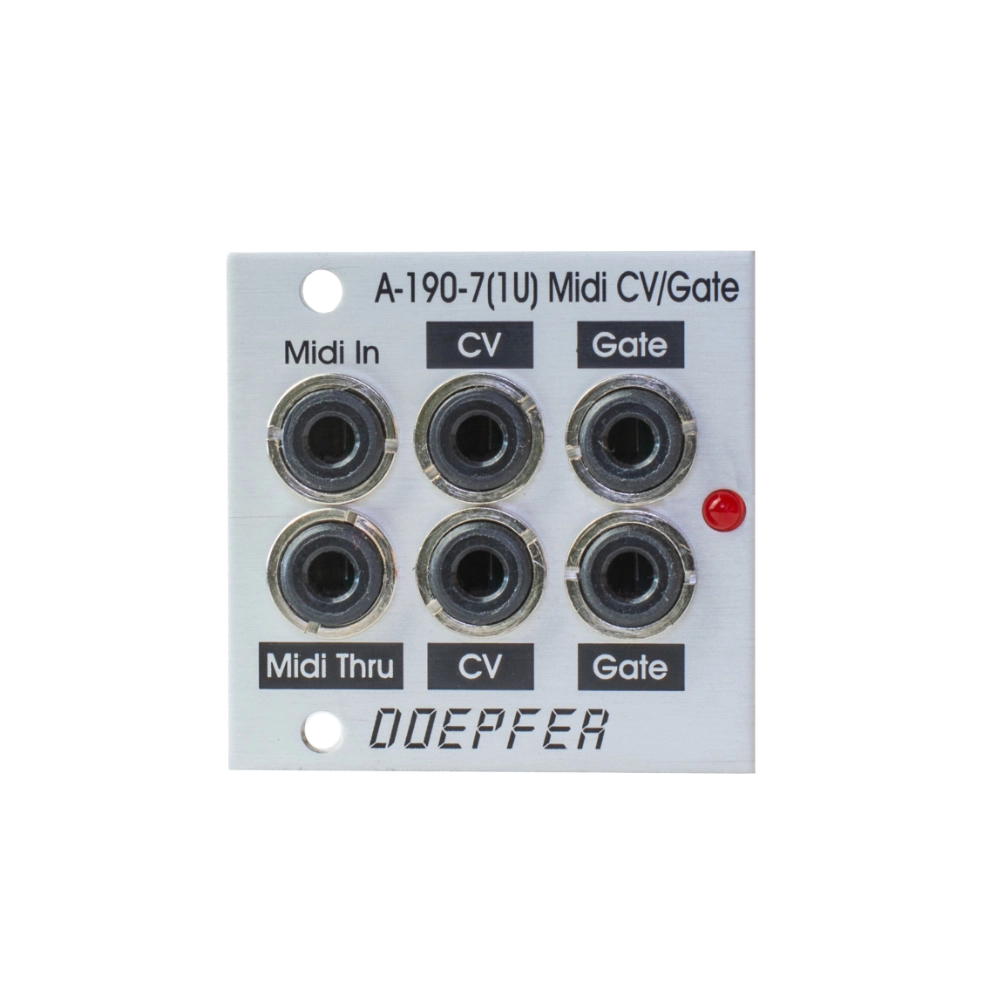

Doepfer A-190-7 Eurorack 1U Micro Midi CV/Gate Interface Module

The A-190-7 (1U) module is a compact 1U MIDI-to-CV/Gate interface designed for smaller setups.

Features

• Monophonic MIDI-to-CV/Gate interface
• 3.5 mm stereo socket for MIDI input (TRS MIDI Type A and B, switchable via jumper)
• MIDI input fixed to MIDI channel 1, can be switched to a different channel via solder points
• The MIDI input can be internally normalled to another module’s internal MIDI output (e.g., the quantizer of the A-155-2 sequencer)
• LED indicator for gate status
• 2 Gate and CV outputs
• Gate level: 0/+10V / CV output range: 0…+5V
• Perfect compact MIDI/CV interface for systems that don’t need complex MIDI/CV interfacing

Power: +12V 30mA / -12V 10mA
