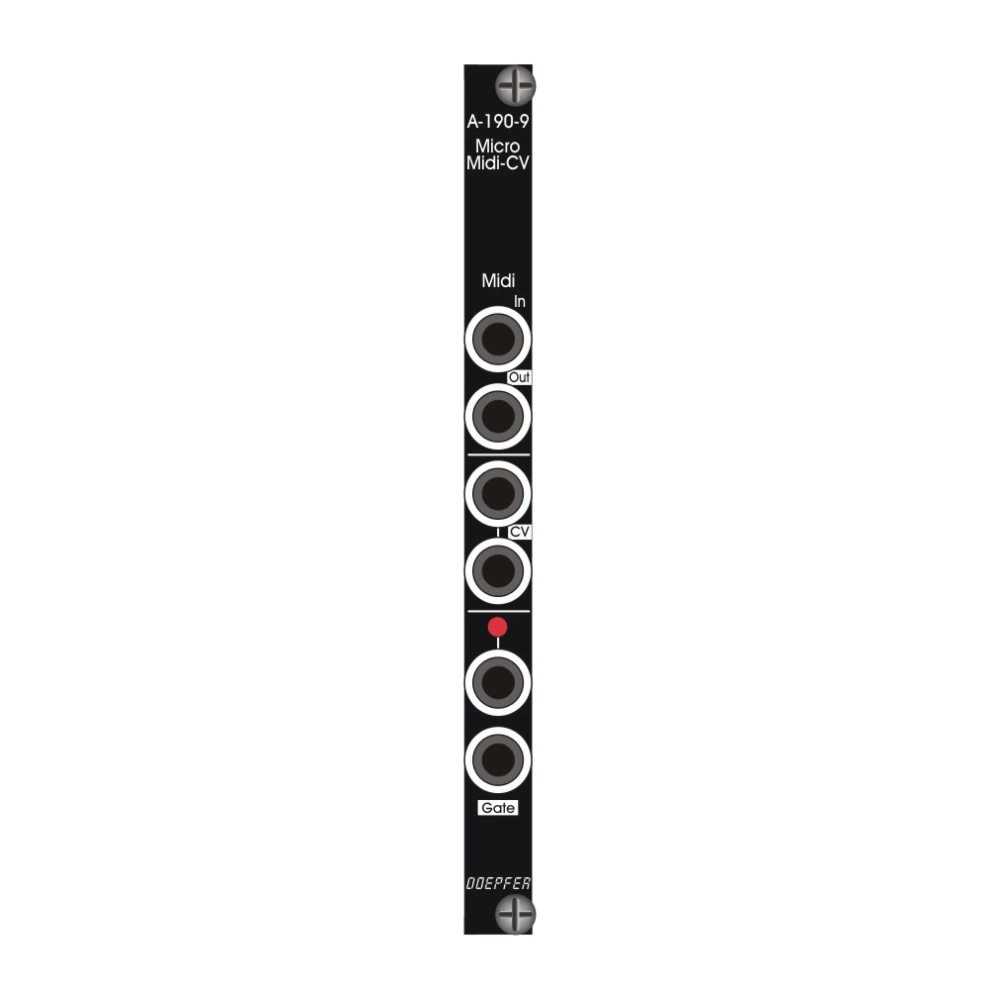

The A-190-9 module is a simple MIDI-to-CV/Gate interface, designed for smaller setups with a single synth voice. Perfect for compact rigs, offering essential CV and Gate outputs to control any Eurorack System.
Features
- Simple monophonic midi-to-CV/Gate interface
- 3.5 mm stereo socket for MIDI input (TRS MIDI Type A and B, switchable via jumpers)
- Fixed to MIDI channel 1, but can be switched to a different MIDI channel via solder points
- The MIDI input can be internally normaled to another module’s internal MIDI output (e.g. the quantizer for the A-155-2 sequencer)
- LED display for gate status
- Two Gate and CV outputs
- Gate level 0/+10V
- CV output range 0…+5V
Power: +12V 30mA / -12V 10mA
