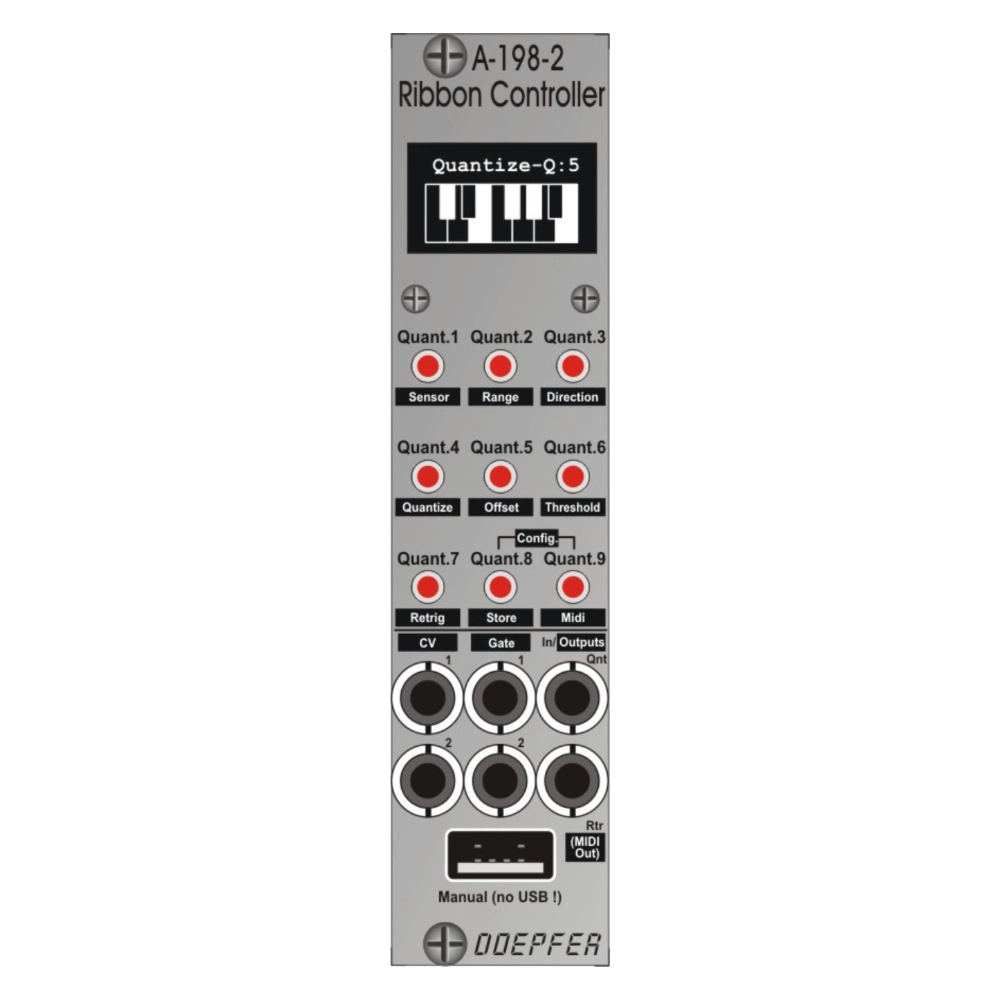

** A-198-2 MODULE ONLY **
A-198-2 is the enhanced version of the simple Trautonium/Ribbon Controller module A-198-1. The controlling element of the A-198-2 is the same as for the A-198-1, i.e. a linear position sensor (length about 50cm) with additional pressure sensor.
Improvement Features:
- Gate generation also in Hold mode
- 9 user programmable quantizations, displayed as a one octave keyboard
- Switching between quantized/not quantized at the module or via external control voltage input Qnt, which can be controlled e.g. from a (double) foot switch (module A-177-2) for dynamic quantize switching while playing
- Switching between retrigger on/off at the module or via external control voltage input Rtr, which can be controlled e.g. from a (double) foot switch (module A-177-2) for dynamic quantize switching while playing
- Position CV1 range adjustable in 5 steps from 0-1V (1 octave range) to 0-5V (5 octaves range)
- Pressure CV2 range adjustable in 7 steps, max. 0…+7V
- Direction of the manual selectable
- Offset voltages for CV1 (position) and CV2 (pressure) programmable
- Threshold for Gate 2 (pressure) adjustable
- Optional Midi output (instead of the input socket Rtr or via passive breakout module)
- All parameters can be stored nonvolatile (incl. 9 quantisations)
- Operation via OLED display and 9 red illuminated momentary switches (buttons)
Power: +12V ?mA / -12V ?mA
