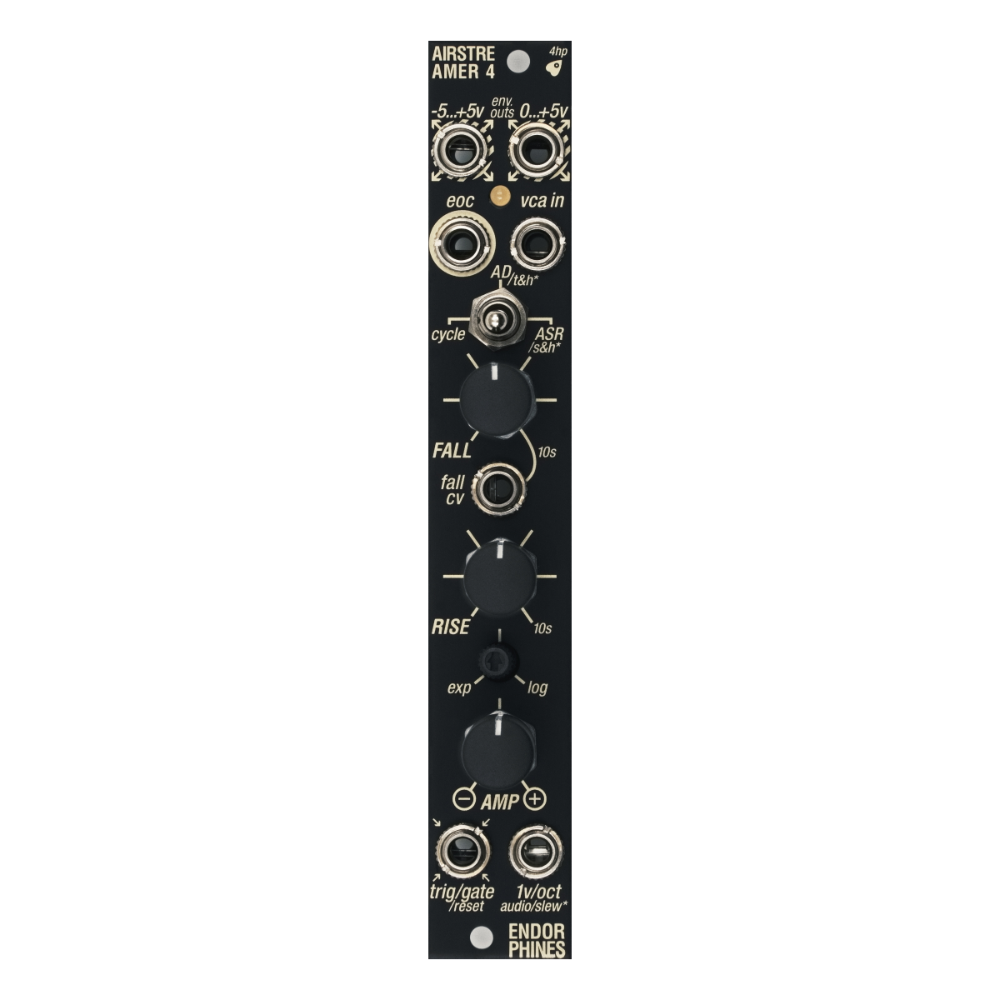

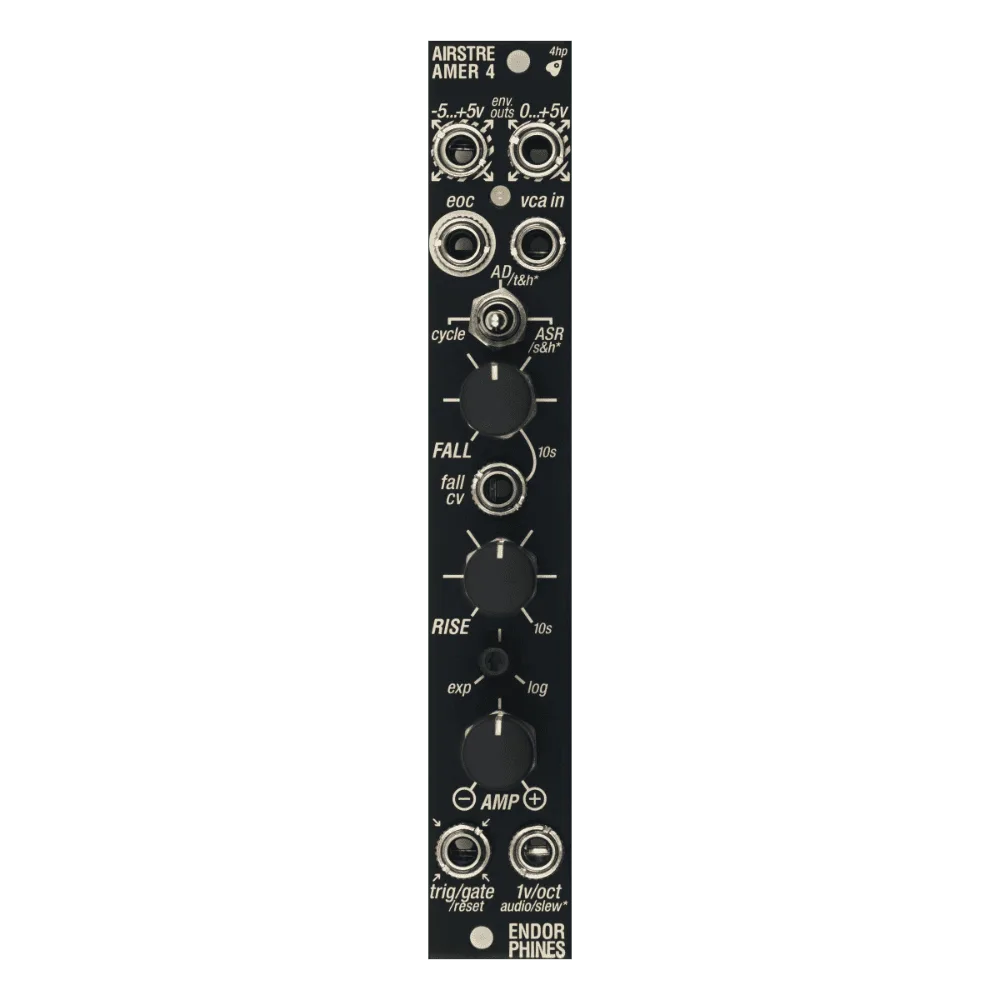

ENDORPHIN.ES Airstreamer 4 Eurorack Envelope Generator Module (Black)

Ultra slim envelope generator with looping, ASR and AD modes.

Features

• CV control over fall (decay / release)
• Continuously variable shape over both slopes without stretching the slope’s duration in time.
• Low aliasing CV generation, 224 kHz sample rate.
• 1 v/oct input, bipolar and unipolar outputs, end of cycle output.
• Audio rate oscillation in cycle mode allows you to utilize it as an oscillator.
• Polarizer knob with additional VCA input scales the envelope and inverts it when CV goes to negative voltages, allowing for compact sidechain envelope solution without the need for external mixers / inverts / offset generators.
• Slew limiter, S&H, T&H processing for external CV sources

Specifications

• Width: 4hp
• Depth: 26mm
• Power: +60mA / -15mA

Manufacturer product page here.
Product manual here.
