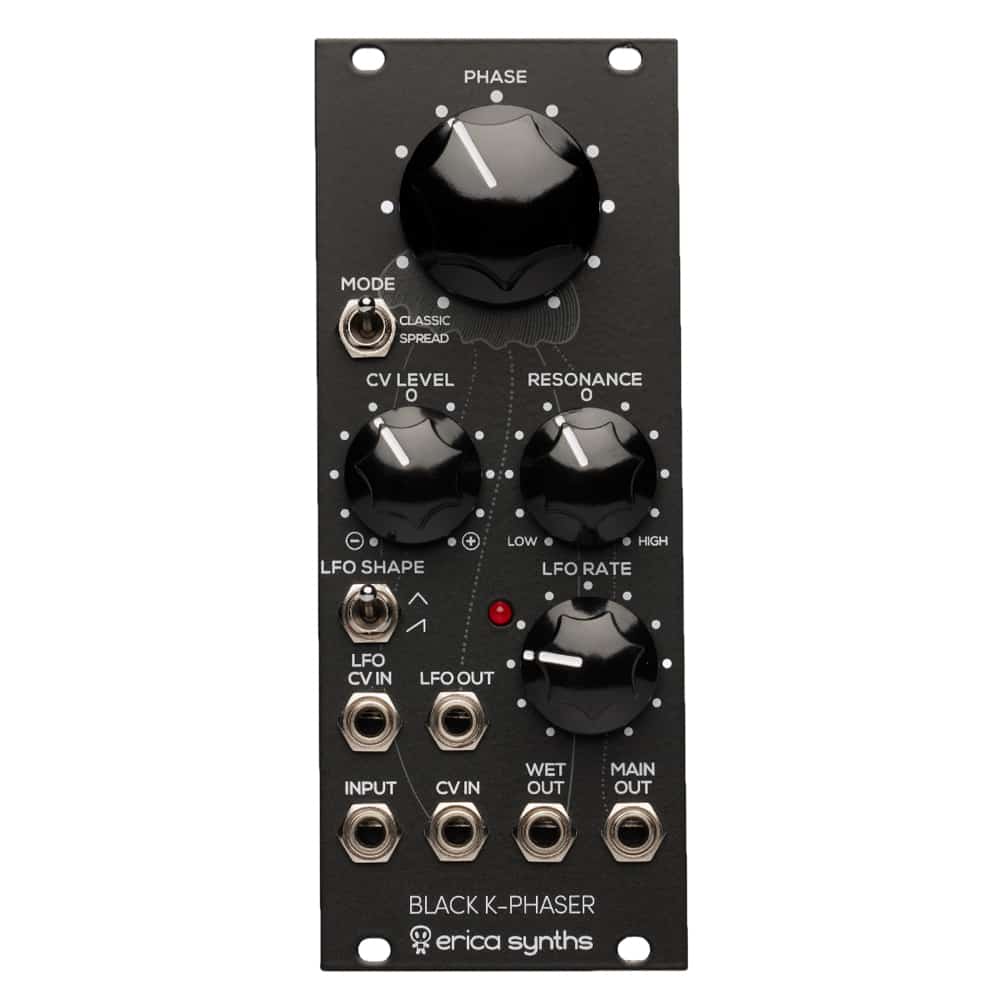

The Erica Synths Black K-Phaser is our take on a classical, genre defining FX unit – the Krautrock Phaser.
The Black K-Phaser retains the original concept of 8 all-pass filters with photoresistors, but we redesigned the filters and modulation circuit and added several unique features. A dip switch allows for selecting the number of filter stages involved in the resonance path, while the resonance attenuverter brings in never-heard-before feedback artefacts, and most importantly – the SPREAD mode detunes the all-pass filters for even more distinct behavior. A built-in voltage controlled LFO with selectable waveforms expands the modulation possibilities of the phaser and can be used as an independent modulation source for your modular system as well.
The Black K-Phaser is our tribute to the German electronic music pioneers that largely shaped the sound of electronic music worldwide.
Features
- 8 all-pass filters with photoresistor control
- Classic and Spread (filter detune) mode
- Resonance attenuverter
- Selectable resonance path
- Built in VC LFO with a dedicated output
- Wet output
Specifications
Width: 10hp
Depth: 35mm
Power: +88mA, -78mA
