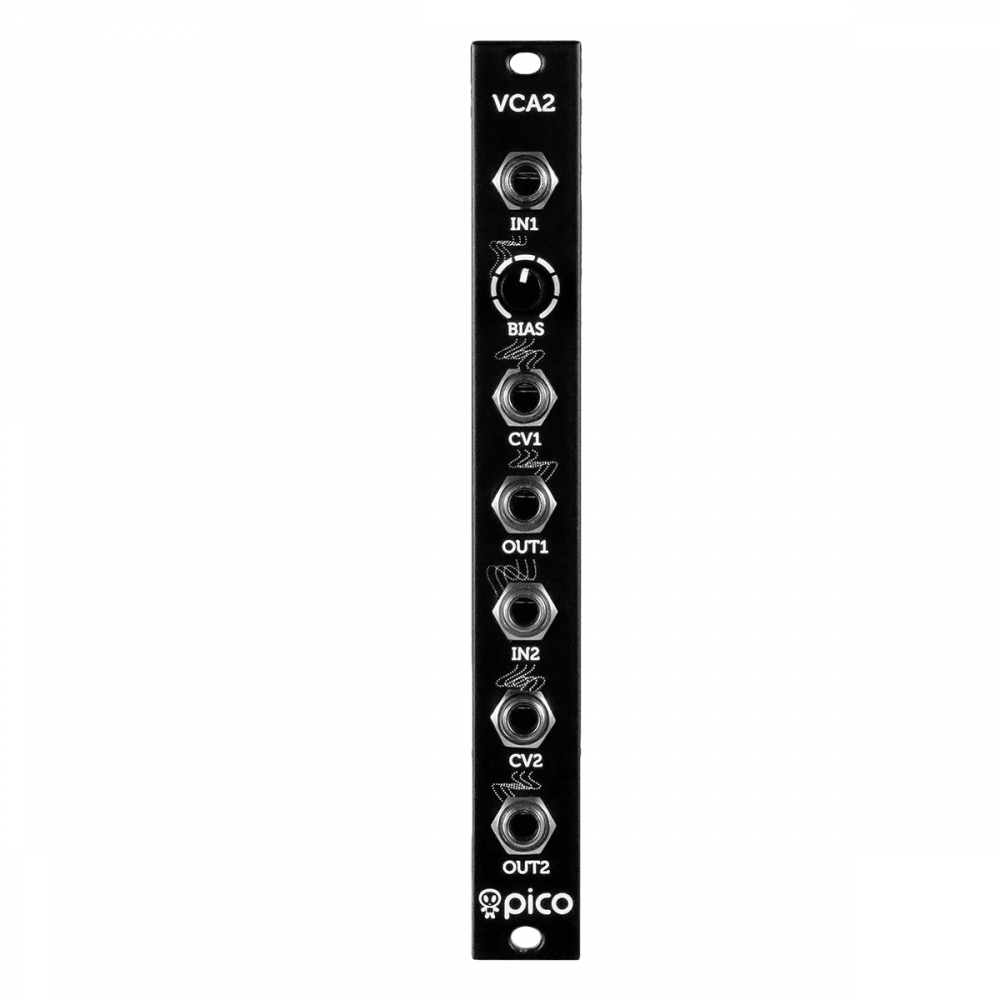

Erica Synths Pico VCA2 Eurorack Module

£98.99

Only 2 left in stock (can be backordered)

Price Match

Seen it Cheaper? Email Us and we will get back to you. Full details here

(Bear in mind when purchasing from the EU you are viewing Ex-VAT prices in the UK. VAT, handling fees and potential import duties will be due)






Product Info


The Erica Synths Pico VCA2 is compact voltage controlled amplifier module, based on reliable AS3330 chip. It features two independent channels, and the first one comes with the manual offset adjustment, useful for full span vibrato effects. Audio and CV inputs of the first VCA are normalled to the second one, so the module can also be used as a buffered audio splitter. VCAs are DC coupled, and they can be used for controlling amplitude of control voltage signals.

Features

  • Two independent VCAs with a linear response
  • Manual bias adjustment on the top VCA
  • Input normalling
  • DC coupling
  • Input protection against overvoltage
  • Protection against reverse PSU connection
  • Nominal audio signal level 0Vptp
  • CV level (full span) -5V – +10V
  • Max attenuation -110dB

Specifications
Width: 3hp
Depth: 35mm
Power: +20mA, -19mA

Manufacturer product page here.
Product manual here.
