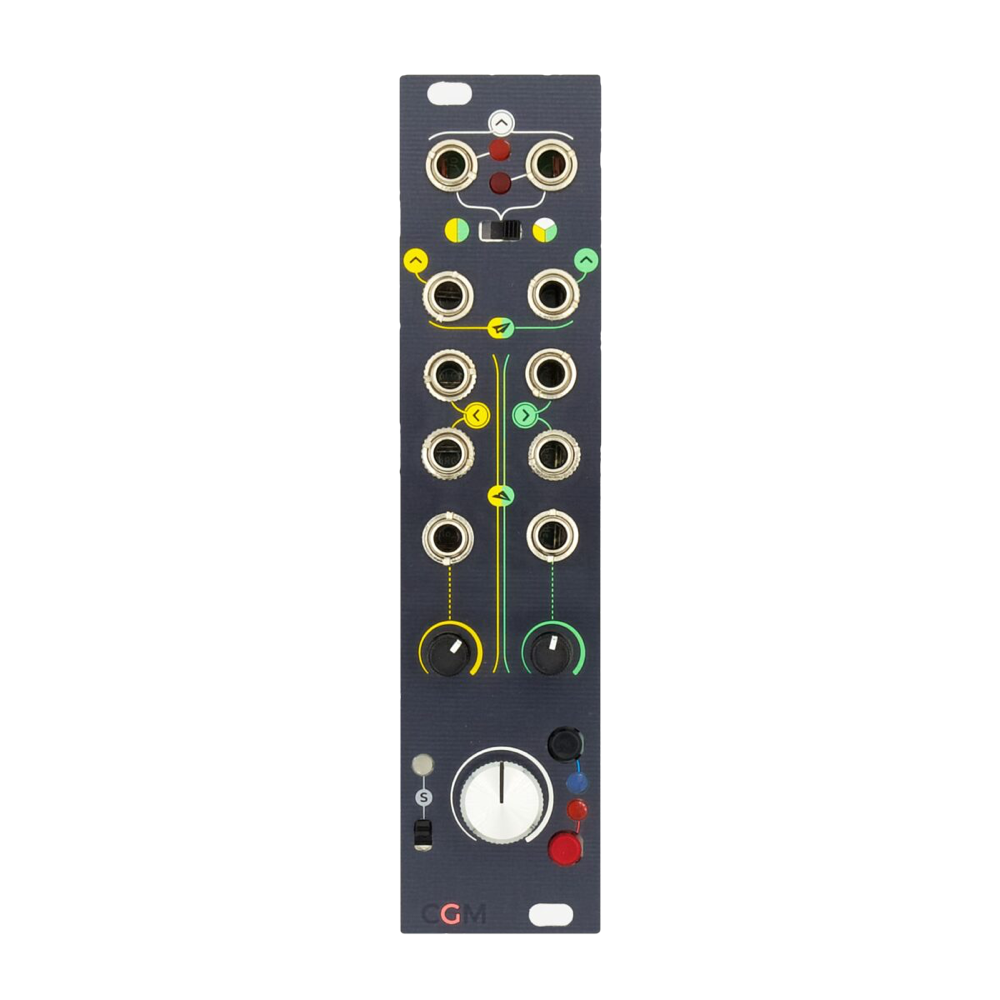

The group is a stereo module that blends the signals coming from the channels linked to it (up to eight) and manages their signal routing.
The group “puts into practice” all the information defined by the channels’ controls: volume, effect send volume, stereo panning.
It consists of three sections: the amplitude controls (white) and the two effect sends and returns (yellow and green).
A switch lets you define the group outputs’ behavior: it can be either the sum of all the channels and their effect return or just the wet signal.
The first option is great for smaller setups, where you can use the group as your system’s output without a master module.
Should you have a master, the second option allows for more advanced effects parallel processing or multitrack recording.
Specifications
Width: 6hp
Depth: 38mm
Power: +60mA, -60mA
