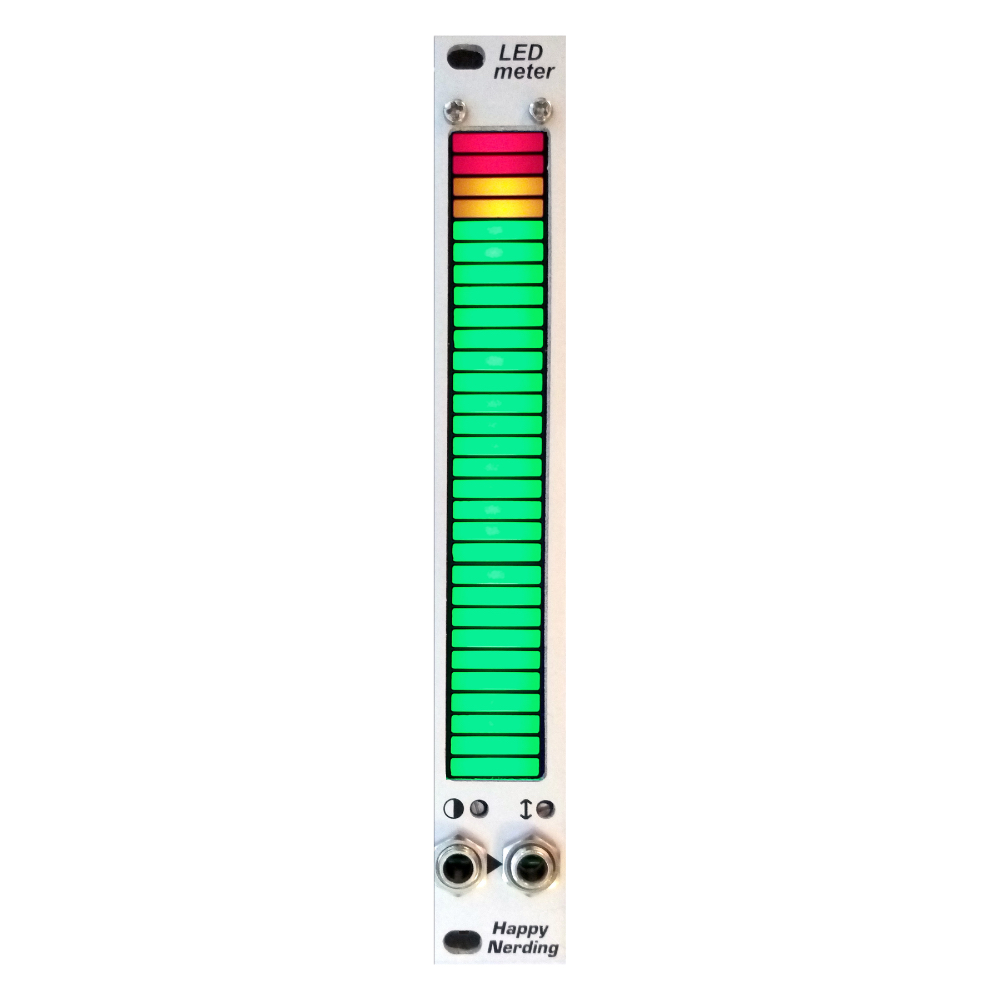

LED Meter is a handy utility module designed to show audio levels.
There are total 30 led segments, each one roughly corresponds to 1 dB of level, so it is 30 dB of measurement level available with this module.
Dual color version (blue-yellow) and green color version sold since 2019 year have mode jumper on the back side. When the jumper is installed – bipolar operation is active, and when the jumper is removed – ordinary audio meter is active.
The module has an input for the signal to be displayed, and its buffered copy is sent to the output for further processing, so no external splitter is needed.
Specifications
- Width: 4hp
- Depth: 40mm
- Power: +150mA / -50mA
