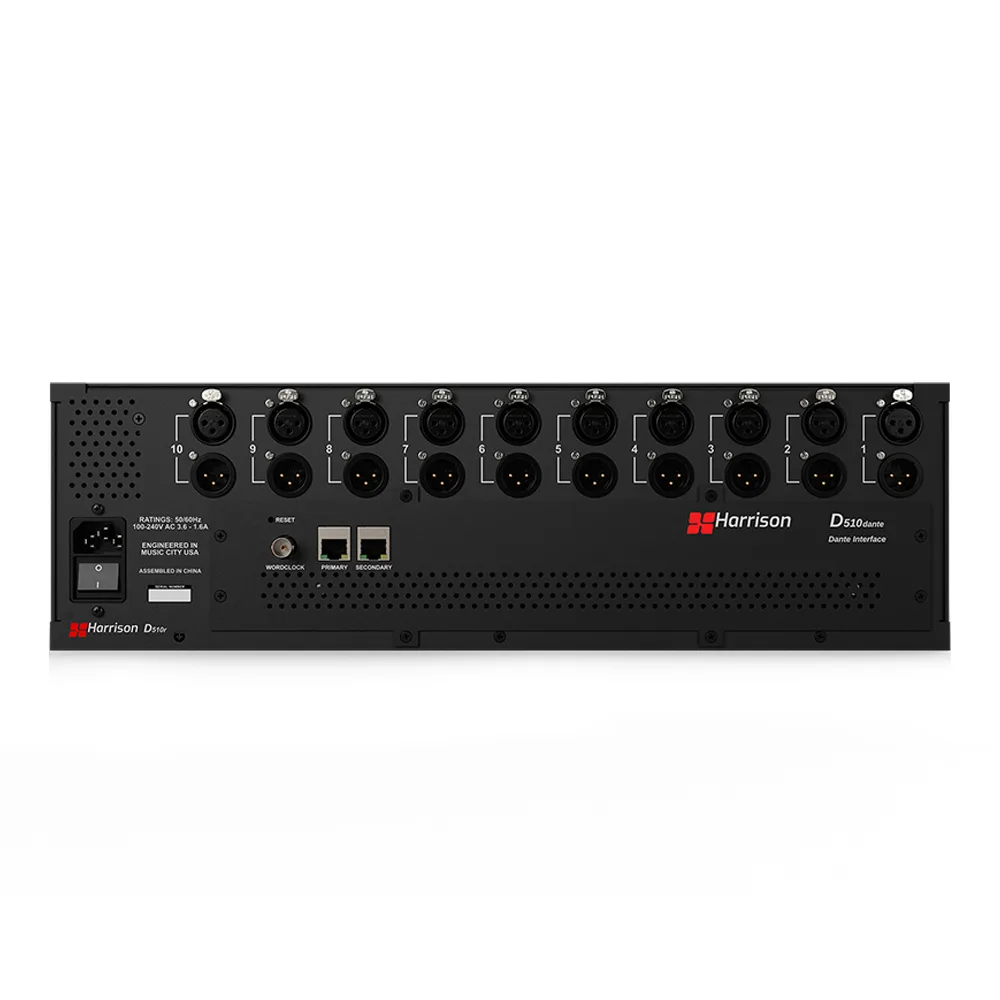

Audio over IP connectivity for live sound and studio Built around 10 in/14 out, high-performance A/D & D/A converters for pristine audio quality, the D510dante card brings the power of Dante AoIP to your Harrison 500 rack.
Easily integrate 500 Series processing into your mix bus, subgroups, or channel inserts on a Dante-compatible live
sound console. In a hybrid studio setup, take full advantage of Dante’s flexible routing matrix to send and receive audio seamlessly across your modules.
501dr rack not included.
D510dante specifications
- 10 Inputs / 14 Outputs
- ADC
- THD+N, 1kHz 24dBu: < 0.0008%
- Noise A-Weighted: <-95 dBu
- Frequency Response: 20 Hz–20KHz +/-0.25 dB
- DAC
- THD+N, 1kHz 18dBu: < 0.006%
- Noise A-Weighted: <-85 dBu
- Frequency Response: 20 Hz–20KHz +/-0.25 dB
- 0 dBFS = +24dBu D/A channels 1-10
- 0 dBFS = +18dBu D/A channels 11-14
- 2 x RJ45 Network Ports (Primary and Secondary)
- BNC TTL Wordclock
- Latency: DA + AD <> Dante – 48kHz and 96kHz = 43.2 samples (0.9ms@48kHz, 0.45ms@96kHz)
