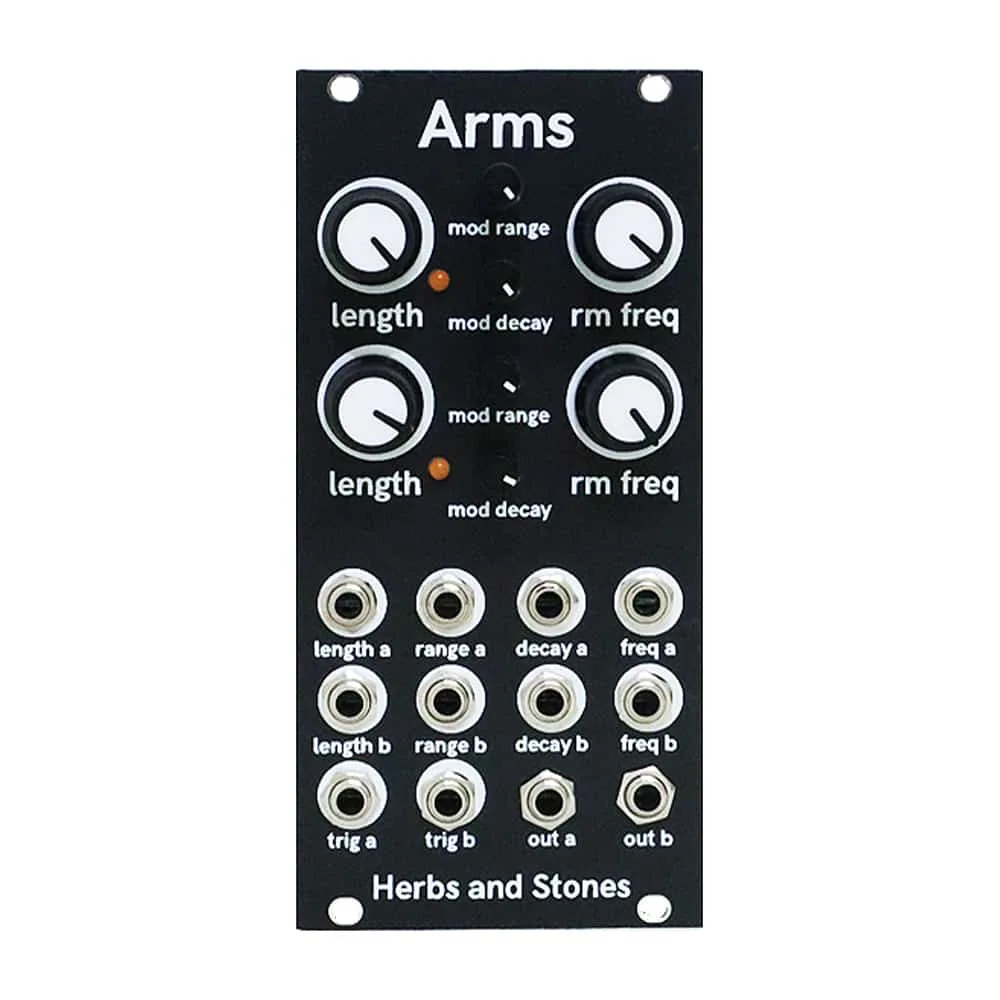

Arms is a two voice digital percussion module. It is based around a combination of FM synthesis and ring modulation.
Each voice has CV control over decay length, FM mod range, FM mod decay and the frequency of the ring modulator oscillator.
The two identical voices are designed to synthesize a wide range of drum and percussion sounds, from hi hats to harsh snares and low frequency tom toms.
Each CV input accepts 0-5V signals and is protected from voltages above and under the expected CV range.
Specifications
Width: 12hp
Depth: 22mm
Power: +12mA, -8mA
Manufacturer product page here.
Product manual here.
