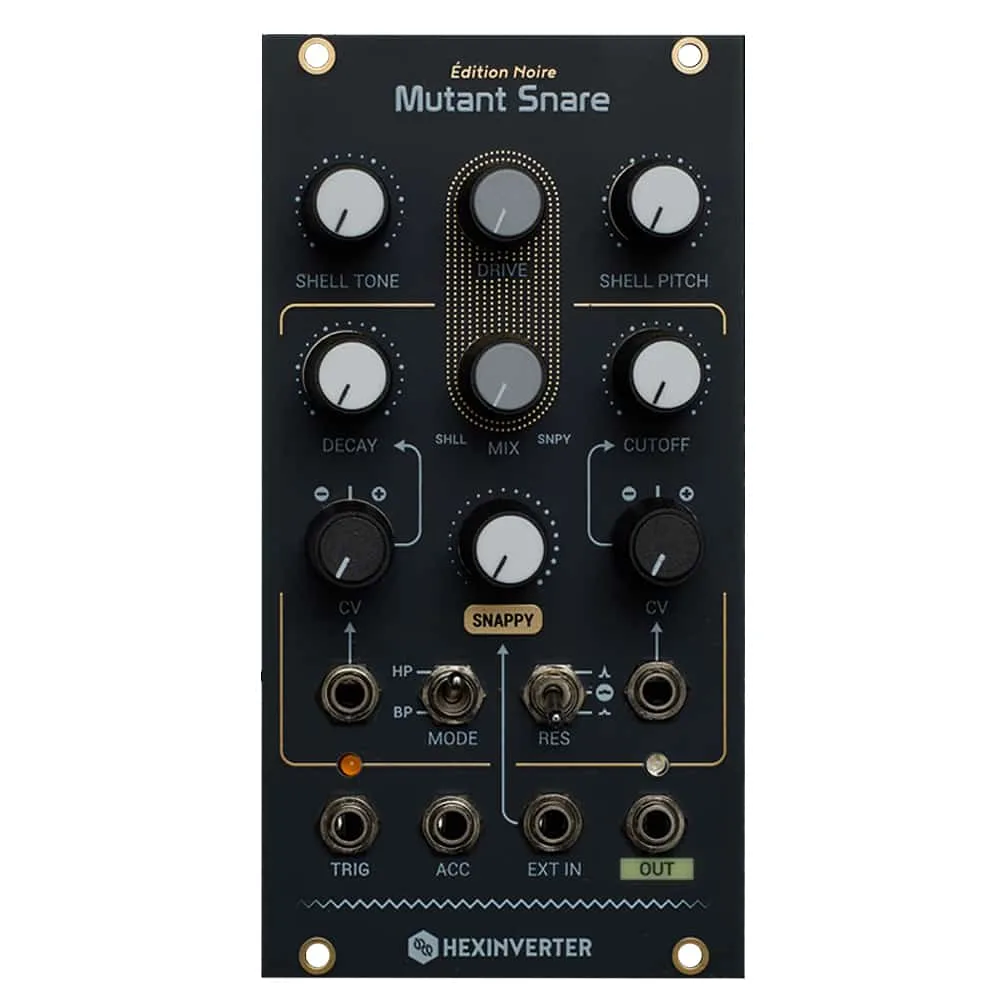

Hexinverter Electronique Mutant Snare Eurorack Module

Mutant Snare Designed by Hexinverter, from classic electro snares to warping, alien percussion, the Mutant Snare is a radical departure from the static sounds of the TR-808.

Features

• Analog bridged-t sinewave oscillators, for those organic-sounding tones we’ve come to love from the 808
• TONE control blends between the two sinewaves of different frequency
• SHELL PITCH lets you tune one of the sine waves, to change the pitch of your snare drum
• SNAPPY adds some noise to the snare
• an analog white noise generator feeds the SNAPPY circuit
• an external input lets you patch any sound source you like into the SNAPPY generator
• voltage control of SNAPPY decay
• SNAPPY feeds into an analog selectable high-pass or band-pass filter
• voltage control of filter cutoff frequency
• when nothing is plugged into the cutoff CV input, the SNAPPY envelope OR the adjustable sinewave from the SHELL generator normalize through the CV attenuverter for cutoff CV. A jumper on the back of the module allows you to select which of these internal modulation signals are routed here
• filter has three resonance settings: classic 808 (low resonance), high resonance, and self oscillation
• bipolar attenuators (aka: ‘attenuverters’) on CV inputs

Specifications

• Width: 13hp
• Depth: 20mm
• Power: +12V 62mA / -12V 57mA

Manufacturer product page here.
