Studio, cafe, stage, floor, coffee table—the 7U Performance case doesn’t care where you play with it. Two 3U rows house and power all the modules you love (or one day hope to love), while the additional 1U row accommodates an extensive selection of specialized utility modules. Power, audio and MIDI/USB jacks on the back handle all the necessary inputs and outputs, ensuring all that rack space remains free for the “fun” modules. The lid has enough clearance to keep your system patched in transit, and two cases can be stacked with a set of joiners.
Each row of the 7U Performance Case Gen-2 is 104HP wide. There are two rows of 3U rack space, and one row of 1U rack space; the TPS135 MAX power supply has enough headers to connect 34 modules without using flying-bus cables.

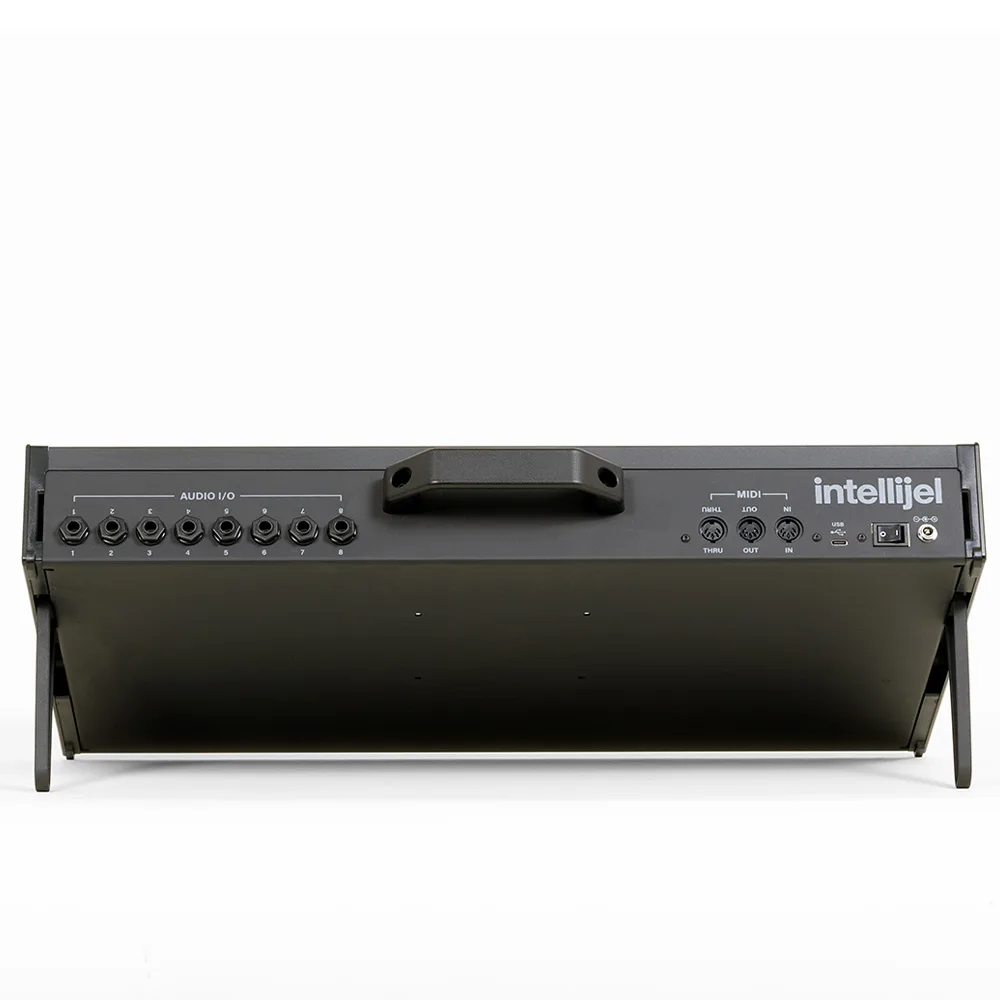

7U Performance Case Gen-2 offers a ton of flexibility for connecting compatible modules. The eight rear TRS ¼” Neutrik jack connections provide plenty of options for connecting to mixers, FX, and other audio gear. Each jack and adjacent pairs of jacks have associated connection options for balanced mono, unbalanced stereo, or send / return configurations.
MIDI connectivity is covered as well with MIDI over USB-C, and three 5-pin jacks for MIDI In, Out, and Thru.
The TPS135W MAX power supply board includes thirty-four shrouded power headers; more than enough to accommodate as many modules as can fit in the case. Improved performance also means less noise across your system.

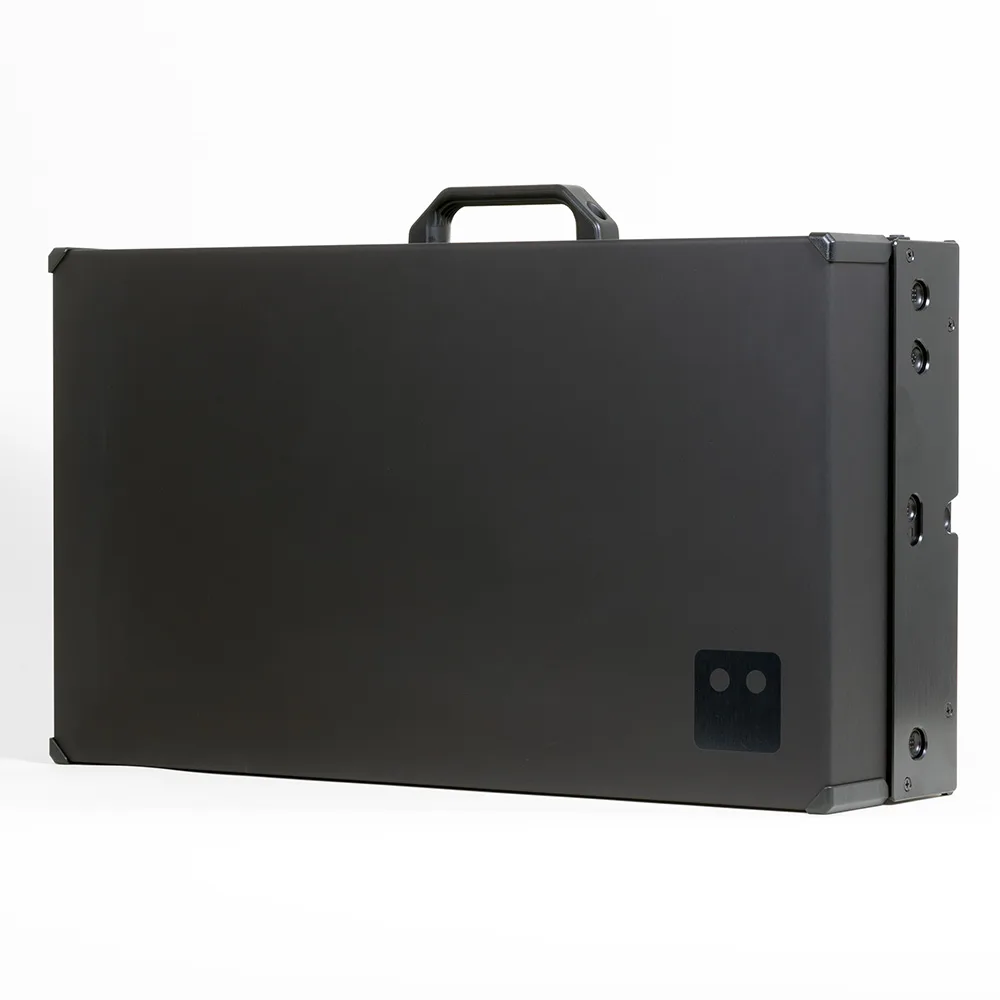

The solid aluminium frame with ergonomic handle protects your modules from bumps and scratches while you’re on the move. The included lid covers your modules, leaving plenty of room to keep your system patched and ready to go. A recessed internal locking system makes it easy to securely attach and detach the lid.

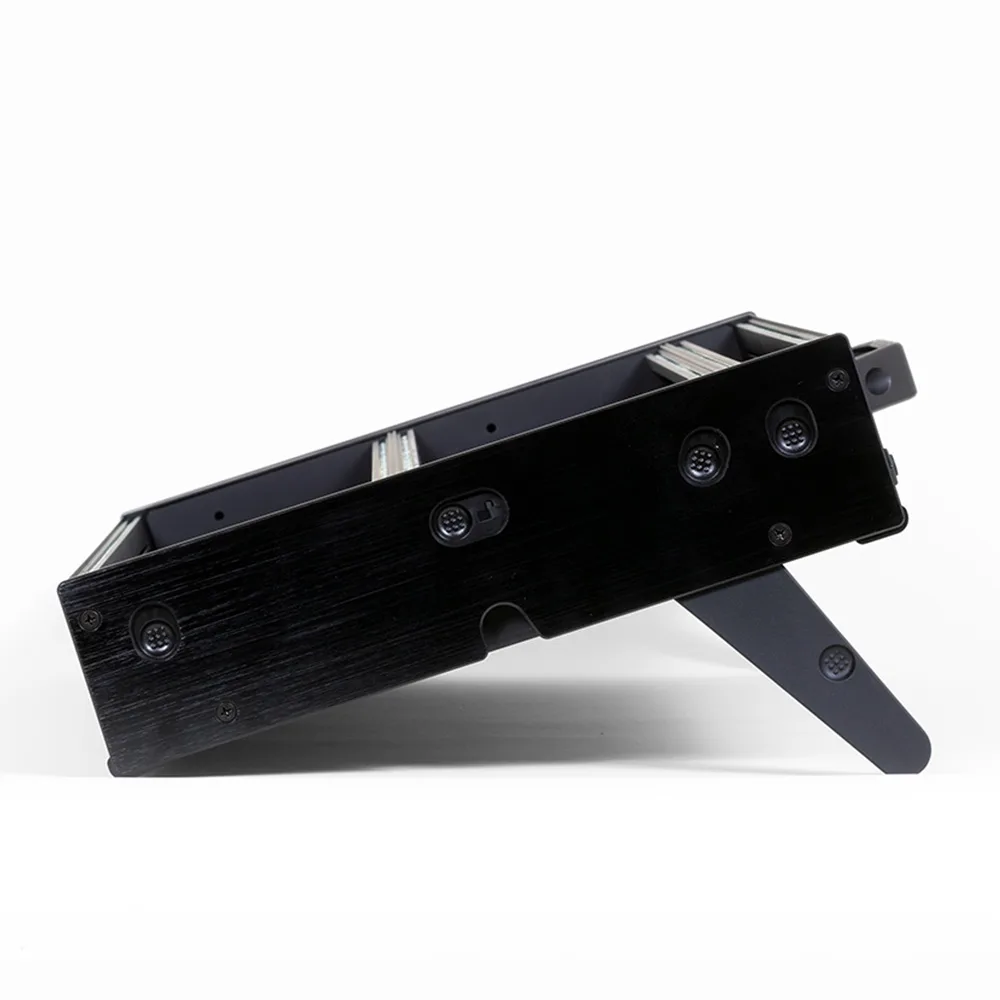

The Performance Case offers multiple ergonomic positions within your workspace. The fold-away legs let you quickly angle up your case for easier viewing, patching, and panel access on a desktop. Alternatively, you can attach the Performance Case to a stand/arm with a VESA mount, letting you get creative with the system’s positioning.
Features
- Rails can be repositioned to place the 1U Row at the top, middle or bottom of the case.
- Threaded M3 strips for mounting.
- Enough shrouded power headers for 34 modules.
- 8 x 1/4? TRS audio jacks
- 3 x Full-size 5-pin DIN MIDI In, Out, Thru jacks and a USB-C MIDI port —
- Rocker switch and 2.5mm barrel plug for power entry.
- The included Meanwell 90-watt AC/DC adapter provides 85W of power spread across 3 power rails.
- +12V output at 6A (72W max)
- -12V output at 5A (60W max)
- +5V output at 2A (10W max)
- Custom-made plastic carrying handle with ergonomic grip.
- Anodized aluminum lid with internal latching system, deep enough to close the case with cables patched in.
- Retractable, glass-filled nylon legs that can support the case at two different angles, or lay the case flat, of course.
- Spring-loaded latching accessory slots on top and bottom of the case. The slots can be used to attach two cases using a pair of 7U Joiner Plates.
- VESA mounting holes for attaching to industry-standard monitor arm/stands (M4 100mm x 100mm pattern).
Specifications
- w/ Lid: 556.5mm x 352.9mm x 146.4mm
- 4.74kg w/ Lid and Power Adapter, 5.5kg Boxed for shipping
- +12V output at 6A (72W max)
- -12V output at 5A (60W max)
- +5V output at 2A (10W max)
- Module Depth: 73mm
Included
- 7U Performance Case Gen-2 w/ Aluminum Lid and TPS135 Max Power Supply.
- 90W Meanwell AC/DC adapter.
- 3FT North American IEC power cable.
