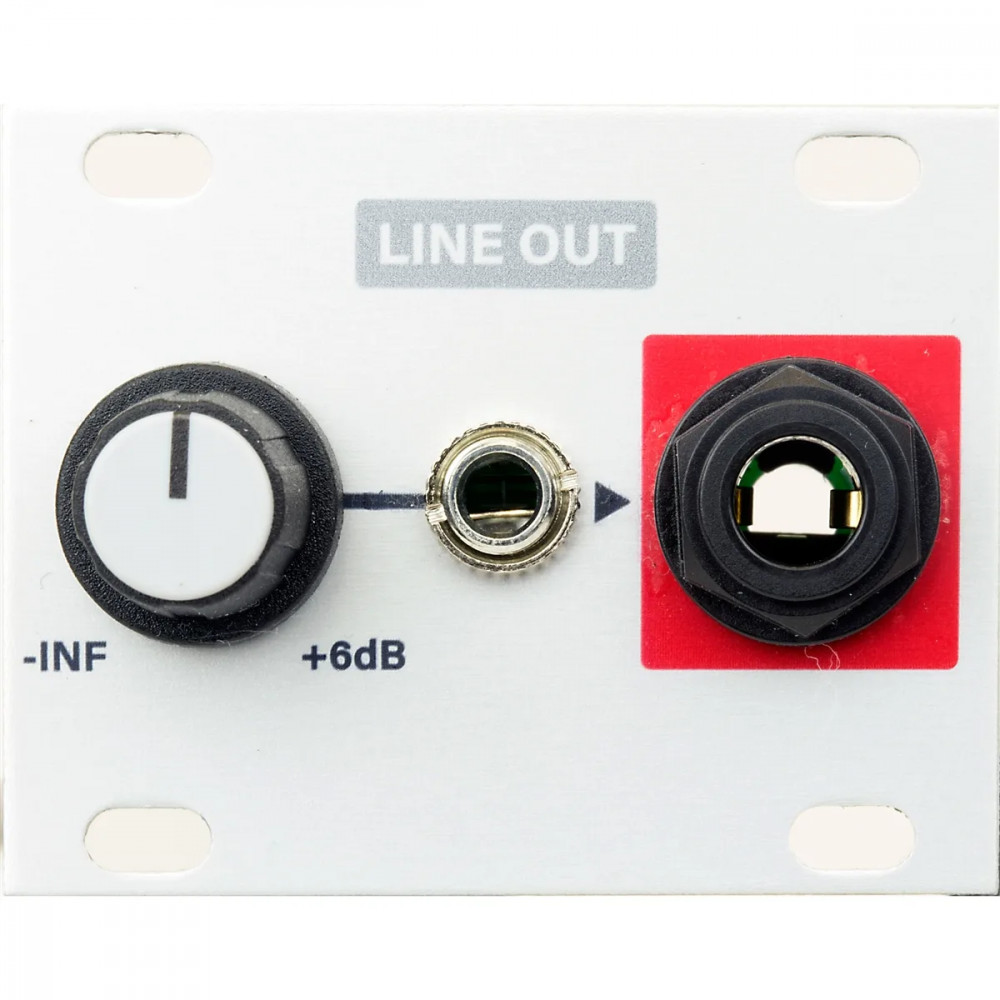

This module completes the connection between your Eurorack modular system and the audio world outside it. Convert modular signal levels to balanced, line-level audio and route it into rack-mount or desktop FX units, mixing consoles, digital audio workstations, and so on. Simply connect the desired output of your Eurorack patch to the 1/8? jack, connect the 1/4? jack to your destination of choice, and adjust the volume as required.
Features
- Output path steps a nominal Eurorack level (10 Vpp) down to +4 dBu with up to +6 dB gain.
- Balanced TRS 1/4? output path
- Uses a high quality THATCorp balanced line driver IC
Specifications
Width: 10 hp
Depth: 27 mm
Power: 9mA @ 12V 9mA @ -12V
