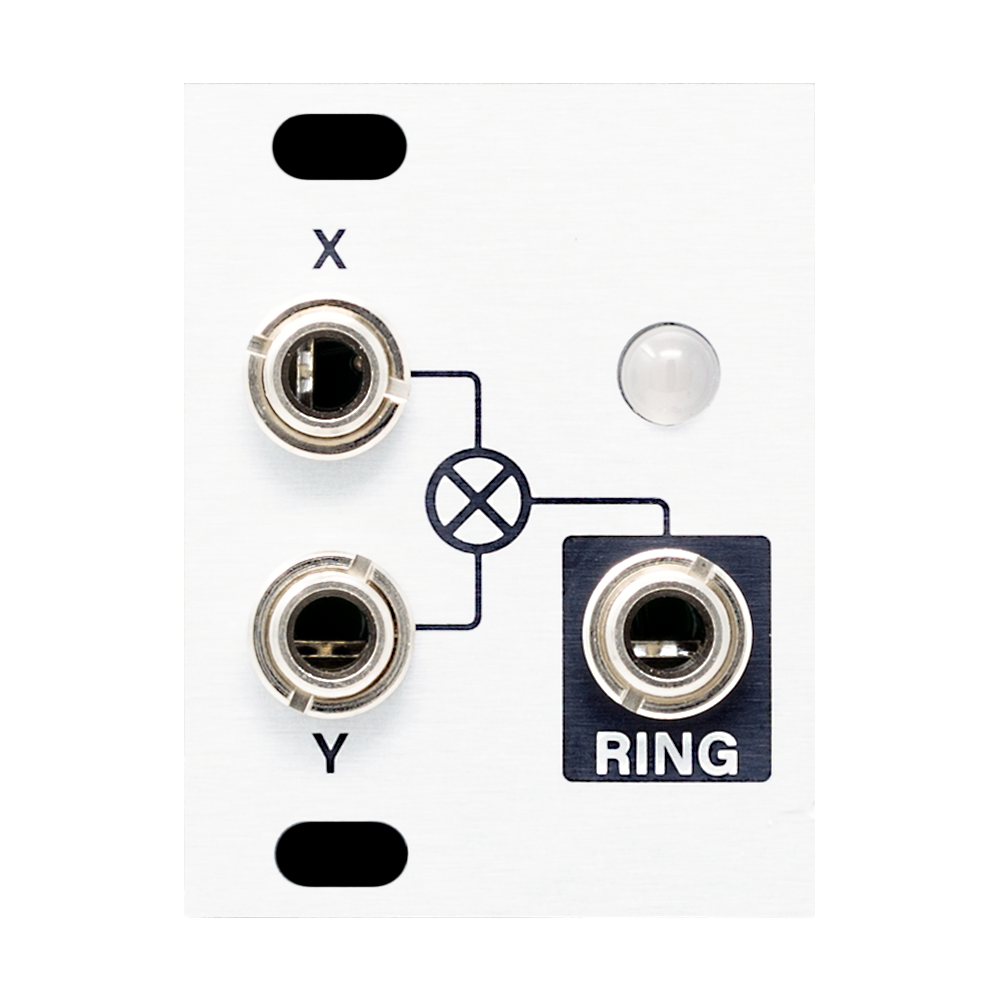

Ring Modulation is a classic synthesis technique that takes two source waveforms and generates a third waveform, which contains the sum and difference frequencies of the two inputs.
At audio rates, ring modulation creates a fairly inharmonic and ‘metallic’ sound. At LFO rates, ring modulation can generate interesting, complex modulation shapes.
Features
- Active ring modulator that uses a high quality SSI2162 VCA IC.
- DC coupled so it can be used for both CV and audio.
- Can be used with unipolar control signals as a linear VCA
- Compact size
Specifications
- Width: 6HP
- Depth: 32mm
- Power: 25mA @ +12V / 20mA @ -12
