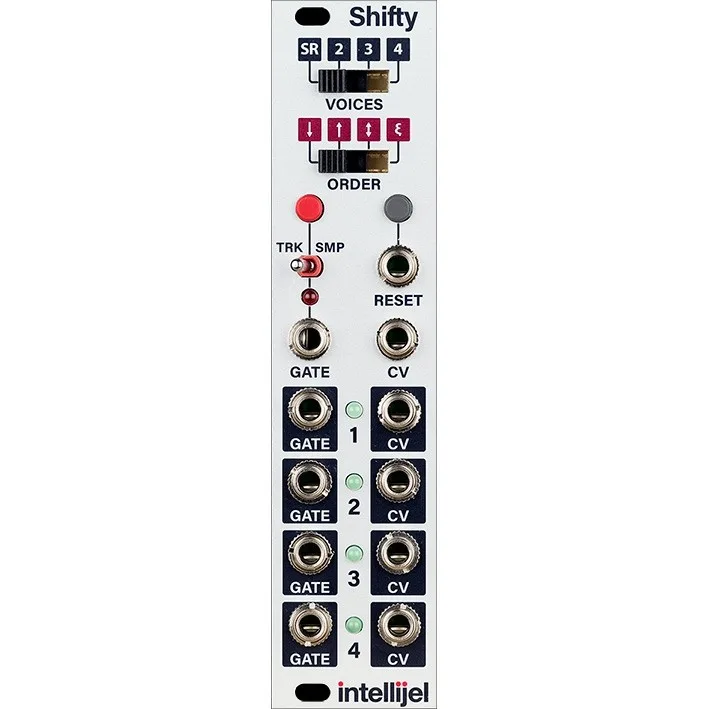

Intellijel Shifty Eurorack Switch/Shift Register Module

Shifty is a combination of four sample and hold stages, a sequential gate, and a sequencer controller. This collection of functions allows for some inspiring and useful utility applications, such as clock dividing, or controlling up to four voices with intricately evolving melodies or chord changes.

FEATURES

• Voice Allocation Mode alternately routes incoming CV and gates to up to four voices
• Shift Register Mode stores four incoming CV values and sends it to voices sequentially
• Choice of four different voice order directions
• Pitch outputs are driven by a precision quad DAC to avoid voltage droop
• GATE input can be toggled between track or sample and hold
• Manual GATE button for sampling/tracking and advancing the sequence
• Manual RESET button and jack

SPECIFICATIONS

Width: 6 hp
Depth: 40 mm
Power: 4mA @ -12V 49mA @ 12V
