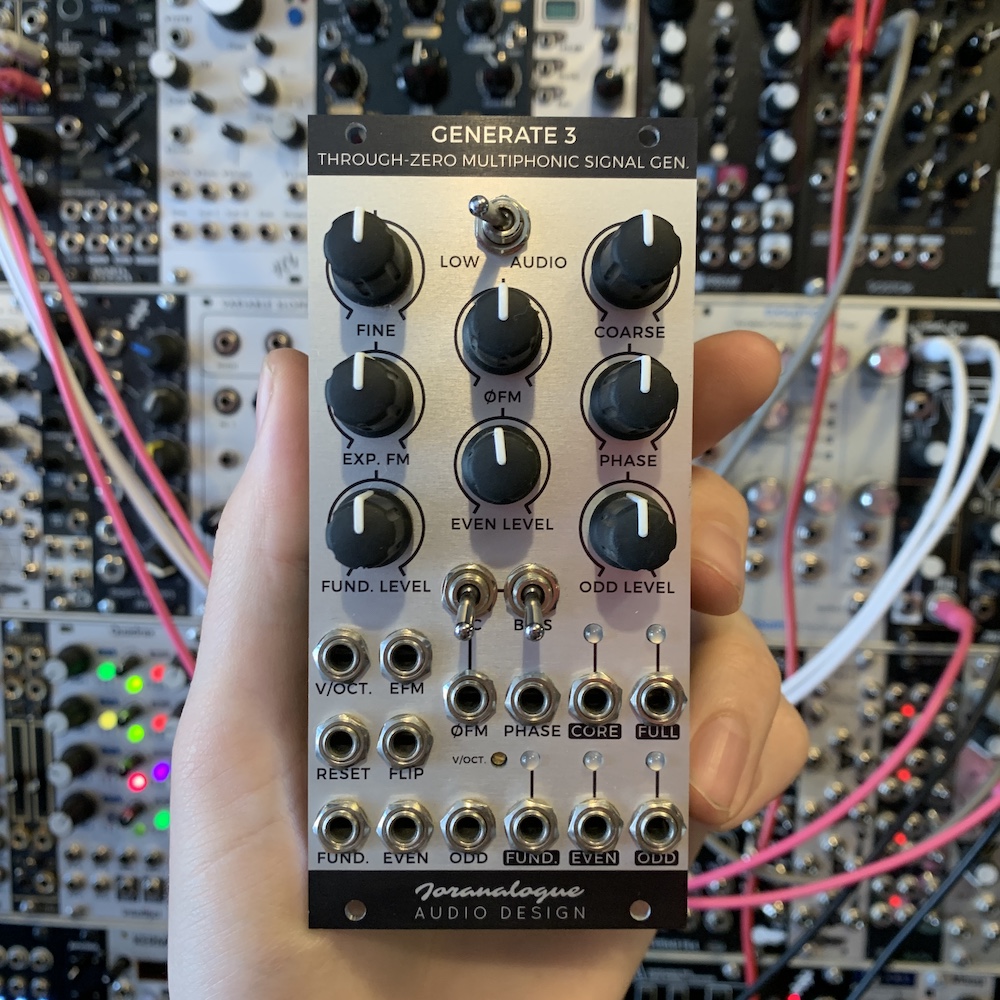

Joranalogue Generate 3 Eurorack Through-Zero Oscillator Module [Ex-Demo]

£289.00 inc. UK VAT
£279.00 inc. UK VAT

£232.50 ex. VAT

KLARNA Finance now available (£250-£1K)

In stock

(Bear in mind prices on the UK site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes due to us based on your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due on delivery)





Product Info


*Our much loved display model off to fresh pastures after a reshuffle of our in-store racks. In as new condition, and perfect working order. Comes with power cable and warranty.*

Any signal can be expressed in terms of a few parameters: frequency, phase, amplitude and timbre. It is through modulation of these aspects that synthesists create electronic sound. With Generate 3, it is now possible to create a signal and control all its parameters by through-zero modulation within a single 12 HP wide module.

Everything starts with the exceptionally precise triangle-core voltage controlled oscillator (VCO) at the module’s heart. Through-zero linear frequency modulation (FM) enables rich yet pitch-stable FM sounds, by allowing the oscillator to run backwards into ‘negative frequencies’.

The resultant triangle wave is then processed by the through-zero phase modulator, providing a total phase shift range of 900°. Phase modulation offers an interesting alternative for FM, as it enables deep FM-type tones without actually changing the oscillation frequency.

Features

  • High-stability precision analogue triangle-core VC(LF)O with fine and coarse tuning.
  • Waveform outputs: core (triangle), fundamental (sine), even (saw), odd and full (mix of timbral channels).
  • 1 volt/octave pitch tracking over the full audio range.
  • Exponential frequency modulation with polariser knob.
  • Through-zero linear frequency modulation with symmetry/modulation polariser knob, and AC-coupling and bias switches.
  • Through-zero phase modulation with 900° of shift range.
  • Through-zero amplitude modulation of three timbral channels: fundamental, even and odd harmonics.
  • Two simultaneous oscillator synchronisation types: reset (hard sync) and flip (soft sync).
  • LF mode for LFO use. Ultra-wide total frequency range: 2.8 mHz (6 minutes) to 27 kHz, a range of nearly 10,000,000:1!
  • High-quality components and assembly; designed and made in Belgium.

Specifications
Width: 12hp
Depth: 30mm
Power: +12: 130 mA, -12: 115 mA

Manufacturer product page here.
Product manual here.
