*Refurbished units in as new condition with original packing, power supply and full warranty*

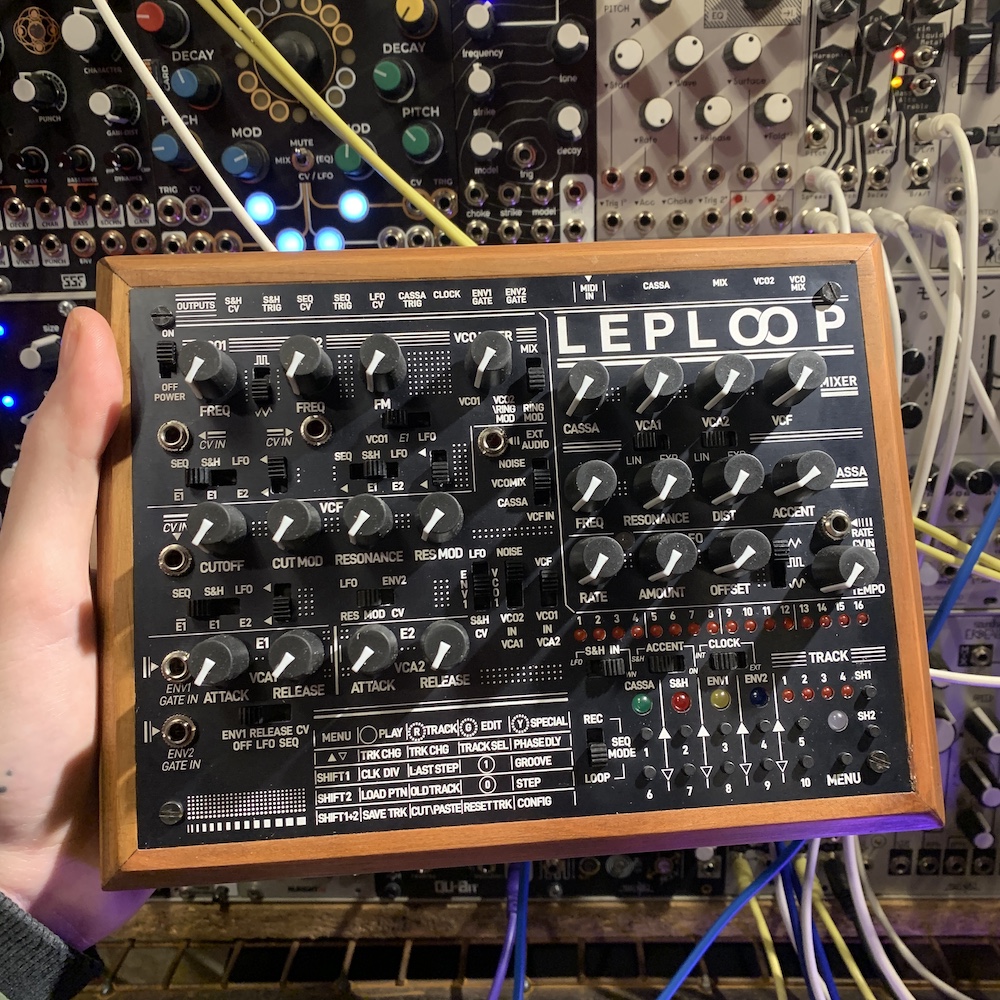

LepLoop was designed to be a minimalist electronic music live-performance groove-box, which can be used to create a variety of electronic musical styles. Small in nature but aggressive in sound, the user will be able to create a variety of analog timbres and beats. We are happy to present the third series after ten years of production, with some updates:
- Panel and Box design with Italian design studio IOSAGHINI
- General PCB Redesign
- New Metal Shaft Potentiometer
- New 15v Dc Power Supply
- OnOff Power Switch
- Envelope 12 Gate inout Connectors
- Envelope 1 release CV controllable with LFO or Sequencer
- VCA 12 Linear Exponential Switch
- LFO rate CV In
Features
- 1 OSCILLATOR (VCO1) TRIANGULAR/SQUARE WAVE
- 1 OSCILLATOR (VCO2) SAWTOOTH WAVE WITH RING MODULATOR AND FM MODULATION
- WHITE NOISE GENERATOR
- 24 dB/OCT DIODE LOW PASS FILTER
- KICK DRUM WITH DISTORSION AND TRIGGER MIXER
- 2 VCA’S
- 2 AR ENVELOPE GENERATORS
- 1 LFO
- 16 CAPACITORS ANALOG SEQUENCER PWM PROGRAMMABLE
- 4 TRACK DIGITAL RHYTHM SEQUENCER 64 STEP EACH TRACK
- 4 CHANNEL AUDIO MIXER
- MIDI INPUT (CLOCK AND NOTES)
- 5 CV OUT: S&H, SEQ, LFO,ENV1,ENV2
- 3 GATE OUT: S&H, SEQ, CASSA
- 2 GATE IN : ENV1, ENV2
- 4 CV IN: VCO1, VCO2, VCF CUTOFF, LFO RATE
- 1 AUDIO IN (VCF)
- 4 AUDIO OUT: MIXER, CASSA, VCO2, VCO MIX
- 1 CLOCK OUTPUT: CLOCK 24, MINI JACK MIDI STARTSTOP TYPEC TS MONO
- EEPROM MEMORY, 16 BANKS, 10 PATTERN EACH, 160 PATTERN TOTAL
- 15V DC, 500 MA, TIP + CENTRAL ,POWER SUPPLY
