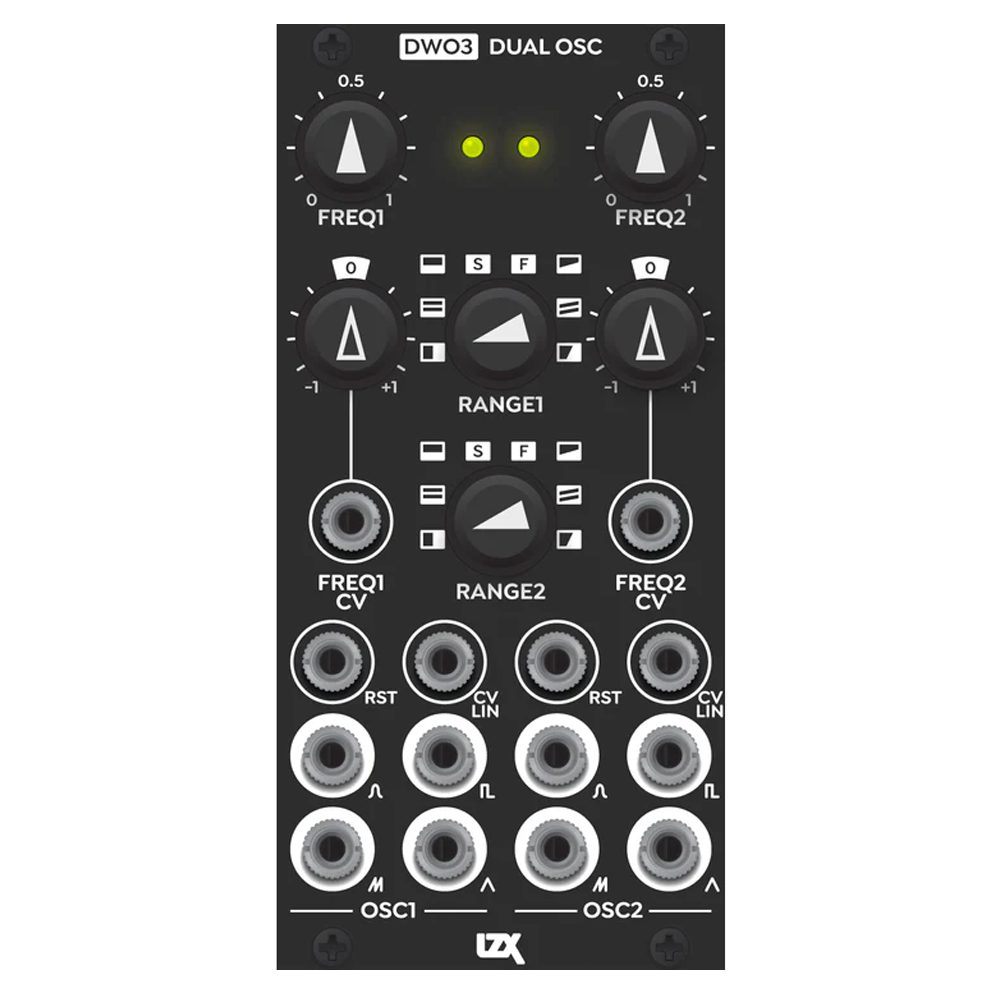

LZX Industries DWO3 Euroack Dual Video Oscillator Module

DWO3 Dual Oscillator is a dual utility VCO equally at home as a video pattern source as it is as a provider of motion and movement.

Features

• Two identical discrete analogue triangle core VCOs with frequencies ranging from 2MHz down to several seconds
• Classic wave shapes for video synthesis patternmaking: Square, Sine, Parabola, Double Ramp, Triangle
• Eight frequency range / video sync modes: Locked Horizontal, Locked Upper Vertical, Locked Lower Vertical, Seconds, Frames, Free Lower Vertical, Free Upper Vertical, Free Horizontal
• Exponential CV input covers a 100:1 tuning ratio for each frequency range
• External clock inputs can be used to reset the phase while in locked ranges, or as a gated reset in unlocked ranges

LZX Gen3 Design Standards

• Long lifespan pots, jacks and mechanical switches
• Active switching and gain control of the entire signal path
• Toggle switches latched to vertical refresh
• Integrated ultra low noise power supplies

Specifications

• Width: 12hp
• Depth: 42mm
• Power: TBC
