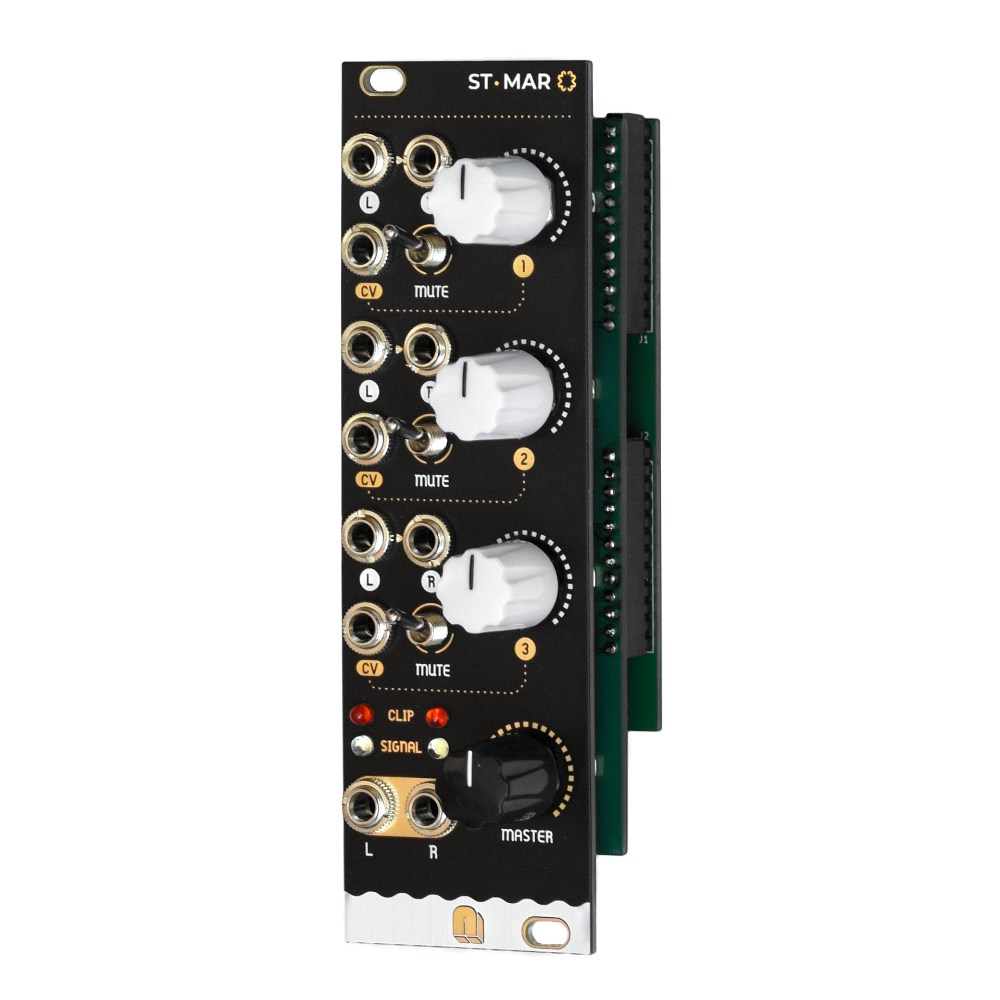

ST·MAR is a 3-channel Stereo Mixer with individual and master volume controls, CV modulation and mute switches.
All the basics to blend your stereo signals in only 8HP.
The Mute Function allows you to temporarily disable the audio output of the corresponding channel. You can quickly mute a track or instrument to focus on other elements of the mix.
Modulate the volume of each audio source using external control signals, such as envelope generators or sequencers, opening up a world of expressive and dynamic sonic manipulations.
Specs:
- Dimensions 8HP – 40×128,5mm
- Current 50 mA +12V / 52 mA -12V / 0 mA +5V
- Input & Output Signals ±10V
- Impedance Input 47k – Output 10k
- Materials PCB and Panel – FR4 1,6mm
- Depth 35mm – Skiff friendly
Manufacturer Product Page HERE
