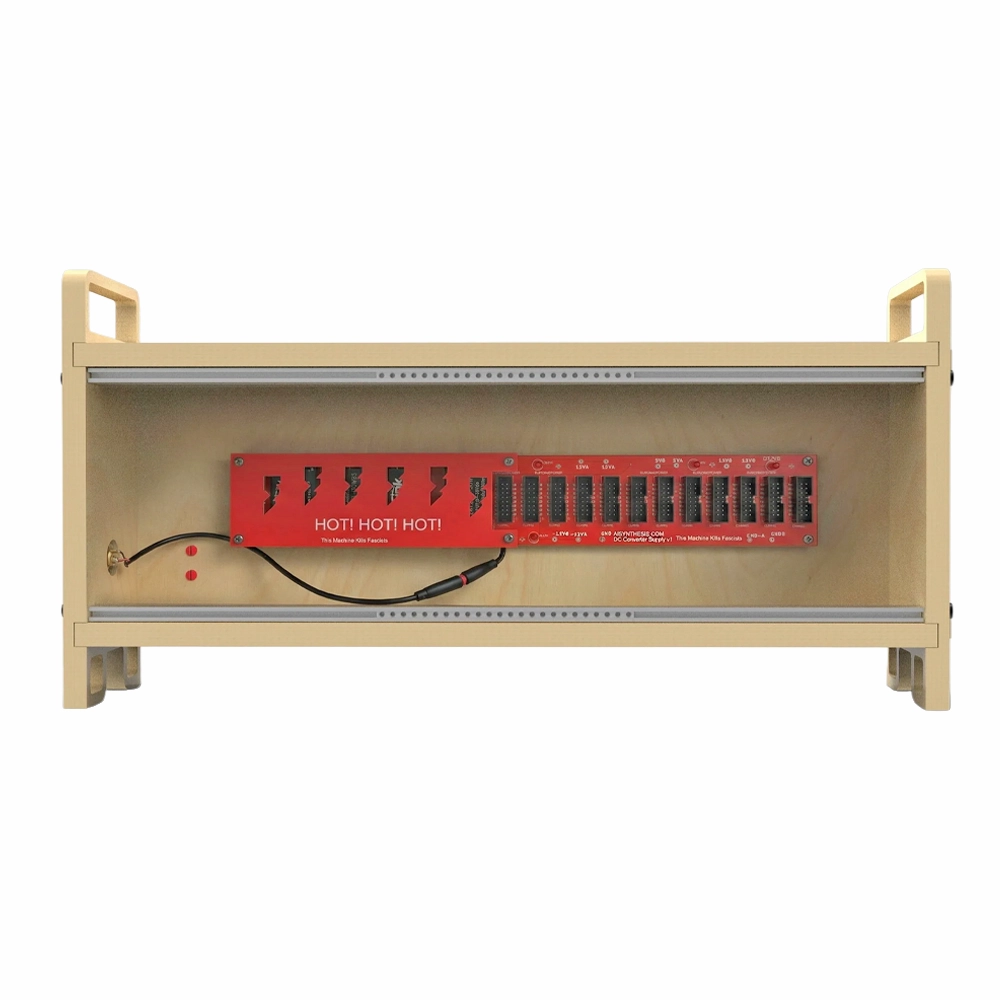

The n-1 case is a great way to start a modular system: an affordable, DIY case solution ready to go with only a few minutes of assembly. This comes bundled with the AI Synthesis Eurorack High Power Supply, a low-noise solution for powering large, power hungry systems. The Power Supply supplies a total of 5 AMPs (5,000mA) of +12v power, 2.5 Amps (2,500mA) of -12V power, Ground, and 400mA of +5V power to your modules via 12 shrouded connectors, and multiple chain points to other distribution boards. Four LEDs indicate status of the four power rails, and the Power Brick is included. The Eurorack High Power Supply uses super quiet DC to DC converters to turn one powerful DC brick into four reliable, quiet, power rails.
Case Features
- Easy-to-assemble DIY Eurorack case solution
- Includes all parts needed to build an 84hp Eurorack enclosure
- Includes M3 threaded inserts
- Sturdy Wooden Case with carry handles
Power Specs
- +12V A: 2.5 Amps
- +12V B: 2.5 Amps
- -12v: 2.5 Amps
- +5V: 400mA
- Headers 1-6 Draw their +12V from +12VA, and Headers 7-12 draw their +12V from +12VB.
