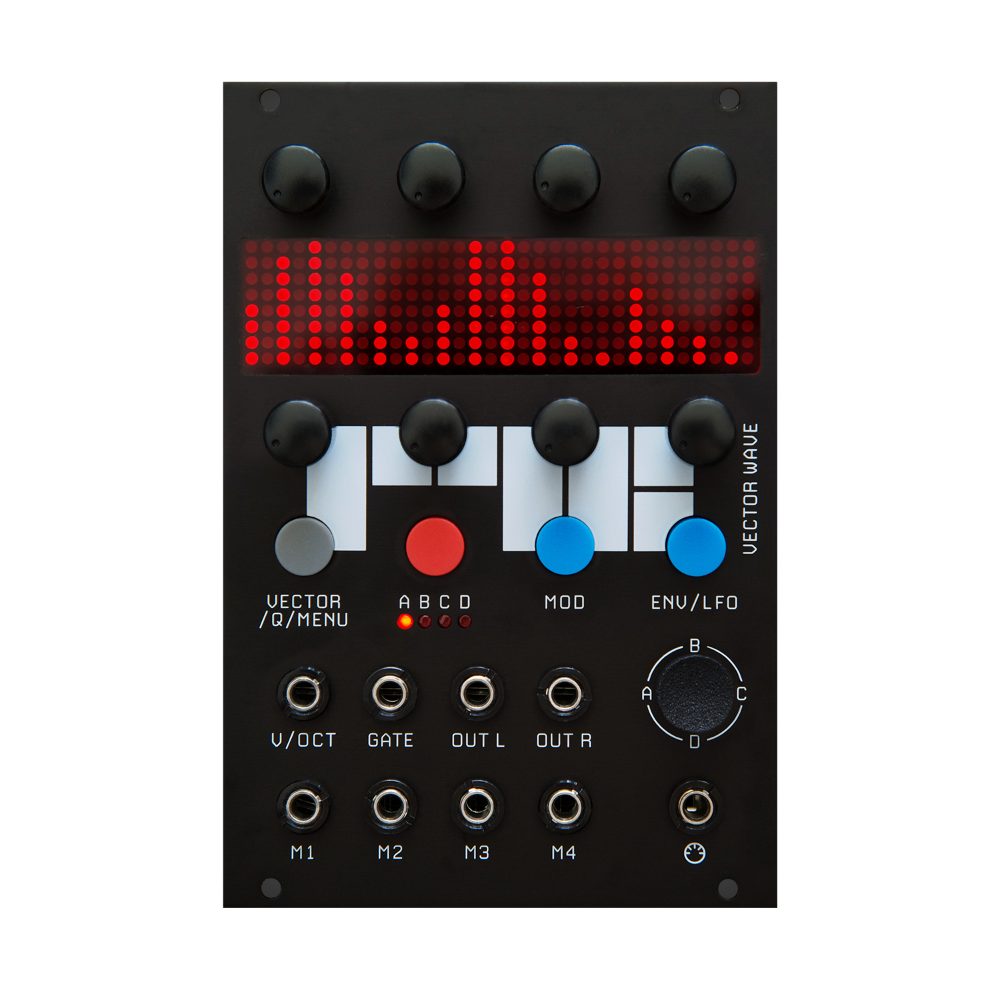

RYK Modular Vector Wave Eurorack Oscillator Module

£395.00 inc. UK VAT

£329.17 ex. VAT

KLARNA Finance now available (£250-£1K)

Available on back-order

(Bear in mind prices on the site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes for your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due)






Product Info


Introducing the new Vector Wave from RYK Modular bringing together the awesome power of 16 oscillator FM, combined with Vector synthesis or true multi voice polyphony. The Vector Wave is a feature packed compact Eurorack module, which can be used as a stand alone synth-voice without the need for external VCA,ENV, LFOs etc.

Features

  • 16 oscillators, divided into 4 banks, oscillators can freely configured into series or parallel combinations for complex FM or additive synthesis.
  • A cute Vector Joystick for morphing between oscillator banks, for cool performance timbre sweeps and sonic movement.
  • Vectors can be recorded from the joystick and replayed from trigger sources, or animated from external or internal modulation sources.
  • Super cool retro Big-Pixel screen, ideal for nostalgia freaks or the visually impaired.
  • Wave Warping brings grit and aggression to the FM synthesis with oscillators continu- ously variable between Sine, Tri-ish Saw, Pulse waveforms.
  • Wave Folding for subtle to extreme sonic bending possibilites.
  • Two Envelope generators [ per voice in polyphonic modes ], and two LFOs with all controls assignable as modulation destinations.
  • Intuitive Modulation Slot patching from external and internal sources to be routed to any parameter within the Vector Wave.
  • 30 User Voice storage spaces for storing your synth masterpieces to internal memory, enabling you to impress your friends at a later date.
  • Three modes of oscillator bank allocation Monophonic Vector, and Polyphonic Voice, and Multitimbral Polyphonic.
  • MIDI input for a spaghetti-free Polyphonic setup, velocity, aftertouch and MIDI CCs avail- able as modulation sources.
  • Slim but handsome Expander Module also available that adds 3 more V/oct and Gate inputs, for maximum mutli-voice multitimbral melodious mayhem!
  • And a secret hidden retro video game . . .

Specifications

  • Width: 17hp
  • Depth: 25mm
  • Power: +60mA / -5mA

Manufacturer product page here.
Product manual here.
