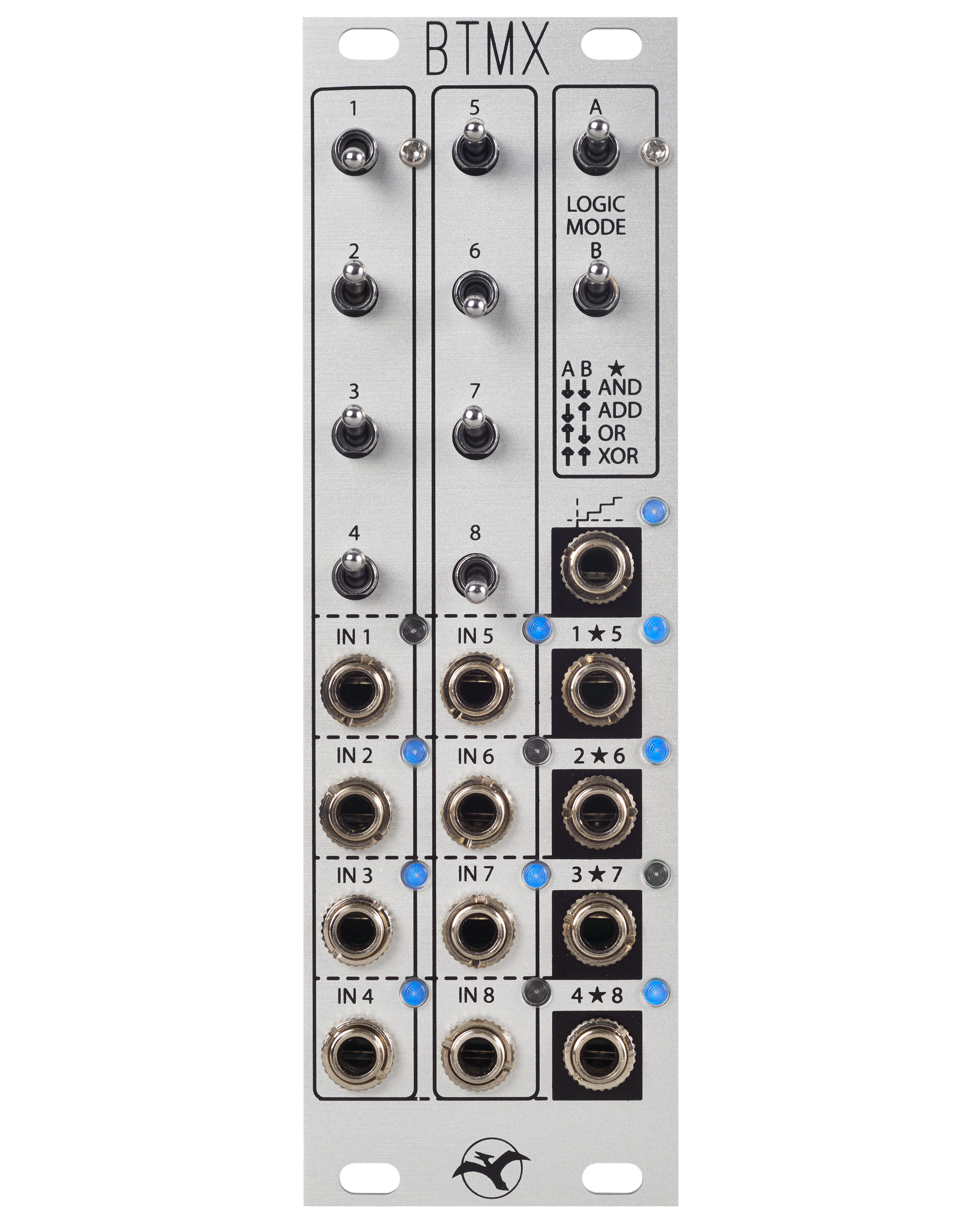

BTMX (BitMix) gives hands on control over logic and rhythmic gate signals with a switch for every input and 4 different logic functions.
It is a 4 channel selectable logic function module, with each channel having two inputs. All channels share the same logic function and the gate outs are summed with binary weights to create a stepped voltage to generate melodic or modulation signals from the outputs.
It pairs well with the Nibbler, other 4 bit logic modules, or any modules that generates gates (such as clock dividers and sequencers) and can also be used at audio rates.
Features
- 8 switched inputs
- 4 dual input logic functions (AND, OR, ADD, XOR)
- 4 gate outputs
- 1 stepped output
- LED indication for every input and output
- Works at LFO and audio rate
Specifications
Width: 8hp
Depth: 35mm
Power: +26mA, -10mA
