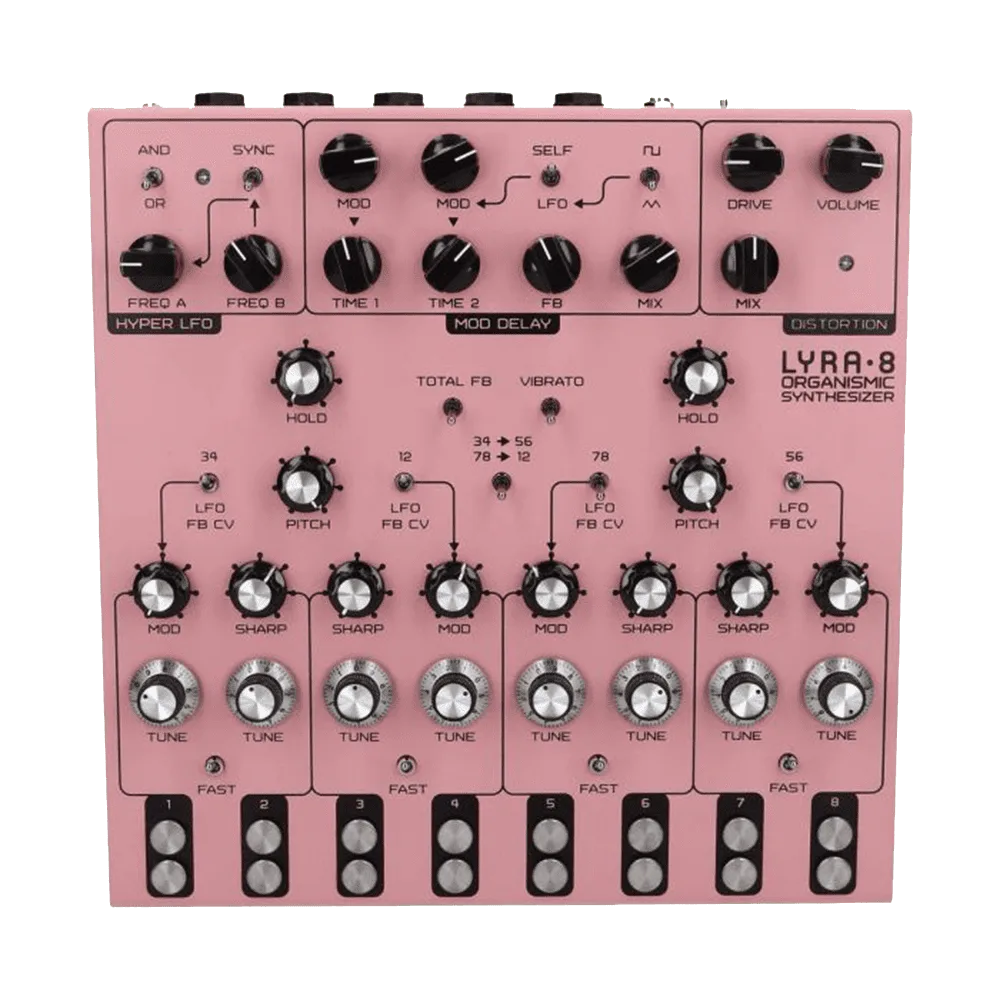

Soma Laboratory Lyra-8 Organismic Analog Synthesizer (Pink)

£649.00

KLARNA Finance now available (£250-£1K)

In stock (can be backordered)

Price Match

Seen it Cheaper? Email Us and we will get back to you. Full details here

(Bear in mind when purchasing from the EU you are viewing Ex-VAT prices in the UK. VAT, handling fees and potential import duties will be due)






Product Info


LYRA-8 is a unique organismic analogue synthesizer designed by Vlad Kreimer. “Organismic” means that LYRA uses some principles that lie in the base of living organisms. The way how LYRA’s modules interacting between each other and the behaviour of the instrument resembles a live conversation.

LYRA-8 is based on eight generators, which will be referred to as voices. Their design is not like a traditional subtractive synthesis VCO. Instead of having a linear or logarithmic dependency on control voltage, they resemble the tone generators in old electric organs. Hence the use of the term “voices” instead of “VCOs”. Lyra uses non-linearity a lot, and the voices are constructed in such a way that allows for non-linearity to express itself.

Specs:

  • Max output voltage: 2 v 0-to-peak
  • Output connector: mono 6.3 mm TS or TRS (balanced) jack
  • Output resistance: 100 Ohm
  • EXT IN: 1 v 0-to-peak
  • EXT IN connector: 6.3 mm TS jack
  • CV DELAY : unipolar, range of 0 to +5 volt
  • CV DELAY connector: 6.3 mm TS jack
  • CV VOICES: unipolar, range of 0 to +5 volt
  • CV VOICES connector: 6.3 mm TS jack
  • Power supply: stabilised, +12 V, 0.2 A, centre positive
  • Power Consumption: 2 watt
  • Dimensions: 266 x 266 x 62 mm
  • Weight (without power supply and packaging): 2.5 kg
