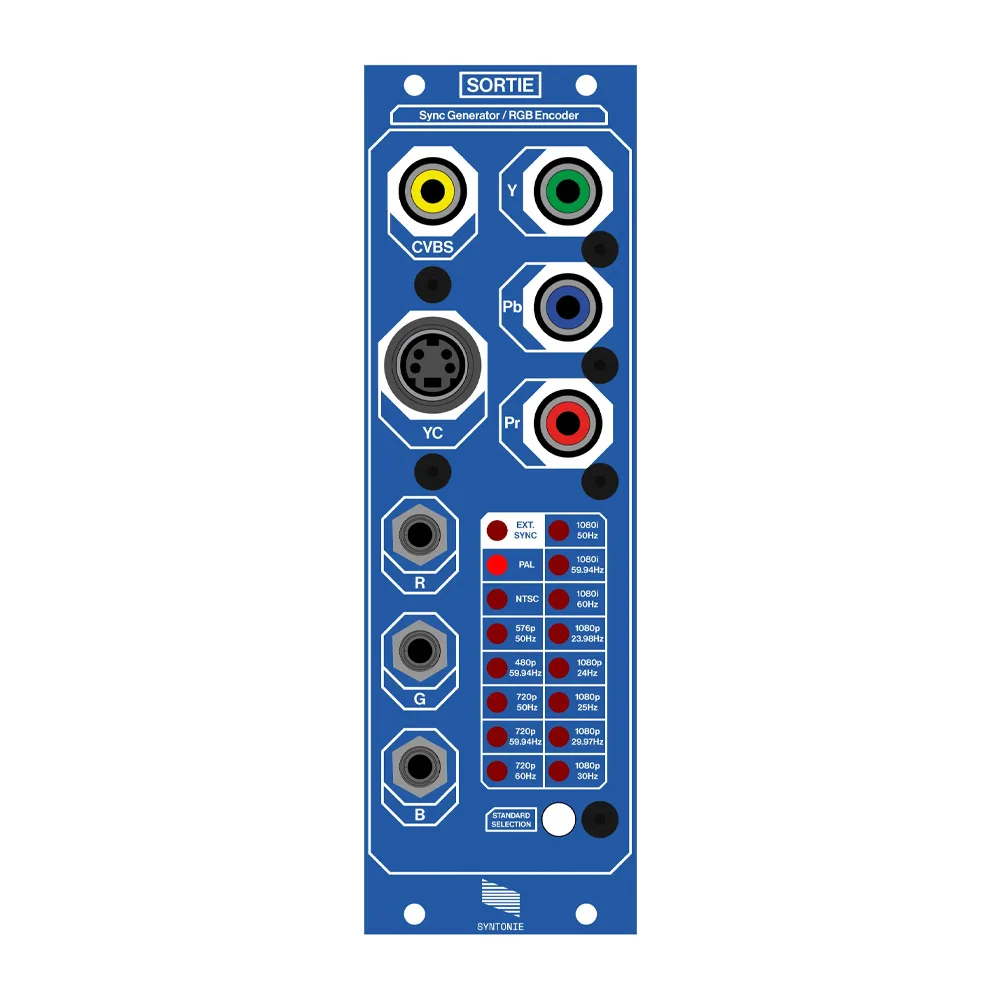

Sortie (french for output) is a RGB to Composite/S-video/Component encoder and sync generator supporting SD and HD. The internal standard is selected by the push of a button, with a dedicated LED indicator for each standard. When an external video signal is present at the sync input of the module, the standard will be selected automatically and the external sync LED indicator will light up.
RCA sync I/O at the rear of the module.
Supports the following standards:
- 576i50 (PAL)
- 480i59.94 (NTSC)
- 576p50
- 480p59.94
- 720p50
- 720p59.94
- 720p60
- 1080i50
- 1080i59.94
- 1080i60
- 1080p23.98
- 1080p24
- 1080p25
- 1080p29.97
- 1080p30
Specifications
- Width: 8hp
- Depth: 42mm
- Power: +12V 130mA / -12V 0mA
