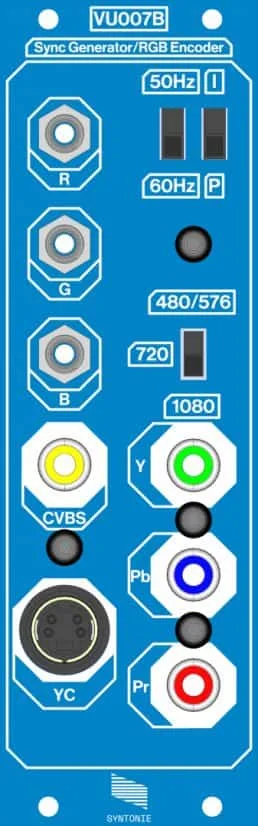

RGB to Composite/S-Video/Component encoder
Sync Generator capable of the following standards: 288p50/240p59.94/576i50/480i59.94/576p50/480p59.94/720p50/720p60/1080i50/1080i60/1080p25/1080p30 selected by the mean of 3 slide switches.
RCA sync I/O at the rear of the module
50mm deep (DIY) / 20mm deep (Assembled)
(Depth indicated is with power cable fitted but without RCA cable plugged in. Vertical RCA sockets are used at the rear of the module, with the tallest RCA we’ve tested, the total depth of the DIY version is around 70mm, smaller or right angle RCA cable is ideal for shallow eurorack cases.)
Inputs:
– 0-1V RGB, 499 ohm, jack
– 0-700mV Sync in, 75 ohm, RCA (rear)
Outputs:
– 0-700mV YPbPr/CVBS, 75 ohm, RCA
– 0-700mV S-Video, 75 ohm, Mini Din-4
– 0-700mV Sync out, 75 ohm, RCA (rear)
