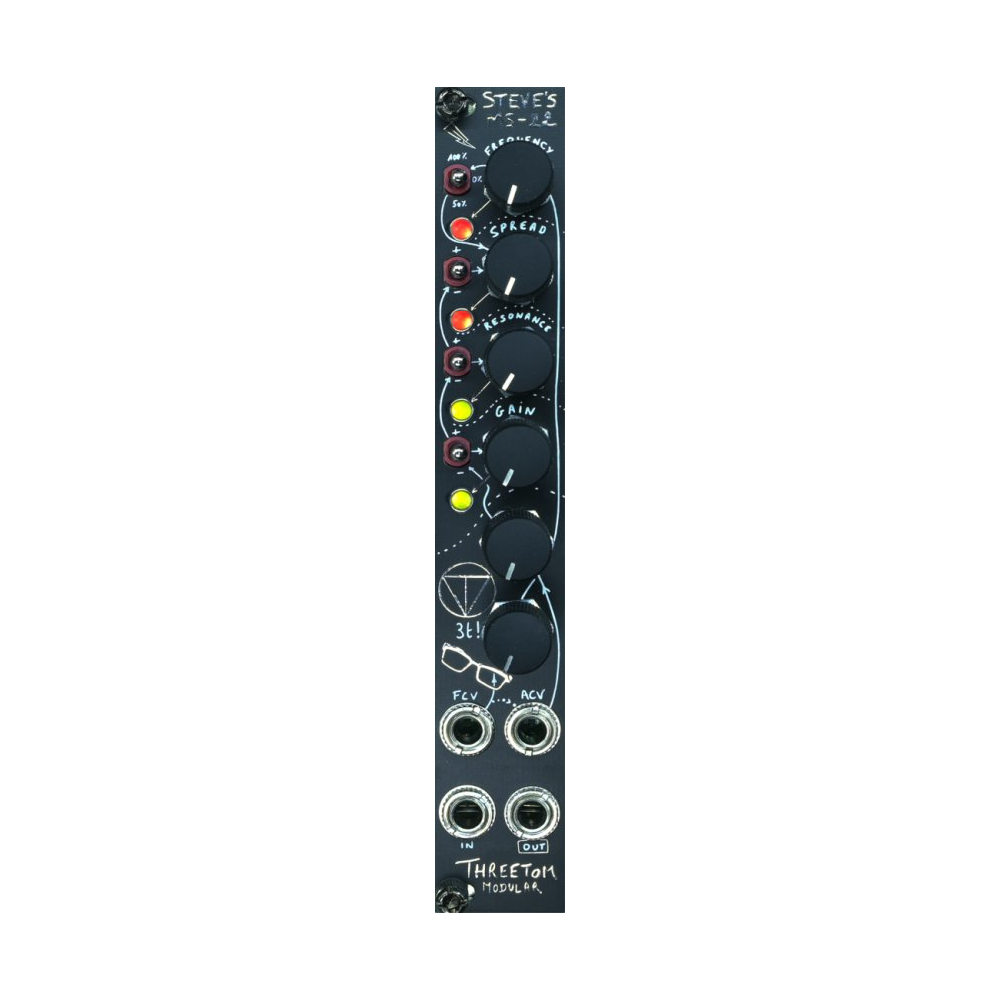

ThreeTom Modular Steve’s MS22 Eurorack Dual VC Filter Module

£239.00 inc. UK VAT

£199.17 ex. VAT

Out of stock

(Bear in mind prices on the site are shown including UK VAT. After entering your shipping address at checkout prices will update to show the correct taxes for your location. If purchasing internationally, VAT, handling fees, and import duties will potentially be due)






Product Info


The MS-22 is a dual voltage controlled filter, inspired by the classic Korg MS-20 filter, with an innovative modulation matrix and one of the highest function-to-hp ratios in the land of Eurorack. This module was inspired by many pleasant chats with tech journalist Steve O’Hear.

The MS-22’s is different from most MS-20 inspired filters as it contains two dedicated filter circuits (instead of one), one low-pass and the other a high-pass. These are configured to be in series, the low-pass going into the high-pass. This configuration allows a unique duophonic fighting resonance behaviour. The cutoff frequencies of both filters can be CV’ed. So, compared to most MS-20 clones out there, the MS-22 is twice the amount of filter condensed down into half the package (4HP).

Features

  • General
    • Dual VCF inspired by the Korg MS-20 OTA filter
    • Low-pass (12dB) into high-pass (6dB) configuration
    • Innovative modulation matrix allows CV control over all parameters
    • Cut-off frequencies can be linked, resulting in a band pass filter with controlable bandwidth
    • Bipolar monitoring LEDS for the LP, HP, resonance and gain CV signals
    • One of the best functionality-to-size ratios in Eurorack with a width of 4 HP and a depth of 45 mm
  • Connections
    • Filter input
    • Filter output
    • Frequency CV input (FCV)
    • Auxiliary CV input (ACV)
  • Controls
    • LP cut-off frequency (“frequency”)
    • HP cut-off frequency / BP bandwidth (“spread”)
    • Resonance : from mild to screamy
    • Gain : from warm to asymmetrical saturation
    • LP Frequency CV (FCV) attenuator
    • Auxiliary CV (ACV) attenuator
    • LP-HP link switch : 0%, 50% or 100%
    • Modulation Matrix switches, routing ACV to HP cut-off / spread, Gain and resonance : +ACV, off, or -ACV (inverted)
    • Calibration trimmers for the HP and LP filter are available from the side of the module.
  • Modulation
    • Designed to work with unipolar +5V or bipolar +-5V modulation sources
    • Will also take unipolar and bipolar 8 and 10V modulation signals, but this results in a smaller usable range on the ACV and FCV attenuators
    • Low frequency and audio rate modulation of all parameters
    • Bipolar monitoring LEDs (green: positive, red: negative) for all CV destinations (LP cut-off, HP cut-off / spread, resonance, gain)
  • Construction
    • 4 HP wide
    • 45 mm deep (skiff friendly)
    • High quality aluminum knobs with grippy surface
    • 2 mm thick matte black front panel with white and metallic print
    • A tasty 4-layer PCB sandwich, containing 350+ components
    • Recessed power connector, avoids your power cable from adding to the module depth
  • Protection
    • Reverse power protection
    • Buffered high impedance inputs
    • Output is protected by a 1K output resistor
  • Power consumption
    • +12V : 100mA max
    • -12V : 100mA max

Specifications

  • Width: 4hp
  • Depth: 45mm
  • Power: +100mA Max / -100mA Max

Manufacturer product page here.
Product manual here.
