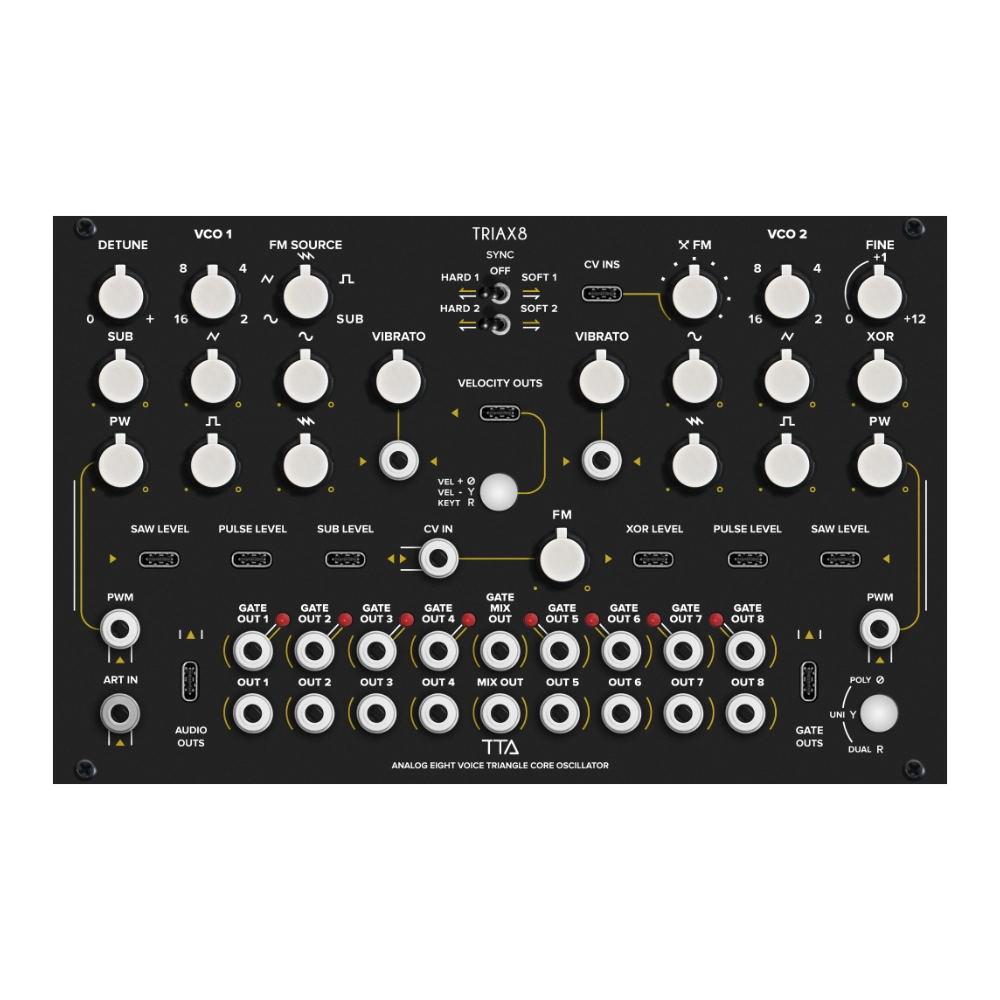

Triax8 is an 8-voice true polyphonic analog oscillator with an architecture of 16 analog oscillators arranged as two VCOs per voice. These VCOs are capable of producing up to 10 waveforms simultaneously, truly a monster!
The FM bus features a state of the art Through-Zero Linear FM technology that keeps the oscillators in tune even at high modulation depth, bringing the promise of FM theory into analog poly. The design features a built in system that learns the environmental parameters and the Eurorack case in order to adapt dynamically to ensure VCO stability and control over the beast.
Combining the modular nature of Triax8 with Polytip modulation patching and ART control allows Tiptop Audio’s polyphonic modular system to surpass the capabilities of typical fixed analog synthesizers both in sound and hands on control. Triax8 produce a huge tonal spectrum, from vintage to all new. Turn on those knobs and let the swarm of oscillators rattle the speakers!
Features
- Modular polyphonic oscillator
- 16 Analog VCOs
- 10 waveforms with dedicated mix knobs
- XOR waveform
- Sub oscillators on VCO1
- Through-Zero Linear FM that stays in tune
- ART note control with scalable high-resolution pitch bend (MPE-Completable)
- Cross-oscillator sync, hard and soft, with up to 9 combinations
- Polytip jacks for polyphonic patching and per voice modulation
- Eight Individual voice outs
- Eight Individual gate outs
- Mix Out for creating drones or powerful Unison sounds
- External inputs for vibrato and PWM
- Built in Voice manager
- Power: +12V 335mA / -12V 170mA
