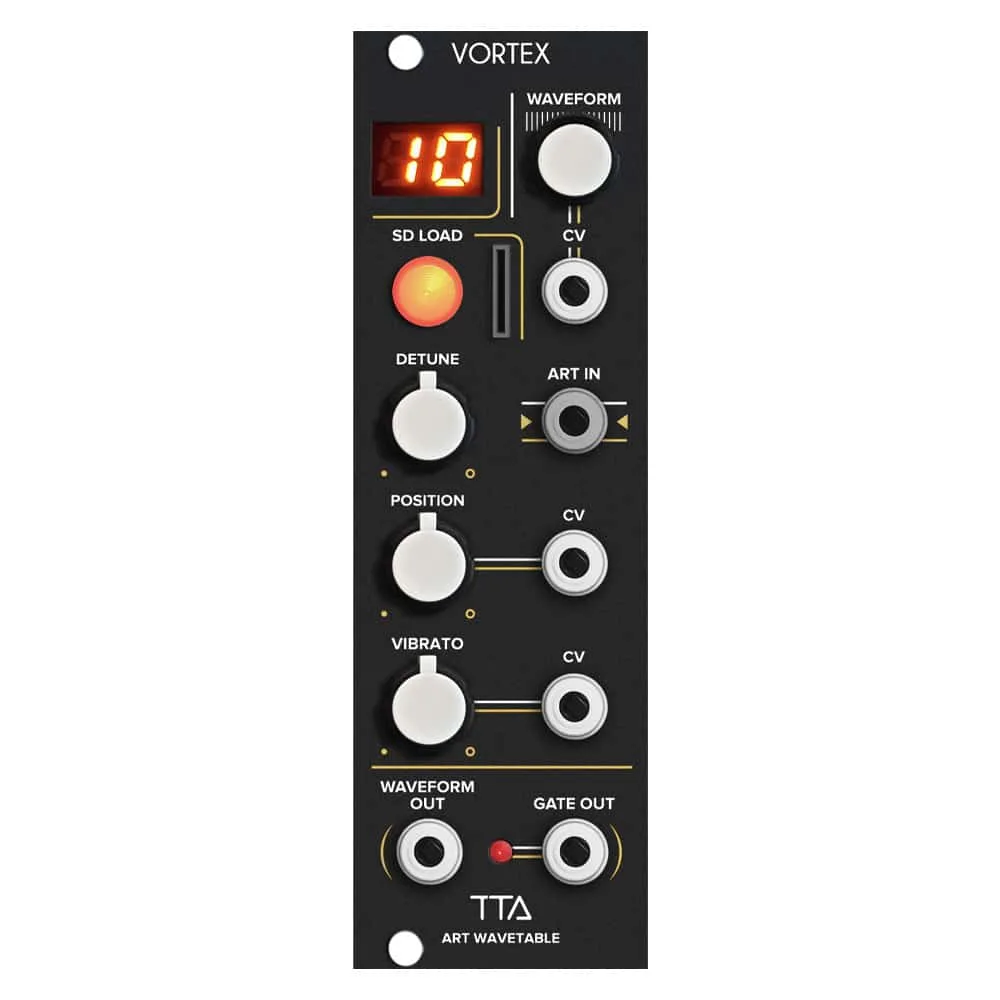

An ART wavetable dual oscillator mono voice source that can be used to build polyphonic patches and multi voice patches. It generates its harmonically rich sound using two 80s vintage D/A converters to feed your filters and effect processors. VORTEX comes loaded with dozens of wavetables, plus additional user wavetables can be loaded from the front panel SD card. A detune knob controls the second VCO and adds effects from deep phasing to a sub octave. The position knob and CV input selects waves in the tables and vibrato from LFOs to create FM. Like other ART sound generators a dedicated Gate output manages the voice envelope or any modulation synced to that voice. VORTEX is a great companion to the analog ATX1 and a must for digital synthesist enthusiasts.
Specifications
Width: 8hp
Depth: 40mm
Power: +80mA, -25mA
Manufacturer product page here.
Product manual here.
