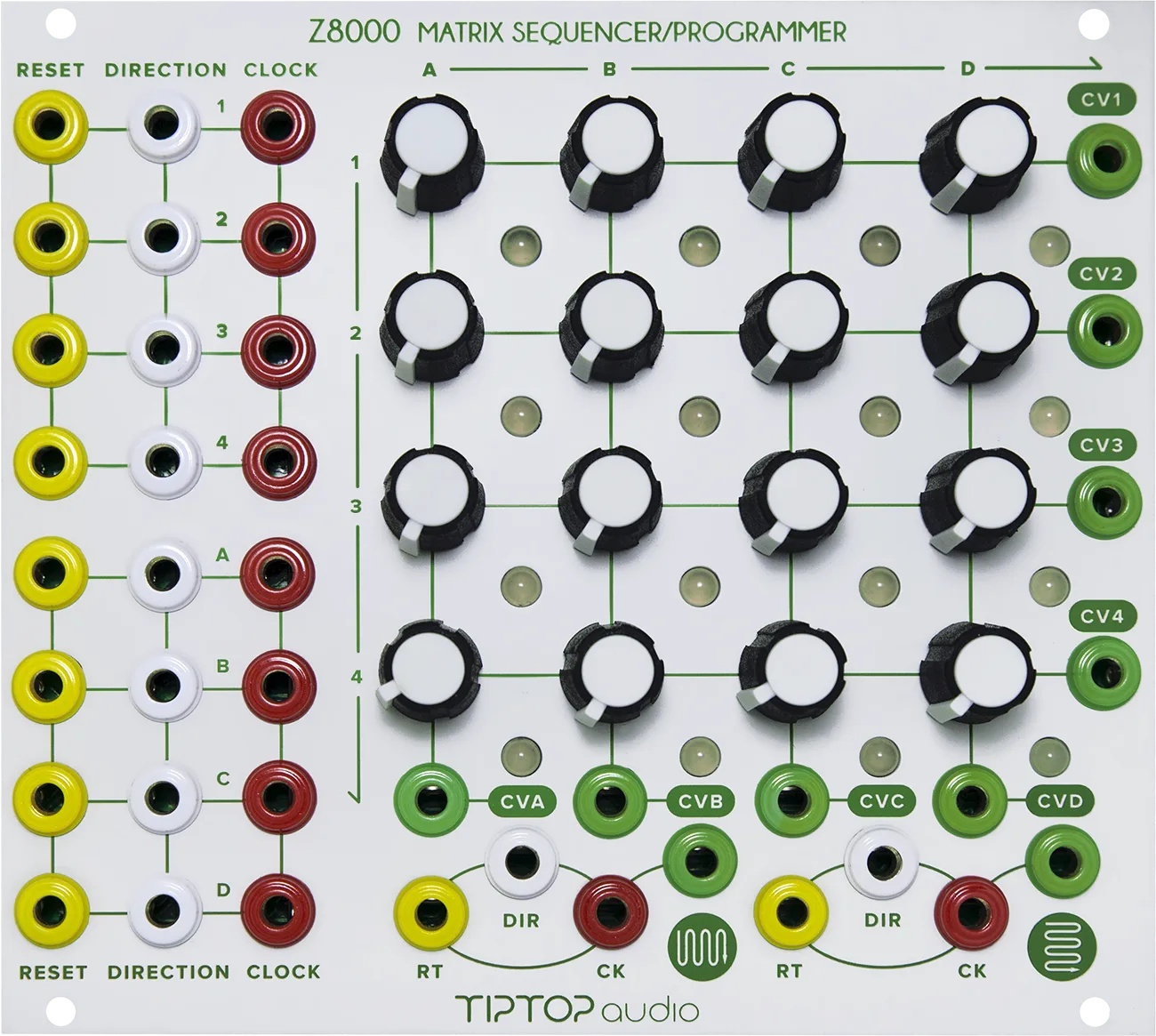

TipTop Audio Z8000 Matrix Sequencer Eurorack Module

The Z8000 can simultaneously modulate up to 10 CV parameters poly-rhythmically, with unprecedented motion complexity. One knob affects all 10 CV outputs! Imagine modifying 10 parameters from one knob. With its 30 gate and clock inputs and 10 CV outputs one can only imagine the possibilities, and all clock inputs can even be driven at audio rates! The Z8000 pairs well with the Trigger Riot and Circadian Rhythms and using it with the QuantiZer extends its capabilities as a high-precision 1V/Oct note sequencer.

Introduced in 2017, a new version of the Z8000 maintains the original circuitry but adds output range adjustment switches on the back and Tiptop’s new colored look, which helps highlight the sections, on the front.

Specifications
Width: 28hp
Depth: 15mm
Power: +12V 70ma / -12V 10ma

Manufacturer product page here.
Product manual here.
