UDO DMNO 8 Voice Polyphonic Binaural Analog-Hybrid Desktop Synthesizer (White)

The UDO DMNO. Play Seriously.

DMNO is an 8-voice, 2-part multi-timbral powerhouse with a highly flexible and dynamic signal architecture. It features two fully independent 4-voice analog-hybrid synthesizers, each equipped with our new Dynamic Multi-Core Stereo VCF. With its eight creative Play Modes, DMNO unlocks dynamic interactions between the two timbres at the touch of a single control, while its flexible analog and digital audio connectivity makes it a truly expansive and immediate sound design sandbox.

Overview

• 8 voice polyphonic, with 4 ‘super’ voices when in Binaural mode. Binaural mode gives each channel (ear) a full synthesiser voice with independent detuning and modulation, creating an expansive, rich and texturally wide sound.
• 2-Part Multitimbral, comprising 2 independent hybrid synthesizers, each with its own dedicated set of front-panel controls.

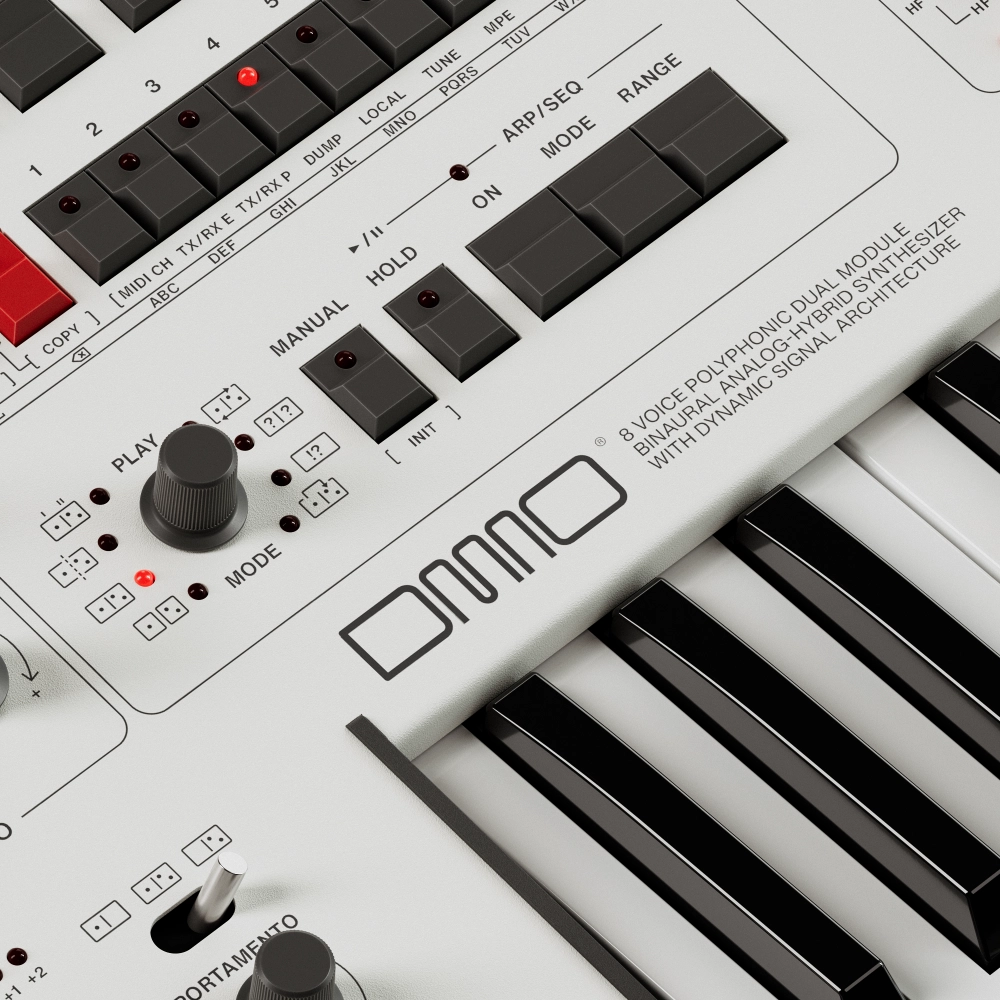

• 8 selectable ‘Play Modes’ that immediately reconfigure DMNO’s signal flow, redefining how its two independent synth engines interact with one another.
• Dynamic multi-core stereo analog VCF with parallel, series and stereo connection modes — featuring multiple filter modes for each connection type.
• Hybrid architecture: FPGA-based high-resolution digital oscillators paired with an analog signal path and a high-quality DSP effects engine.
• 44-key FATAR keybed with aftertouch.
• 2-in 2-out 24-bit USB digital audio interface.
• Stereo external audio input with a variable-gain preamplifier, gate level detector, and envelope-follower input to the modulation matrix.
• Stereo auxiliary output that can be assigned to either DMNO 1/2, USB digital audio from the connected host, or the effects send bus.
• Two individual user-assignable CV & gate/clock outputs via 1/8”/3.5mm sockets.
• High quality long-lasting electroluminescent glass vacuum fluorescent display (VFD) with dedicated rotary controls. Designed for immediacy with no deep menus and limited ‘hidden’ controls.
• 32-bit DSP digital effects chain including delay, reverb, EQ, overdrive distortion and chorus.
• Onboard 64-step sequencer with intuitive control via onboard display.

Size and Weight

• Instrument dimensions (mm): 780W × 380L × 115H
• Instrument weight: 8.5kg
• Packaged dimensions (mm): 900W × 510L × 200H
• Packaged weight: 11.8kg

MADE HERE IN BRISTOL
