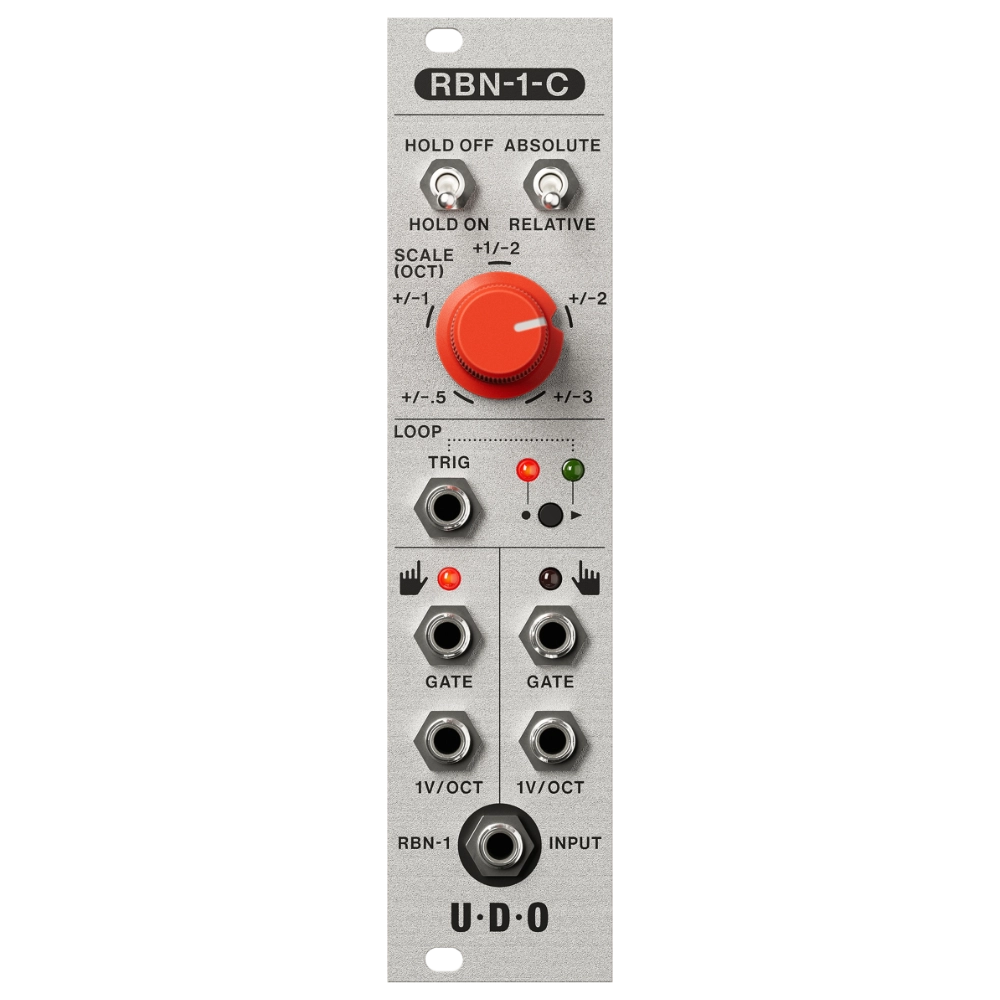

RBN-1-C is a powerful Eurorack interface designed specifically for the RBN-1 Performance Ribbon Controller. Connect your expressive RBN-1 ribbon to any modular rig and make use of a host of flexible performance features, including a live looper with trig input, ribbon mode controls and two-touch CV/Gate outputs.

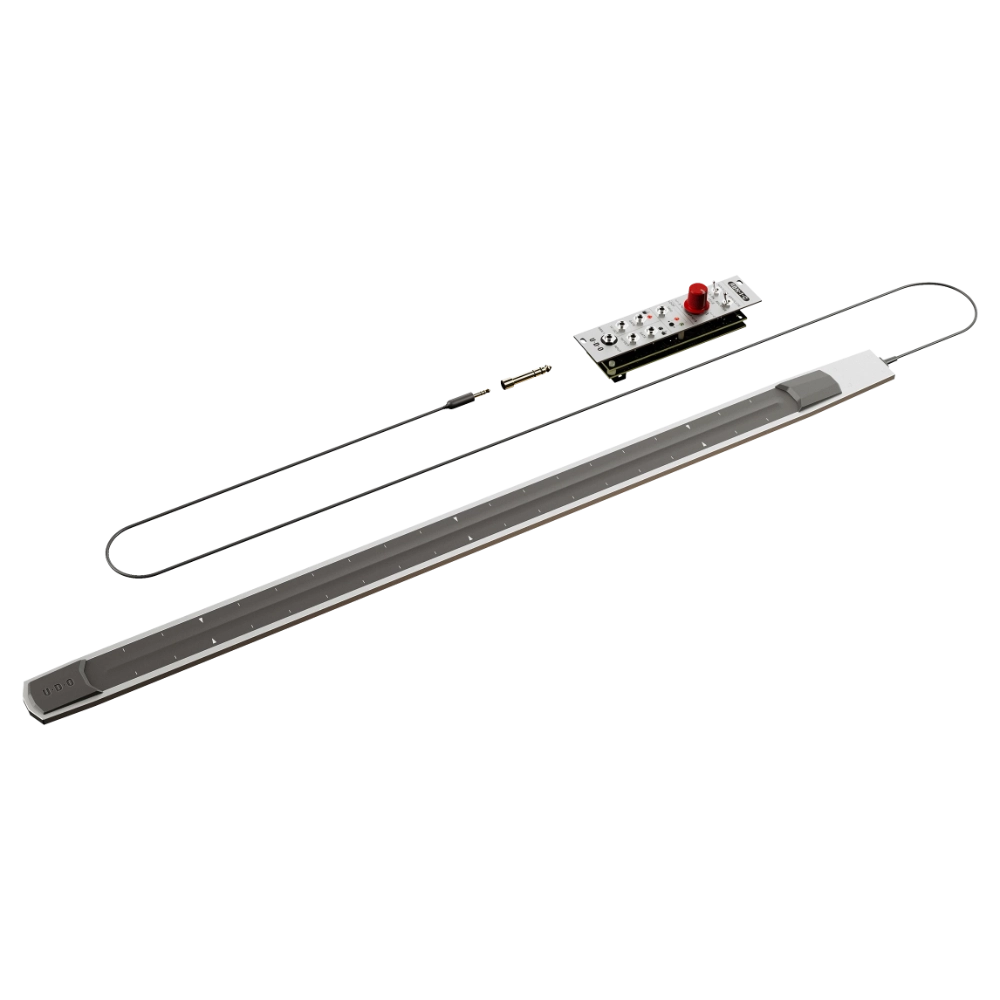

RBN-1-C is designed specifically to be paired with the RBN-1 Performance Ribbon Controller. Easily attach and detach the RBN-1 to any metal surface using its strong magnets and non-slip base, ensuring the ribbon stays securely in place during use.
Custom Ribbon Behaviour
Flexible behaviour controls allow you to fine-tune the touch response and octave scaling of the ribbon input to fit your specific setup or playing style.
Live Looper
The built in looper allows you to quickly and easily record and loop ribbon expressions on the fly. Use the optional trig input to trigger playback loops and keep your ribbon jams synced up.
Two-Touch Outputs
Send two simultaneous CV & gate outputs from the two output sections, allowing for two handed expressions using the ribbon. For example, modulate an oscillator pitch with your left hand whilst modulating a filter cutoff with your right!
Specifications
- Width: 6hp
- Depth: 35mm
- Power: +12V 25mA / -12V 15
- Connections: 3.5mm TS jacks for CV/Gate outputs, 3.5mm TS jack for Loop Trigger Input (0/5V logic)
- Outputs: Dual 1V/Oct CV outputs (approx. +/-8mV error), Dual Gate outputs (0/5V, active high)
