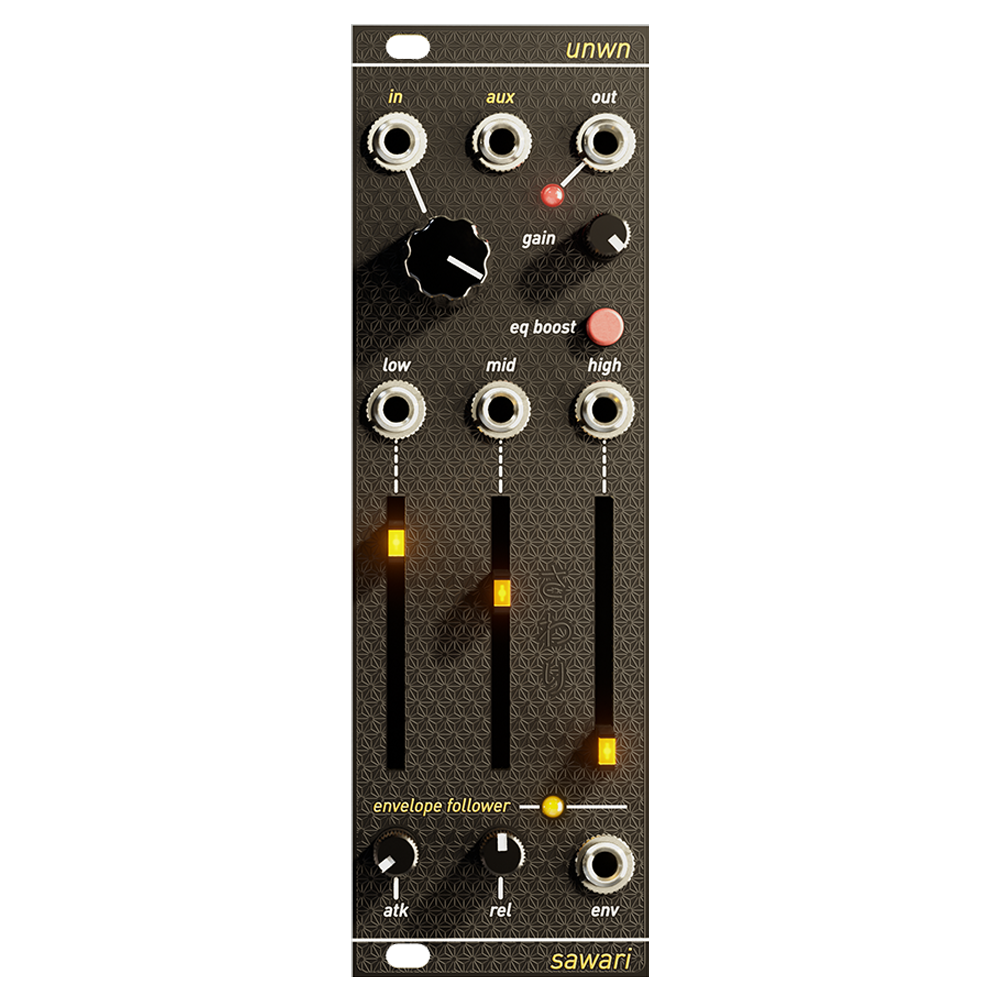

sawari (???) – the buzzing sound of a stringed instrument. On the shamisen it is produced by the first string, purposely set lower than the others to give the instrument his characteristic tone. Based on the Mutable Instruments Ears, with more than a few added extras.
Features
- high impedance (1M) preamplifier, up to 40dB gain
- built-in contact microphone
- 3-band EQ, with tunable low and high shelf frequencies
- selectable gain range, +/-6dB or +/-16dB
- separate outs for each band
- envelope follower with attack and release time control
- pre or post eq selectable by a jumper on the back
Specifications
Width: 8hp
Depth: 25mm
Power: 35 mA +12V, 35 mA -12V
