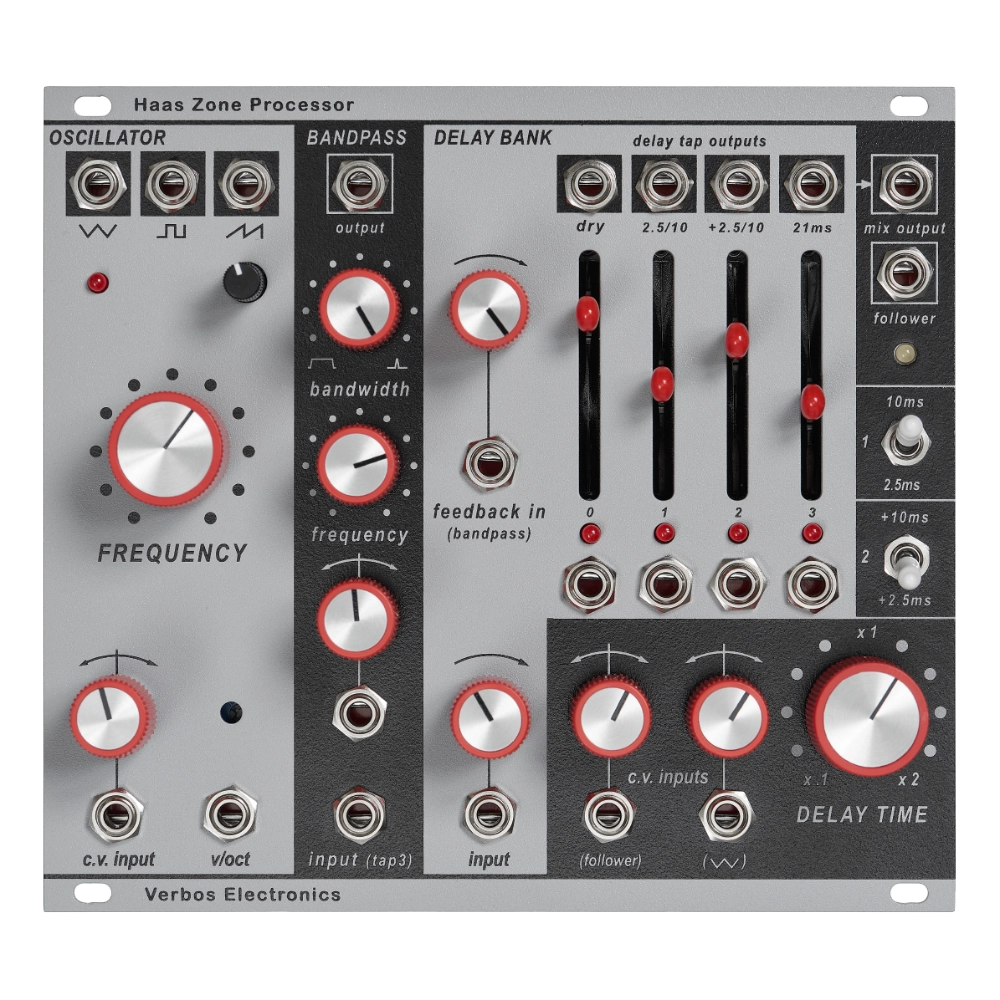

The Haas Zone Processor is an analog-clocked digital multitap delay module focused on short (1-42ms) delay effects like flanging, chorus and ADT. With its internal analog VCO and filter it can also go into waveshaping, filtering and function as an independent voice.
Features
- Use Cases: Short delays / chorus and flanging / audio-rate effects / waveshaping / filtering / voice module
- Influences: Vintage studio processors like the Marshall Time Modulator
- Delay: Digital multi-tap with three outputs from 1-42ms / internal tap mixer
- VCO: Three different analog waveform outputs / LFO and audio rate
- Filter: Analog bandpass filter with adjustable freq and bandwidth
- Modulation: internal VCO / env follower / CV inputs for delay, VCO and filter
Power: +12V 110mA / -12V 55mA
